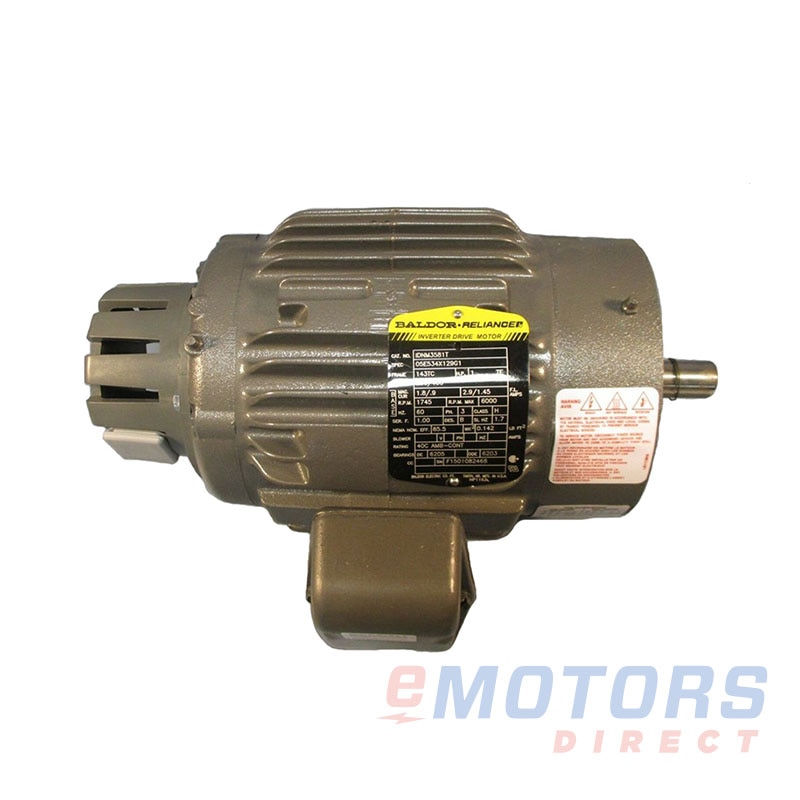

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor IDVSNM3587T

Baldor · V*S Master, Inverter Duty, TENV
2 HP 1755 145TC TENV 230V|460V Vector/Inverter Duty Motors
Catalog Number: IDVSNM3587T
HP
2
RPM
1800
Voltage
230V,460V
Frame
145TC
Phase
3
Enclosure
TENV
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

The Baldor V*S Master® Inverter Duty motor with a TENV enclosure is engineered for high-performance, variable-speed applications requiring consistent torque. It supports a 1000:1 constant torque ratio and is available in standard NEMA frame sizes. The motor includes provisions for encoder mounting, making it adaptable for precision feedback requirements. It’s also equipped with three thermostats—one per phase—for reliable thermal protection. Designed for use in demanding environments, this motor is well-suited for centrifugal pumps, fans, extruders, conveyors, cranes, hoists, winders, and applications involving web processing, process control, or test stands.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: V*S Master, Inverter Duty, TENV (36)

IDNM35341/31800|6000230V, 460V56C $758.10
IDVSNM35341/31800|6000230V, 460V56C $758.10
IDNM35381/21800|6000230V, 460V56C $884.94
IDVSNM35381/21800|6000230V, 460V56C $884.94
IDVSNM3542-53/41765575V56C $986.82
IDNM35423/41800|6000230V, 460V56C $986.82
IDVSNM35423/41800|6000230V, 460V56C $986.82
IDVSNM3546-511775575V56C $1,603.07
IDVSNM354611760230V, 460V56C $1,603.07
IDVSNM3581T-511745575V143TC $2,011.58
IDNM3581T11800|6000230V, 460V143TC $2,011.58
IDVSNM3581T11800|6000230V, 460V143TC $2,011.58
IDVSNM3584T-51 1/21750575V145TC $2,221.33
IDNM3584T1 1/21800|6000230V, 460V145TC $2,221.33
IDVSNM3584T1 1/21800|6000230V, 460V143TC $2,221.33
IDVSNM3587T-521755575V145TC $2,319.20
IDNM3587T21800|6000230V, 460V145TC $2,319.20
IDVSNM3587T21800|6000230V, 460V145TC $2,319.20
IDNM3669T21800|6000230V, 460V182TC $2,691.76
IDNM3661T31800|6000230V, 460V184TC $3,039.35
IDVSNM3661T31800|2700230V, 460V182TC $3,039.35
IDVSNM3582T11150230V, 460V145TC $3,115.26
IDNM3665T-551750575V184TC $3,388.92
IDVSNM3665T51800|2700230V, 460V184TC $3,388.92
IDNM3665T51800|6000230V, 460V184TC $3,388.92
IDNM3767T51800|6000230V, 460V213TC $3,777.46
IDNM3770T7 1/21800|6000230V, 460V213TC $3,922.29
IDVSNM2237T-57 1/21770575V215TC $3,928.26
IDVSNM2237T7 1/21800|2700230V, 460V215TC $3,928.26
IDNM2237T7 1/21800|5000230V, 460V254TC $4,698.35
IDNM2238T101800|5000230V, 460V256TC $5,388.52
IDVSNM2238T101800|2700230V, 460V254TC $5,388.52
IDVSM2334T-5201770575V256TC $6,282.44
IDVSNM2333T-5151770575V256TC $6,480.21
IDNM2333T151800|5000230V, 460V254TC $6,480.21
IDNM2334T201800|5000230V, 460V284T $6,996.57

V*S Master, Inverter Duty, TENV

Features

  • Available in TENV, TEFC, and TEBC enclosures with 10001 constant torque capability
  • Encoder mounting provisions included
  • Equipped with three thermostats (one per phase) for temperature monitoring
  • Offered in standard NEMA frame sizes

Applications

  • Ideal for centrifugal pumps and fans
  • Suitable for extruders, conveyors, cranes, hoists, and winding equipment
  • Used in web processing, industrial control systems, and test stand operations
Electrical Data
Rated Motor Output Power
2 HP
Rated Motor Speed
1800, 6000 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
2.7 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
L
Nominal Efficiency
-
Nominal Power Factor
76
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145TC
Enclosure
TENV
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
63lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
14.65"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
3-Year
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
  • CAD 3DRegister or log in to download
