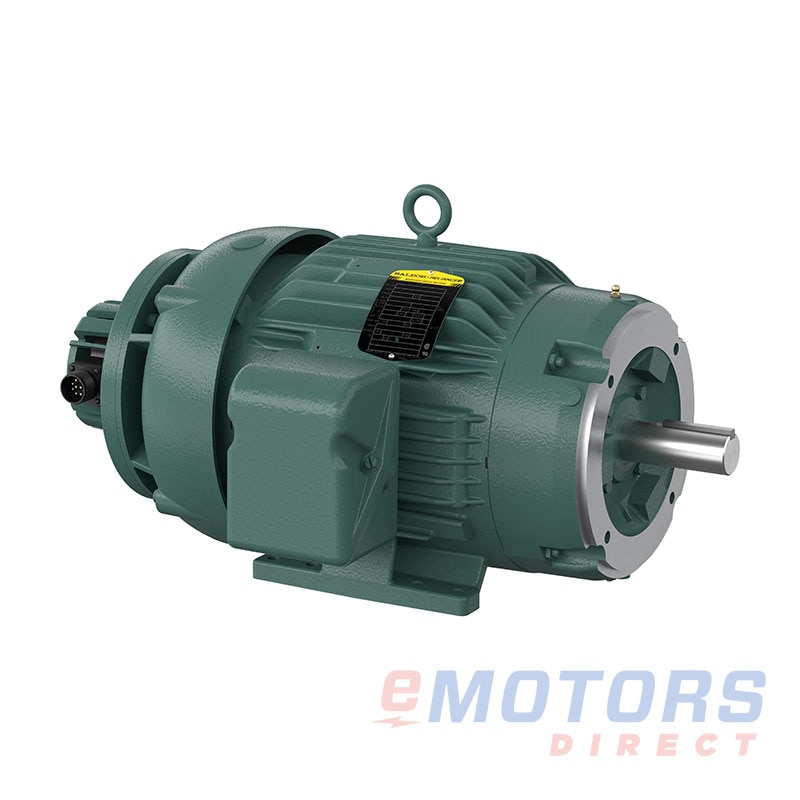

Baldor IDVSM3774T-5

Baldor · V*S Master, Inverter Duty, TEFC
10 HP 1760 215TC TEFC 575V Vector/Inverter Duty Motors
Catalog Number: IDVSM3774T-5
HP
10
RPM
1800
Voltage
575V
Frame
215TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

The Baldor V*S Master® Inverter Duty motor with a TEFC (Totally Enclosed Fan Cooled) enclosure is built for continuous-duty industrial applications requiring variable speed and consistent torque. It delivers a 1000:1 constant torque ratio and is available in standard NEMA frame sizes. The motor includes encoder mounting provisions to support feedback systems and is equipped with three thermostats—one on each phase—for reliable thermal monitoring. Designed for robust performance, it's ideal for use in centrifugal pumps, fans, conveyors, extruders, cranes, hoists, winders, web processing systems, test stands, and various process control applications.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

V*S Master, Inverter Duty, TEFC

Features

  • Available in TENV, TEFC, and TEBC enclosures with 10001 constant torque capability
  • Encoder mounting provisions included
  • Equipped with three thermostats (one per phase) for temperature monitoring
  • Offered in standard NEMA frame sizes

Applications

  • Ideal for centrifugal pumps and fans
  • Suitable for extruders, conveyors, cranes, hoists, and winding equipment
  • Used in web processing, industrial control systems, and test stand operations
Electrical Data
Rated Motor Output Power
10 HP
7.5 kW
Rated Motor Speed
1760 RPM
Rated Motor Voltage
575V
Rated Motor Current
9.8 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
H
Nominal Efficiency
91.7
Nominal Power Factor
83
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0
Constant Torque
1000:1
0
General Data
Frame
215TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
231lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
24.59"
NEMA Design
A
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6307
NDE Bearing
6206
Shaft Diameter
1.375"
Shaft Length
3.12"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA
Country of Origin
USA
Warranty
-
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
  • CAD 3DRegister or log in to download
