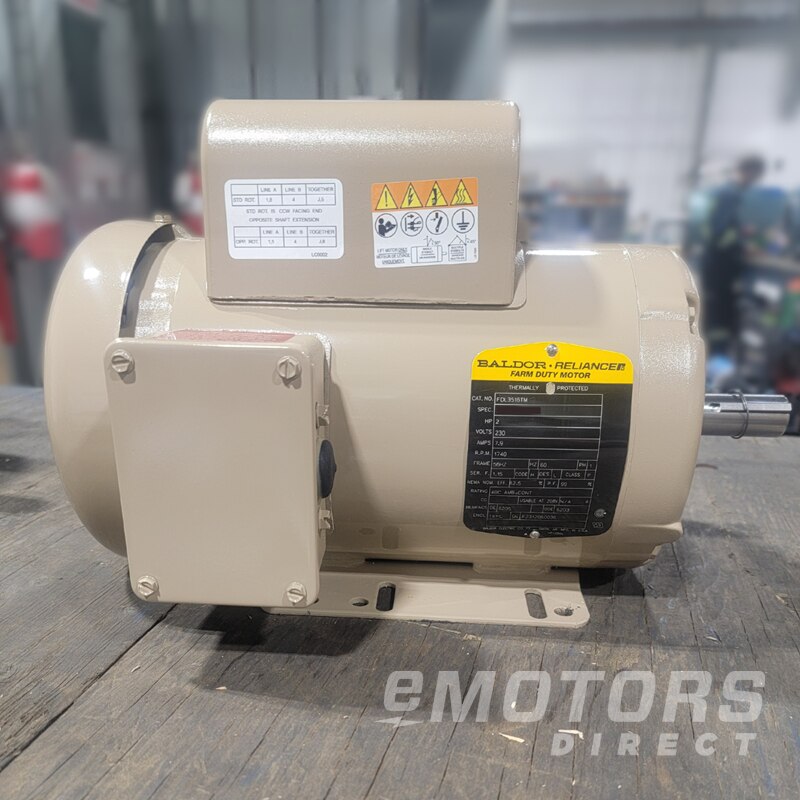

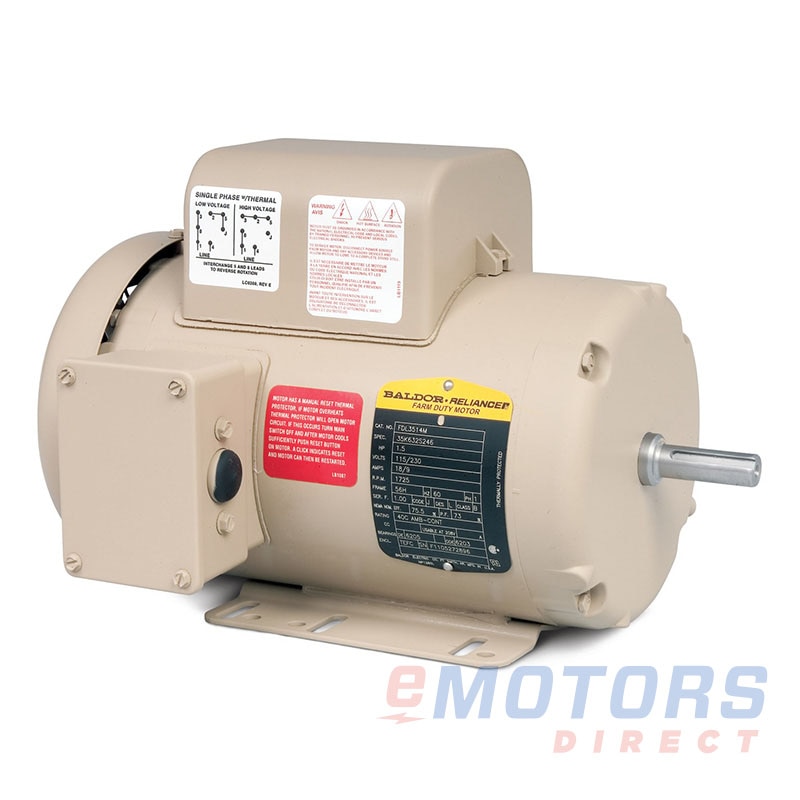

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor FDL3516TM

Baldor · General Purpose, Farm Duty, single phase, TEFC, foot mounted, Extra high torque
2 HP 1740 56HZ TEFC 230V Farm Duty
Catalog Number: FDL3516TM
HP
2
RPM
1800
Voltage
208-230V
Frame
56HZ
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The General Purpose Farm Duty motor, single phase, TEFC, foot mounted, Extra High Torque from Baldor is engineered to deliver reliable performance in demanding agricultural and industrial environments. This motor is designed with extra high torque capabilities, ensuring it can handle challenging applications with ease. It features lubed-for-life double-sealed ball bearings, which reduce maintenance needs, and is equipped with a robust thermal overload protection system to prevent damage from overheating. With its TEFC (Totally Enclosed Fan Cooled) construction, the motor is protected from dirt and moisture, making it ideal for use in harsh conditions. This motor is perfect for a wide range of applications, including industrial fans, pumps, and other general farm duties, offering both power and durability for a variety of tasks.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

General Purpose, Farm Duty, single phase, TEFC, foot mounted, Extra high torque

Features

  • Lubed-for-life double-sealed ball bearings for enhanced durability
  • Lip seal and V-ring slinger on the drive end for improved moisture protection
  • Gasketed manual reset thermal overload protection for added reliability

Applications

  • Agricultural-duty equipment
  • General farm use
  • Industrial fans and pumps
  • General industrial applications
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
1740 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
7.9 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
8.9
Service Factor
1.15
KVA Code
H
Nominal Efficiency
82.5
Nominal Power Factor
99
Leads (Qty, Size)
2
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56HZ
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
51lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
14.19"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
USA
Warranty
2-Year
