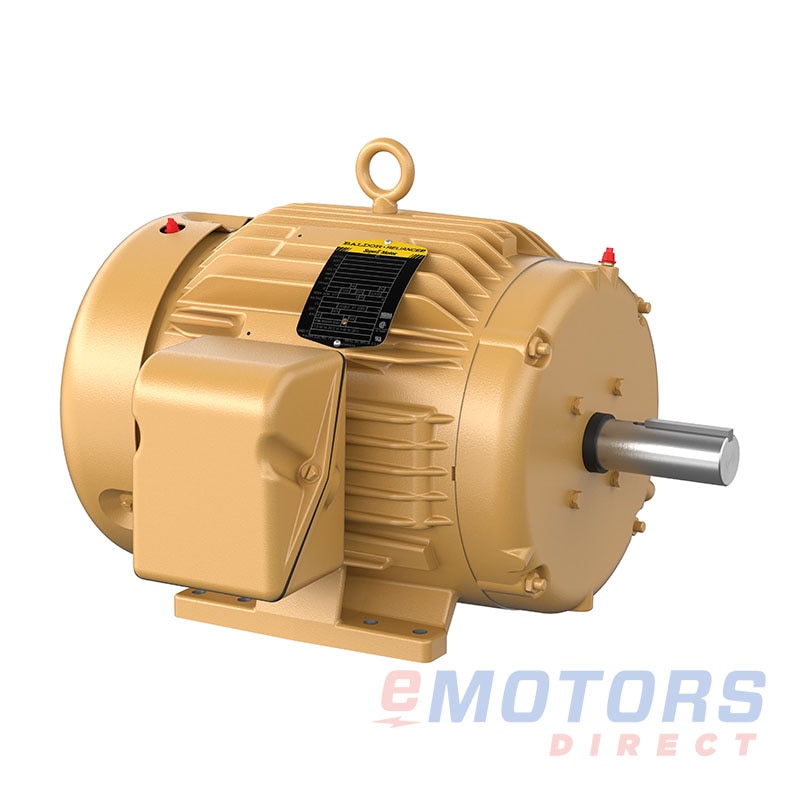

Baldor EM3774T-G

Baldor · HVAC, NEMA Premium, three phase, TEFC, foot mounted, Aegis
10 HP 1760 215T TEFC 230V|460V General Purpose AC Motors
Catalog Number: EM3774T-G
HP
10
RPM
1800
Voltage
230V,460V
Frame
215T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Baldor HVAC, NEMA Premium, three-phase, TEFC, foot-mounted motor is engineered for high-efficiency performance in demanding HVAC applications. It features Class H insulation, providing enhanced protection for inverter use, and includes an internal grounding ring to mitigate bearing currents. Designed for longevity, this motor comes with a 3-year warranty, ensuring reliable operation over time. It is suitable for inverter use, meeting NEMA MG1 Part 31.4.4.2 standards. This motor is ideal for various applications, including fans, pumps, blowers, unit handling, HVAC systems, variable speed operations, and general-purpose uses, delivering consistent and efficient performance across a range of industries.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: HVAC, NEMA Premium, three phase, TEFC, foot mounted, Aegis (80)

EM3581T-G11770230V, 460V143T $1,439.91
EM3583T-G1 1/23500230V, 460V143T $1,511.33
EM3587T-G21760230V, 460V145T $1,547.46
EM3586T-G23490230V, 460V145T $1,576.19
EM3660T-G33470230V, 460V182T $1,703.43
EM3661T-G31755230V, 460V182T $1,745.30
EM3665T-G51750230V, 460V184T $1,780.60
EM3663T-G53480208-230V, 460V184T $2,044.94
EM3710T-G7 1/21770230V, 460V213T $2,090.91
EM3710T-5G7 1/21770575V213T $2,090.91
EM3709T-G7 1/23520230V, 460V213T $2,278.90
EM3711T-G103490230V, 460V215T $2,305.99
EM3764T-G31165230V, 460V213T $2,319.95
EM3714T-G101770230V, 460V215T $2,322.40
EM3714T-5G101770575V215T $2,322.40
EM3770T-8G7 1/21770200V213T $2,332.27
EM3774T-8G101760200V215T $2,579.37
EM3770T-G7 1/21770230V, 460V213T $2,600.71
EM3769T-G7 1/23510230V, 460V213T $2,653.25
EM3768T-G51160230V, 460V215T $2,653.25
EM3771T-G103490230V, 460V215T $2,750.94
EM3774T-G101760230V, 460V215T $2,846.99
EM4106T-G203520230V, 460V256T $4,135.02
EM4107T-G253600230V, 460V284TS $5,388.58
EM4103T-G251775230V, 460V284T $5,453.44
EM4103T-5G251770575V284T $5,453.44
EM4100T-G151175230V, 460V284T $5,754.71
EM4108T-G303520230V, 460V286TS $6,306.38
EM4104T-G301760230V, 460V286T $6,373.69
EM4104T-5G301770575V286T $6,373.69
EM4102T-G201180230V, 460V286T $7,492.62
EM4110T-G401775230V, 460V324T $8,284.83
EM4110T-5G401775575V324T $8,284.83
EM4111T-G251180230V, 460V324T $8,517.97
EM4109T-G403530230V, 460V324TS $8,560.66
EM4115T-G501775230V, 460V326T $8,996.57
EM4115T-5G501775575V326T $8,996.57
EM4114T-G503540230V, 460V326TS $9,306.88
EM4117T-G301180230V, 460V326T $9,745.26
EM4308T-G401190230V, 460V364T $12,428.05
EM4314T-G601780230V, 460V364T $13,144.72
EM4310T-G603565230V, 460V364TS $13,305.63
EM4312T-G501185230V, 460V365T $14,917.12
EM4316T-G751780230V, 460V365T $15,289.00
EM4313T-G753560230V, 460V365TS $15,399.82
EM4400T-G1001785230V, 460V405T $19,130.94
EM3664T-G21165230V, 460V184T Contact for Pricing
EM3667T-G1 1/21170230V, 460V182T Contact for Pricing
EM3584T-G1 1/21770230V, 460V145T Contact for Pricing
EM3582T-G11170230V, 460V143T Contact for Pricing

HVAC, NEMA Premium, three phase, TEFC, foot mounted, Aegis

Features

  • Enhanced inverter protection with Class H insulation
  • Grounding ring minimizes bearing current issues
  • Built for long-term use and backed by a 3-year warranty
  • Meets NEMA MG1 Part 31.4.4.2 standards for inverter duty

Applications

  • Fans and blowers
  • Pumping systems
  • HVAC and unit handling equipment
  • Suitable for variable speed and general-purpose uses
Electrical Data
Rated Motor Output Power
10 HP
7.5 kW
Rated Motor Speed
1760 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
24.4/12.2 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
91.7
Nominal Power Factor
83
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
215T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
232lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
18.45"
NEMA Design
B
Degree of Protection (IP)
IP44
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
64 °C
Temp Code
-
Mechanical Data
DE Bearing
6307
NDE Bearing
6206
Shaft Diameter
1.375"
Shaft Length
3.38"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus EEV
Country of Origin
USA
Warranty
3-Year
