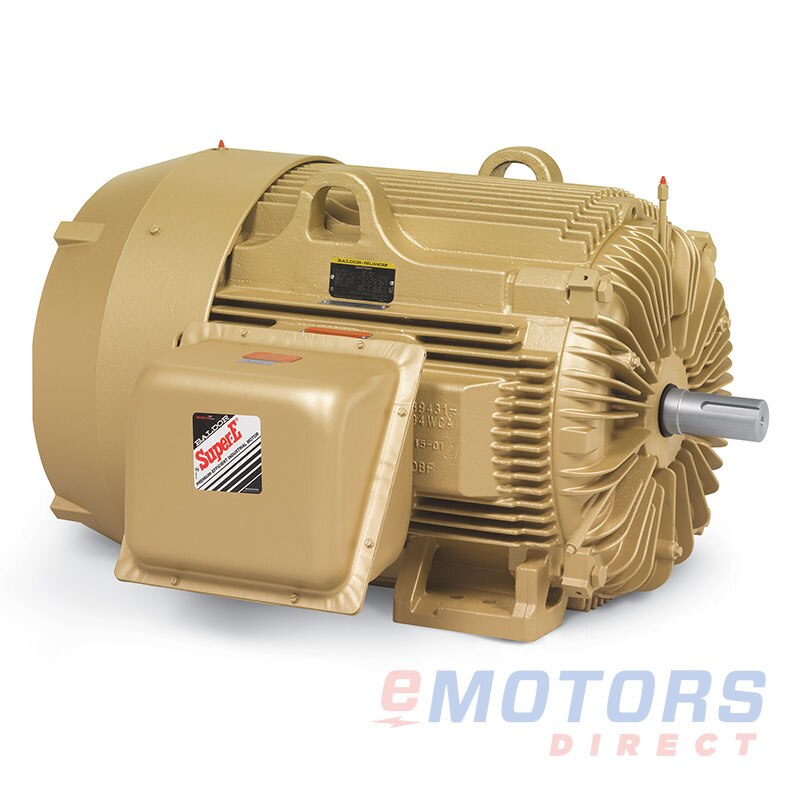

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor EM3559T-BG

Baldor · HVAC, NEMA Premium, three phase, TEFC, foot mounted, Shaft Grounding
3 HP 3450 145T TEFC 230V|460V General Purpose AC Motors
Catalog Number: EM3559T-BG
HP
3
RPM
3600
Voltage
230V,460V
Frame
145T
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The HVAC, NEMA Premium, three-phase, TEFC, foot-mounted motor from Baldor is designed for optimal performance in demanding HVAC applications. Built with Class H insulation, this motor offers increased protection for inverter use and features an internal grounding brush for bearing current mitigation on the DE retainer ring. It is also designed for longevity, with a 3-year warranty ensuring dependable operation. This motor is suitable for inverter use, meeting the NEMA MG1 Part 31.4.4.2 standards. Its durable construction makes it ideal for variable speed applications in fans, pumps, blowers, and other general-purpose HVAC systems.

Availability: Factory Order

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: HVAC, NEMA Premium, three phase, TEFC, foot mounted, Shaft Grounding (44)

EM3546T-BG11760230V, 460V143T $1,178.87
EM3554T-BG1 1/21760230V, 460V145T $1,216.61
EM3558T-BG21755230V, 460V145T $1,252.75
EM3555T-BG23490230V, 460V145T $1,298.71
EM3611T-BG31760230V, 460V182T $1,402.15
EM3559T-BG33450230V, 460V145T $1,402.15
EM3584T-BG1 1/21770230V, 460V145T $1,485.89
EM3615T-BG51750230V, 460V184T $1,508.87
EM3586T-BG23490230V, 460V145T $1,576.19
EM3582T-BG11170230V, 460V145T $1,588.49
EM3613T-BG53450230V, 460V184T $1,588.49
EM3661T-BG31755230V, 460V182T $1,745.30
EM3665T-BG51750230V, 460V184T $1,780.60
EM3664T-BG21165230V, 460V184T $1,893.88
EM3663T-BG53480230V, 460V184T $2,044.94
EM3710T-BG7 1/21770230V, 460V213T $2,090.91
EM3704T-BG31160230V, 460V213T $2,122.11
EM3709T-BG7 1/23520230V, 460V213T $2,278.90
EM3711T-BG103490230V, 460V215T $2,305.99
EM3764T-BG31165230V, 460V213T $2,319.95
EM3714T-BG101770230V, 460V215T $2,322.40
EM3708T-BG51165230V, 460V215T $2,358.54
EM3770T-BG7 1/21770230V, 460V213T $2,573.61
EM3769T-BG7 1/23510230V, 460V213T $2,653.25
EM3771T-BG103490230V, 460V215T $2,710.70
EM3774T-BG101760230V, 460V215T $2,819.90
EM2333T-BG151800208-230V, 460V254T $3,472.53
EM2394T-BG153600208-230V, 460V254T $3,762.33
EM2276T-BG7 1/21180230V, 460V254T $3,800.90
EM2334T-BG201800208-230V, 460V256T $4,135.02
EM2332T-BG101200208-230V, 460V256T $4,287.72
EM4103T-BG251800208-230V, 460V284T $5,347.53
EM4100T-BG151175200-230V, 460V284T $5,648.82
EM4104T-BG301800208-230V, 460V286T $6,268.62
EM4102T-BG201200208-230V, 460V286T $7,387.54
EM4110T-BG401800208-230V, 460V324T $8,163.32
EM4111T-BG251200208-230V, 460V324T $8,395.65
EM4115T-BG501800208-230V, 460V326T $8,874.24
EM3768T-BG51160230V, 460V215T Contact for Pricing
EM3587T-BG21760230V, 460V145T Contact for Pricing
EM3667T-BG1 1/21170230V, 460V182T Contact for Pricing
EM3660T-BG33470230V, 460V182T Contact for Pricing
EM3583T-BG1 1/23500230V, 460V143T Contact for Pricing
EM3581T-BG11770230V, 460V143T Contact for Pricing

HVAC, NEMA Premium, three phase, TEFC, foot mounted, Shaft Grounding

Features

  • Class H insulation for enhanced protection in inverter-driven applications
  • Internal grounding brush on DE retainer ring to mitigate bearing currents
  • Built for long-lasting performance with a 3-year warranty
  • Compatible with inverter use, adhering to NEMA MG1 Part 31.4.4.2 standards

Applications

  • Fans
  • Pumps
  • Blowers
  • Unit handling
  • HVAC systems
  • Variable speed operations
  • General purpose uses
Electrical Data
Rated Motor Output Power
3 HP
Rated Motor Speed
3450 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
3.6 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
7.9
Service Factor
1.15
KVA Code
H
Nominal Efficiency
86.5
Nominal Power Factor
92
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
50lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.19"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
Warranty
-
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
