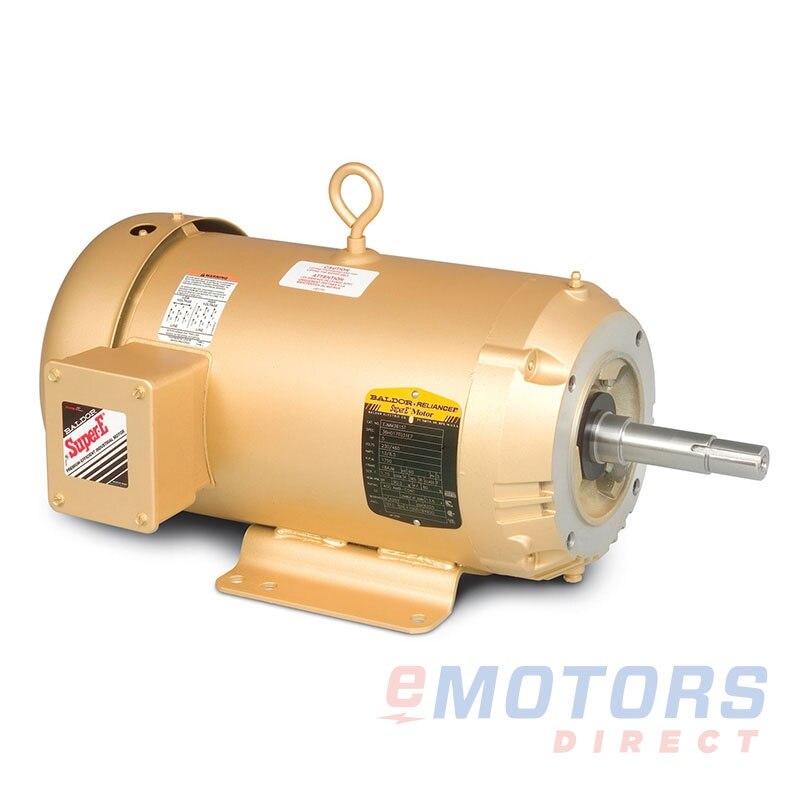

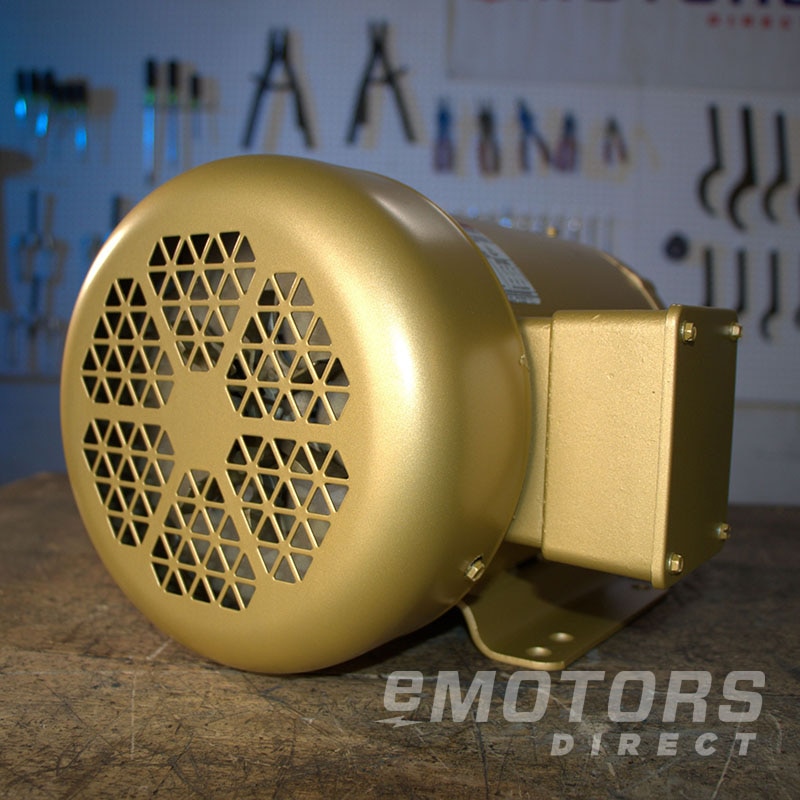

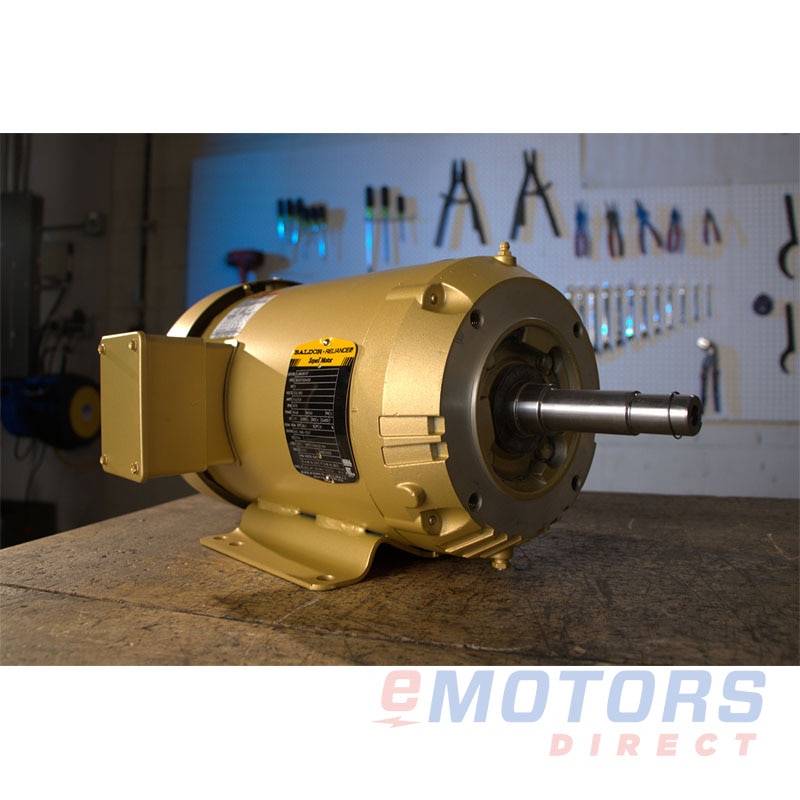

Baldor EJMM3616T-5

Baldor · Close-coupled pump, three phase, TEFC, foot mounted
7 1/2 HP 3470 184JM TEFC 575V Pump Motors
Catalog Number: EJMM3616T-5
HP
7 1/2
RPM
3600
Voltage
575V
Frame
184JM
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Close-Coupled Pump, three-phase, TEFC, foot-mounted from Baldor is engineered for exceptional performance and durability in demanding industrial environments. Featuring oversized ball bearings designed specifically for the pump industry, it also incorporates a locked DE bearing that allows for flexible mounting configurations. The pump is built to last, with a premium efficient Super-E® motor backed by a 3-year warranty, ensuring both longevity and energy efficiency. Suitable for inverter use as per NEMA MG1 Part 31.4.4.2, this pump is ideal for a wide range of applications, including cement, food and beverage, industrial pumps, wastewater, agricultural, and general-purpose use. Its robust design makes it a reliable choice for consistent, high-performance operation.

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: Close-coupled pump, three phase, TEFC, foot mounted (72)

EJMM3550T-51 1/23500575V143JM $1,185.41
EJMM3546T-511760575V143JM $1,201.83
EJMM3555T-523490575V145JM $1,279.00
EJMM3554T-51 1/21760575V145JM $1,312.66
EJPM3554T1 1/21760208-230V, 460V145JP $1,312.66
EJMM3558T-521755575V145JM $1,375.88
EJMM3559T-533450575V145JM $1,381.62
EJPM3559T33450208-230V, 460V145JP $1,381.62
EJMM3610T-533450575V182JM $1,538.42
EJMM3611T-531760575V182JM $1,549.09
EJPM3611T31760208-230V, 460V182JP $1,549.09
EJMM3615T-551750575V184JM $1,588.49
EJPM3615T51750208-230V, 460V184JP $1,588.49
EJMM3613T-553450575V184JM $1,668.13
EJPM3613T53430208-230V, 460V184JP $1,668.13
EJMM3616T-57 1/23470575V184JM $2,090.09
EJPM3616T7 1/23450208-230V, 460V184JP $2,090.09
EWCM3710T7 1/21770208-230V, 460V213TCZ $2,196.82
EJMM3710T-57 1/21770575V213JM $2,243.61
EJPM3710T7 1/21770208-230V, 460V213JP $2,243.61
EWCM3709T7 1/23450208-230V, 460V213TCZ $2,384.80
EWCM3711T103490208-230V, 460V215TCZ $2,411.89
EWCM3714T101770208-230V, 460V215TCZ $2,427.48
EJPM3709T7 1/23520208-230V, 460V213JP $2,431.60
EJMM3711T-5103490575V215JM $2,458.68
EJPM3711T103490208-230V, 460V215JP $2,458.68
EJMM3714T-5101770575V215JM $2,475.10
EJPM3714T101770208-230V, 460V215JP $2,530.93
EJMM3713T-5153500575V215JM $3,283.72
EJPM3713T153500208-230V, 460V215JP $3,283.72
EJMM2333T-5151765575V254JM $4,082.48
EJPM2333T151765208-230V, 460V254JP $4,141.59
EJMM2394T-5153490575V254JM $4,371.45
EJPM2394T153525208-230V, 460V254JP $4,371.45
EJPM4106T203510208-230V, 460V256JP $4,703.92
EJPM2334T201765208-230V, 460V256JP $4,744.97
EJPM4107T253525208-230V, 460V284JP $5,346.72
EJPM4103T251770208-230V, 460V284JP $5,538.00
EJPM4108T303520208-230V, 460V286JP $7,352.25
EJMM4108T303520208-230V, 460V286JM $7,352.25
EJPM4104T301770208-230V, 460V286JP $7,832.50
EJMM4104T301770208-230V, 460V286JM $7,832.50
EJPM4109T403530208-230V, 460V324JP $8,325.86
EJMM4109T403530208-230V, 460V324JM $8,325.86
EJPM4110T401775208-230V, 460V324JP $9,090.97
EJMM4110T401775208-230V, 460V324JM $9,090.97
EJPM4114T503540208-230V, 460V326JP $10,113.02
EJMM4114T503540208-230V, 460V326JM $10,113.02
EJPM4115T501775208-230V, 460V326JP $10,253.42
EJMM4115T501775208-230V, 460V326JM $10,253.42

Close-coupled pump, three phase, TEFC, foot mounted

Features

  • Oversized ball bearings designed specifically for the pump industry
  • Locked DE bearing enables versatile mounting configurations
  • Premium efficient Super-E® motors backed by a 3-year warranty for enhanced durability
  • Suitable for use with inverters as per NEMA MG1 Part 31.4.4.2
  • Designed for longevity and reliability

Applications

  • Cement production
  • Food and beverage processing
  • Industrial pumping systems
  • Wastewater management
  • Agricultural applications
  • General purpose pumping
  • Aggregate handling
Electrical Data
Rated Motor Output Power
7 1/2 HP
Rated Motor Speed
3470 RPM
Rated Motor Voltage
575V
Rated Motor Current
6.8 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
F
Nominal Efficiency
89.5
Nominal Power Factor
91
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184JM
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
96lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
19.56"
NEMA Design
A
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6207
NDE Bearing
6205
Shaft Diameter
1.00" (0.875")
Shaft Length
4.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
