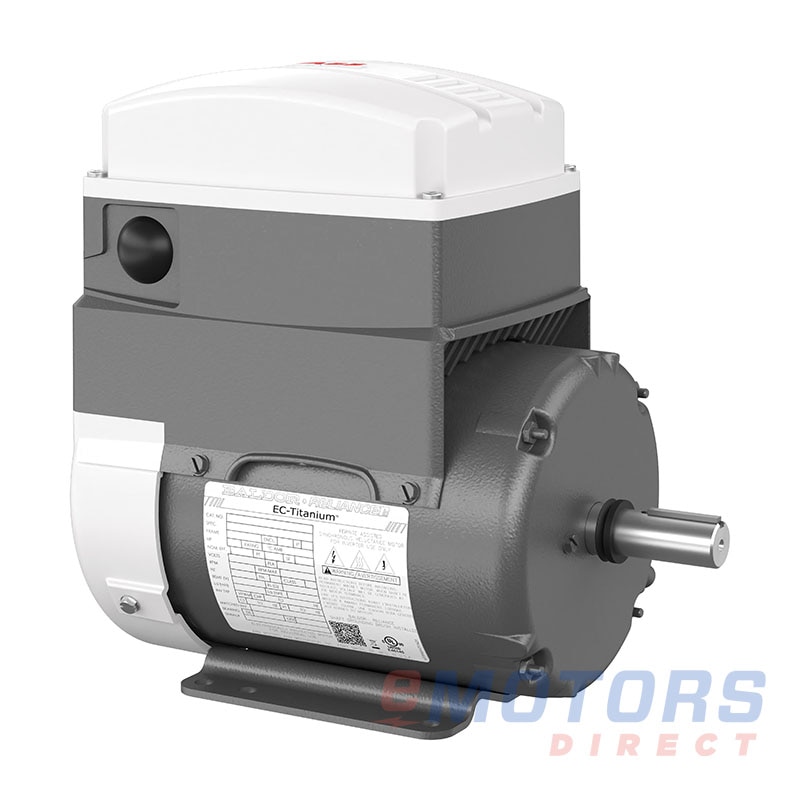

Baldor ECS100T1H1DF4

Baldor · EC Titanium Integrated motor-drive, TEFC, foot mounted, Top Mount Drive
1 HP 1800 145T TEFC 115V Integrated Drive Motors
Catalog Number: ECS100T1H1DF4
HP
1
RPM
1800
Voltage
115V
Frame
145T
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor EC Titanium™ Integrated Motor-Drive, TEFC, Foot Mounted with Top Mount Drive delivers ultra-high efficiency and smart control in a compact, all-in-one solution. Featuring a permanent magnet motor with PWM AC drive control, it achieves IE5+ efficiency and precise speed regulation. The IP54-rated plastic cover enclosure offers reliable protection, while built-in ABB Ability™ and Bluetooth® provide easy connectivity. It includes a Serial Modbus RJ45 interface, two digital inputs, two configurable analog/digital inputs, and one relay output. With Class F insulation, Class B temperature rise, and a grounding brush for bearing protection, this motor is inverter-ready per NEMA MG1 Part 31.4.4.2. Ideal for fans, pumps, HVAC systems, compressors, blowers, and other variable speed applications.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

EC Titanium Integrated motor-drive, TEFC, foot mounted, Top Mount Drive

Features

  • Permanent Magnet motor with PWM AC drive control for precise speed management
  • Durable IP54-rated plastic cover with gasketed enclosure for enhanced protection
  • Integrated ABB Ability™ and Bluetooth® connectivity for easy monitoring and configuration
  • Built-in RJ45 interface for Serial Modbus communication
  • Includes 2 digital inputs and 2 configurable analog/digital inputs for flexible integration
  • One relay output for external control functionality
  • Exceeds IE5+ efficiency standards for energy-saving performance
  • Equipped with Class F insulation and operates at Class B temperature rise
  • Internal grounding brush reduces bearing currents for extended motor life
  • Designed for inverter duty, compliant with NEMA MG1 Part 31.4.4.2

Applications

  • Ideal for compressors and blowers
  • Performs reliably in fan and HVAC systems
  • Suitable for unit handling operations
  • Effective in pump systems
  • Perfect for variable speed and inverter-driven applications
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V
Rated Motor Current
2.5 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
89.3
Nominal Power Factor
98
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:1
6
Constant Torque
10:1
6
General Data
Frame
145T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
35lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
12.37"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cULus
Country of Origin
USA
Warranty
-
