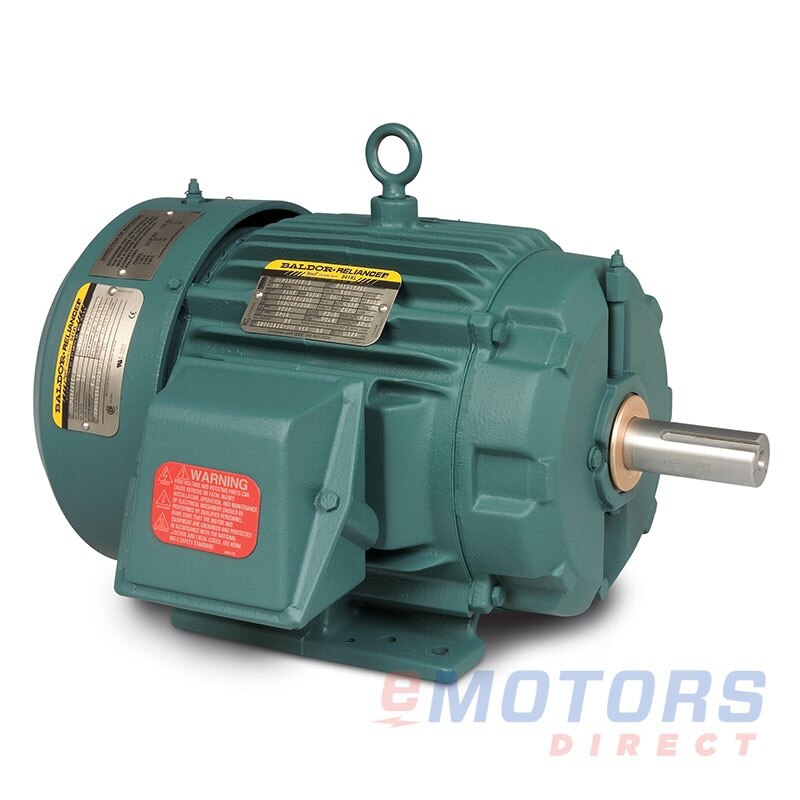

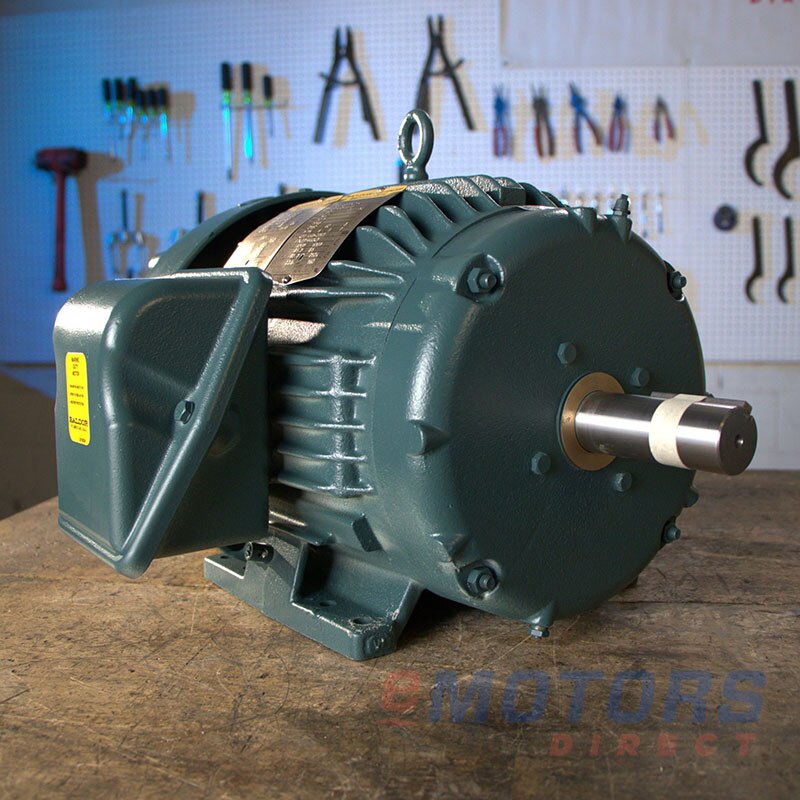

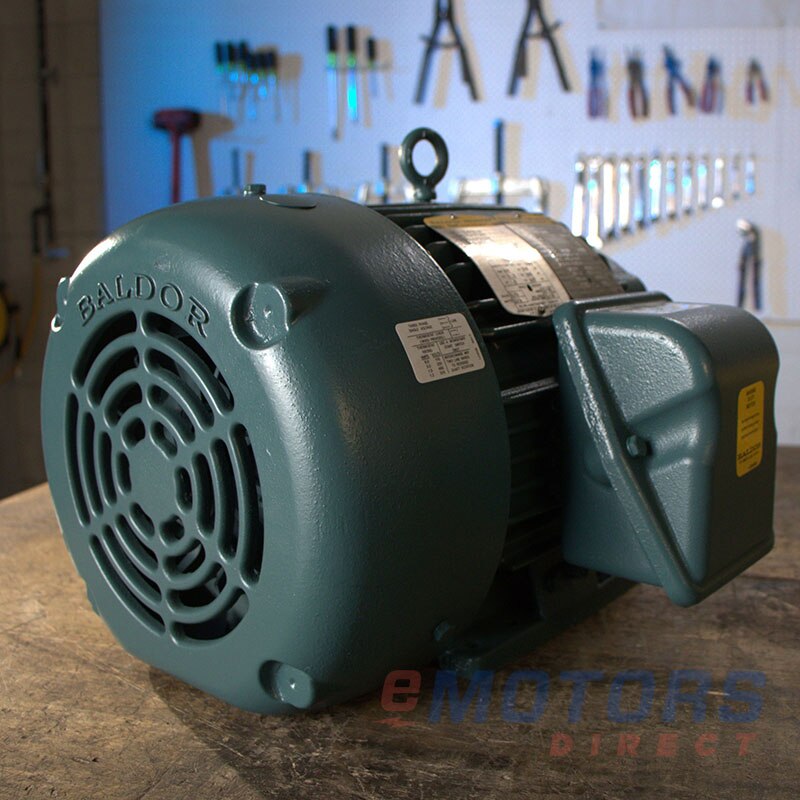

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor ECP83774T-5

Baldor · IEEE 841XL, three phase, totally enclosed, foot mounted
10 HP 1760 215T TEFC 575V Severe Duty IEEE 841 Motors
Catalog Number: ECP83774T-5
HP
10
RPM
1800
Voltage
575V
Frame
215T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Baldor IEEE 841XL three-phase motor is designed to meet and exceed the rigorous demands of industrial environments, offering reliable performance and exceptional durability. This motor features a totally enclosed construction that provides superior protection against dust, dirt, and moisture, making it ideal for harsh operating conditions. The foot-mounted configuration ensures secure installation, while the motor is specifically built to comply with IEEE 841 standards for enhanced reliability. With its robust design and advanced features, including a 5-year warranty and a patented lubrication system for extended bearing life, this motor is a dependable solution for a wide range of demanding applications.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: IEEE 841XL, three phase, totally enclosed, foot mounted (135)

ECP83667T-41 1/21200460V182T $1,558.79
ECP83664T-521200575V184T $1,694.12
ECP83664T-421200460V184T $1,694.12
ECP83661T-431800460V182T $1,698.33
ECP83665T-551800575V184T $1,730.60
ECP83665T-451800460V184T $1,730.60
ECP83770T-47 1/21800460V213T $2,180.07
ECP83768T-551200575V215T $2,441.62
ECP83768T-451200460V215T $2,441.62
ECP83774T-5101800575V215T $2,581.16
ECP83774T-4101800460V215T $2,581.16
ECP84110T-5401800575V324T $7,306.62
ECP84109T-5403600575V324TS $8,263.76
ECP84115T-5501800575V326T $8,577.91
ECP84114T-5503600575V326TS $8,619.99
ECP84117T-5301200575V326T $9,598.87
ECP84308T-5401200575V364T $11,760.01
ECP84314T-5601800575V364T $12,316.76
ECP84310T-5603600575V364TS $12,441.58
ECP84312T-5501200575V365T $13,692.54
ECP84316T-5751800575V365T $13,981.45
ECP84313T-5753600575V365TS $14,066.99
ECP84403T-5601200575V404T $16,221.81
ECP84402T-51003600575V405TS $16,908.31
ECP84400T-51001800575V405T $17,682.44
ECP84400TR-41001785460V405T $18,469.20
ECP84412T-51253600575V444TS $19,092.27
ECP84410T-51251800575V444T $19,365.81
ECP84404T-5751200575V405T $19,648.63
ECP84410TR-41251785460V444T $20,672.47
ECP84409T-51001200575V444T $20,867.46
ECP84413T-51503600575V445TS $21,939.86
ECP84409TR-41001190460V444T $22,174.12
ECP84406T-51501800575V445T $22,901.94
ECP84411T-51251200575V445T $23,685.26
ECP84406TR-41501785460V445T $24,329.11
ECP84411TR-41251188460V445T $24,991.94
ECP84407T-52001800575V447T $27,553.82
ECP844156TR-51501200575V447T $27,630.32
ECP84407TR-52001800575V447T $28,859.12
ECP84416T-52003600575V445TS $29,004.68
ECP84408T-52501800575V449T $35,173.12
ECP844206TR-52001200575V449T $36,279.39
ECP84408TR-52501800575V449T $36,443.24
ECP844252T-52503600575V449TS $46,732.75
ECP844256TR-52501188575V449T $51,846.38
ECP844256TR-42501189460V449T $51,846.38
ECP844306T-43001190460V449T $56,289.05
ECP844306TR-53001190575V449T $59,102.80
ECP844306TR-43001190460V449T $59,102.80

IEEE 841XL, three phase, totally enclosed, foot mounted

Features

  • Complies with and exceeds the standards of IEEE Std. 841-2021
  • Patented PLS lubrication system designed for extended bearing life
  • Inverter Duty rated for compatibility with variable frequency drives
  • Meets IEEE 45 standards, as indicated on the nameplate
  • Division 2, Class I, Groups A, B, C, D ratings on nameplate for hazardous environments
  • Includes IEEE 841 test report with each motor shipment
  • Backed by a 5-year warranty for added peace of mind
  • Class F insulation with a 1.15 service factor, operating within Class "B" temperature limits at rated horsepower
  • "TR" catalog numbers feature standard roller bearings for enhanced reliability

Applications

  • Cement, aggregate, and above-ground mining operations
  • Chemical, oil, and gas industries
  • Coastal marine environments
  • Food processing and packaging
  • Metals manufacturing and foundries
  • Power generation systems
  • Pulp and paper, as well as forest product industries
Electrical Data
Rated Motor Output Power
10 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
575V
Rated Motor Current
9.84 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
91.7
Nominal Power Factor
83
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
215T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
231lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
20.19"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6307
NDE Bearing
6307
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
Warranty
3-Year
