Baldor ECP49354T-5

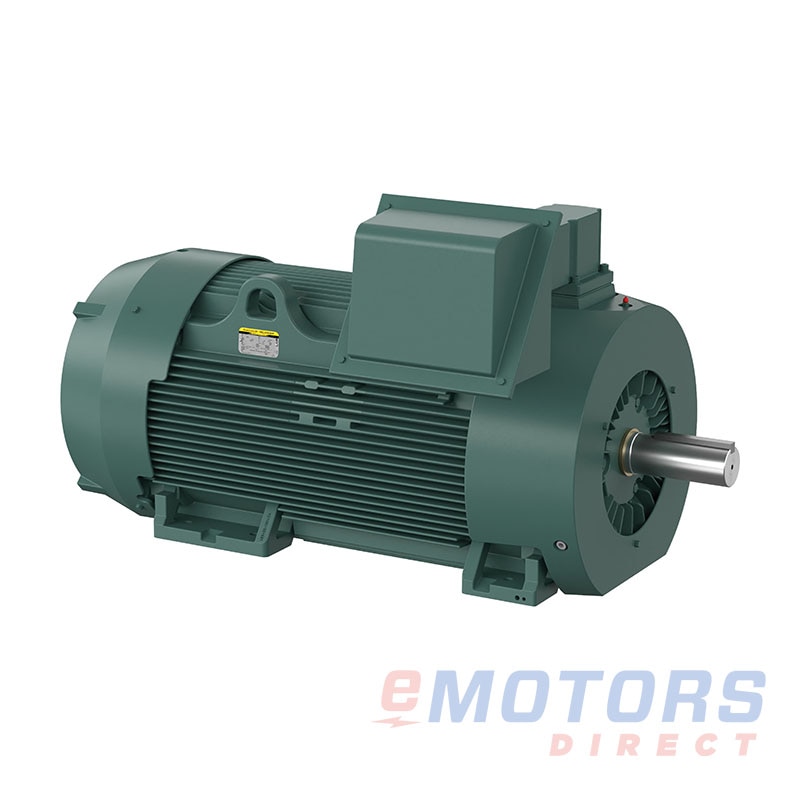

Baldor · Severe Duty XEX, three phase, totally enclosed, foot mounted
350 HP 1785 449T TEFC 575V Severe Duty Motors
Catalog Number: ECP49354T-5
HP
350
RPM
1800
Voltage
575V
Frame
449T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Baldor Severe Duty XEX three-phase motor is designed for demanding industrial applications where reliability and durability are critical. This motor features a totally enclosed construction, providing superior protection against dust, dirt, and moisture, making it ideal for harsh operating environments. Its foot-mounted configuration ensures secure and stable installation, while the Severe Duty design offers enhanced performance and longevity under extreme conditions. Built to withstand challenging tasks, this motor delivers consistent power and reliability, making it the perfect choice for heavy-duty industrial use in a variety of applications

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Baldor: Severe Duty XEX, three phase, totally enclosed, foot mounted (279)

ECP4115T-4-C501800460V326TC $6,088.08
ECP4115T-5-C501800575V326TC $6,093.35
ECP4117T-4-C301200460V326TC $6,567.18
ECP4117T-C301200230V, 460V326TC $6,642.23
ECP4308T-C401200230V, 460V364TC $8,086.22
ECP4308T-4-C401200460V364TC $8,184.06
ECP4314T-C601800230V, 460V364TC $8,447.59
ECP4117T-5301180575V326T $8,587.03
ECP4310T-4-C603600460V364TSC $8,625.98
ECP4312T-4-C501200460V365TC $9,437.93
ECP4312T-C501200230V, 460V365TC $9,437.93
ECP4308T-5401190575V364T $10,701.88
ECP4313T-5753555575V365TS $12,802.01
ECP4404T-C751200230V, 460V405TC $14,312.89
ECP4412T-C1253600230V, 460V444TSC $15,534.72
ECP4404T-5751185575V405T $18,950.93
ECP4407T-4-C2001800460V447TC $19,895.39
ECP4411T-51251190575V445T $22,736.06
ECP4408T-4-C2501800460V449TC $24,364.87
ECP4408T-52501785575V449T $32,485.99
ECP44304T-53001785575V449T $44,774.79
ECP49354T-53501785575V449T $53,727.83
ECP49404T-54001785575V449T $67,105.30
ECP49404T-44001785460V449T $67,105.30
ECP49454T-44501785460V449T $73,817.39
ECP503002-PP43003584460V5008 $79,839.94
ECP504006-PP44001192460V5012 $91,570.68
ECP504002-PP44003587460V5010 $96,787.86
ECP506002-PP46003582460V5010 $101,037.19
ECP505006-PP45001193460V5012 $101,672.02
ECP505004-PP45001790460V5010 $112,289.96
ECP505002-PP45003582460V5010 $117,176.93
ECP506004-PP46001792460V5012 $119,377.56
ECP5010002-PP410003581460V5012 Contact for Pricing
ECP505008-PP4500892460V5012 Contact for Pricing
ECP504508-PP4450894460V5012 Contact for Pricing
ECP504506-PP44501193460V5012 Contact for Pricing
ECP504008-PP4400893460V5012 Contact for Pricing
ECP503508-PP4350893460V5012 Contact for Pricing
ECP503506-PP43501194460V5010 Contact for Pricing
ECP503502-PP43503584460V5008 Contact for Pricing
ECP503008-PP4300893460V5010 Contact for Pricing
ECP503006-PP43001192460V5010 Contact for Pricing
ECP502506-PP42501192460V5008 Contact for Pricing
ECP5010004-PP410001789460V5012 Contact for Pricing
ECP509004-PP49001791460V5012 Contact for Pricing
ECP504504-PP44501791460V5010 Contact for Pricing
ECP504004-PP44001792460V5008 Contact for Pricing
ECP503504-PP43501792460V5008 Contact for Pricing
ECP503004-PP43001791460V5008 Contact for Pricing

Severe Duty XEX, three phase, totally enclosed, foot mounted

Features

  • Durable cast iron frame construction for long-lasting performance
  • Regreasable bearings across all frame sizes for easy maintenance
  • High-quality 304 stainless steel nameplates for corrosion resistance
  • Inverter Duty rated, ensuring compatibility with variable frequency drives
  • Division 2, Class I, Groups A, B, C, D markings on nameplate for hazardous environments
  • Division 2, Class II, Groups F & G, T4 marking on 5000 series frames
  • Insulated NDE bearing on 5000 series frames for enhanced protection
  • Class F insulation with a 1.15 service factor, operating within Class "B" temperature limits on 56 through L449T frames
  • "TR" catalog numbers come with standard roller bearings for reliability
  • IP55 rating for frames up to L449; IP66 rating for 586/7/8 frames for superior protection

Applications

  • Power generation and energy production
  • Metals manufacturing and foundries
  • Chemical, oil, and gas industries
  • Food processing and packaging
  • Pulp and paper production, as well as forest products
  • Water and wastewater management
  • Cement production, aggregate processing, and mining operations
Electrical Data
Rated Motor Output Power
350 HP
262.5 kW
Rated Motor Speed
1785 RPM
Rated Motor Voltage
575V
Rated Motor Current
309 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
96.2
Nominal Power Factor
88
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0
Constant Torque
2:1
30
General Data
Frame
449T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
3680lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
60.47"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6318
NDE Bearing
6318
Shaft Diameter
3.375"
Shaft Length
8.39"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus EEV, cCSAus EEV
Country of Origin
USA
Warranty
3-Year
