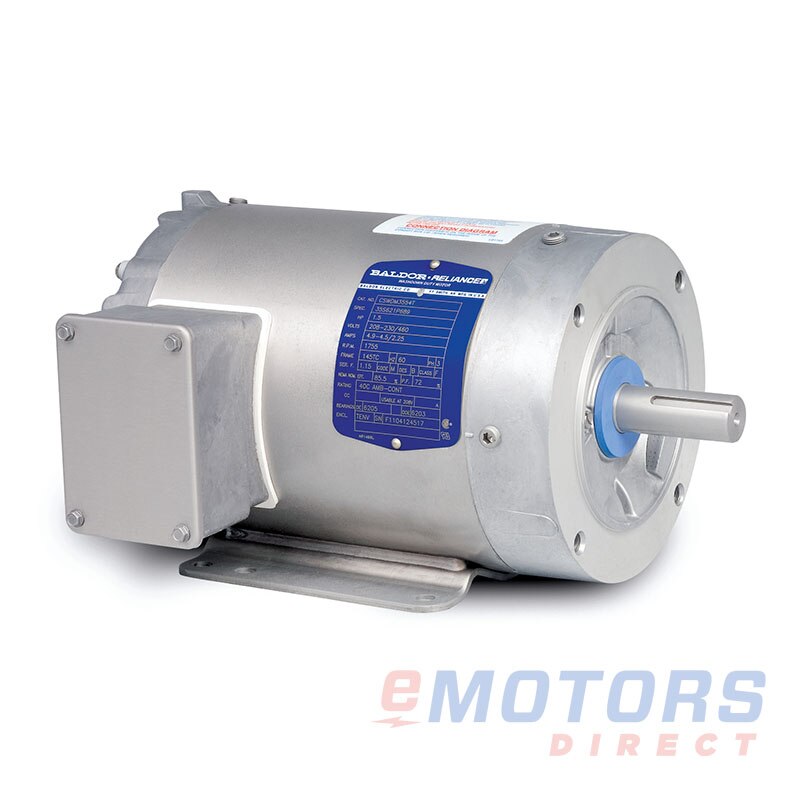

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor CSWDM3542

Baldor · Paint-Free, three phase, C-face foot mounted
3/4 HP 1765 56C TENV 230V|460V Washdown Motors
Catalog Number: CSWDM3542
HP
3/4
RPM
1800
Voltage
230V,460V
Frame
56C
Phase
3
Enclosure
TENV
Material
Stainless Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor Paint-Free three-phase, C-face foot-mounted motor is designed for optimal performance in demanding environments. Constructed with a 300 series stainless steel motor frame, endplates, conduit box, shaft, base, and hardware, it provides exceptional durability and resistance to corrosion. This motor features sealed ball bearings and a non-contact rotating labyrinth seal for superior protection against contaminants. With no exterior paint, it eliminates concerns of peeling or degradation over time. Ideal for applications such as food processing, outdoor use, and packaging, it is backed by a 3-year warranty to ensure reliable, long-lasting performance.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Paint-Free, three phase, C-face foot mounted

Features

  • Motor frame, endplates, conduit box, shaft, base, and hardware made from durable 300 series stainless steel
  • Sealed ball bearings for enhanced reliability
  • Non-contact rotating labyrinth seal for superior protection
  • No exterior paint to prevent peeling or degradation
  • Includes a 3-year warranty for added peace of mind

Applications

  • Ideal for food processing environments
  • Suitable for outdoor use
  • Perfect for packaging applications
Electrical Data
Rated Motor Output Power
3/4 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
1.1 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
M
Nominal Efficiency
-
Nominal Power Factor
66
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TENV
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
30lb
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
11.07"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
3-Year
