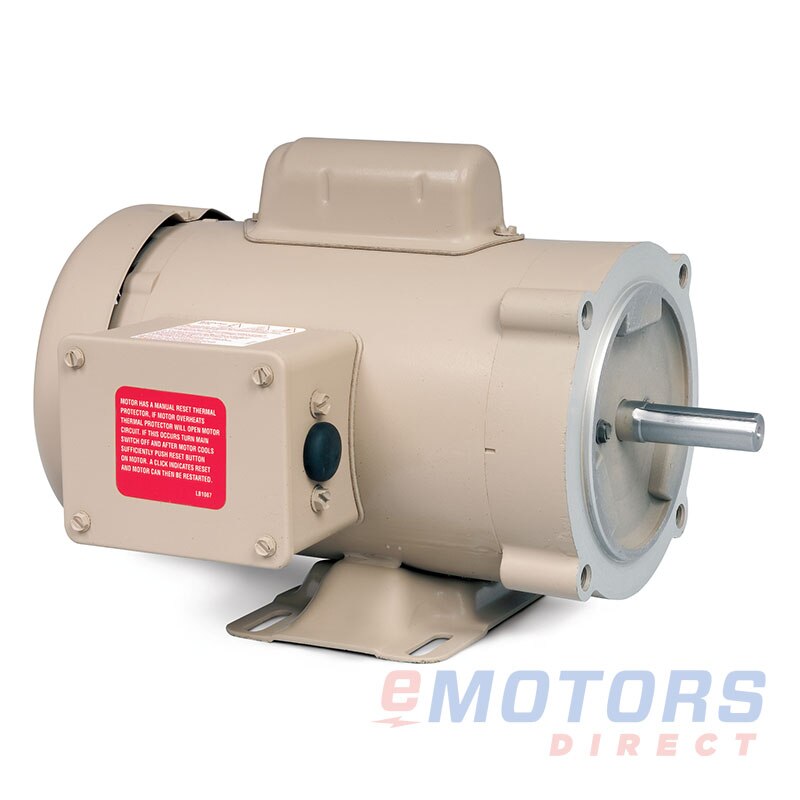

Baldor CFDL3504M

Baldor · General Purpose, Farm Duty, single phase, TEFC, C-face foot mounted
1/2 HP 1725 56C TEFC 115V|230V Farm Duty
Catalog Number: CFDL3504M
HP
1/2
RPM
1800
Voltage
115V,208-230V
Frame
56C
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The General Purpose Farm Duty motor, single phase, TEFC, C-face foot mounted from Baldor is engineered for dependable performance in agricultural and industrial settings. It comes with lubed-for-life double-sealed ball bearings to ensure longevity and features a lip seal and V-ring slinger on the drive end to improve moisture resistance. Additionally, the motor is equipped with gasketed manual reset thermal overload protection for enhanced safety. This motor is ideal for a range of applications, including general farm use, industrial fans, and pumps, making it perfect for agri-duty and other general-purpose tasks.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

General Purpose, Farm Duty, single phase, TEFC, C-face foot mounted

Features

  • Lubed-for-life double-sealed ball bearings for enhanced durability
  • Lip seal and V-ring slinger on the drive end for improved moisture protection
  • Gasketed manual reset thermal overload protection for added reliability

Applications

  • Agricultural-duty equipment
  • General farm use
  • Industrial fans and pumps
  • General industrial applications
Electrical Data
Rated Motor Output Power
1/2 HP
.38 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
7.4/3.7 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
4.3
Service Factor
1.25
KVA Code
J
Nominal Efficiency
68
Nominal Power Factor
66
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
28lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.97"
NEMA Design
N
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
USA
Warranty
2-Year
