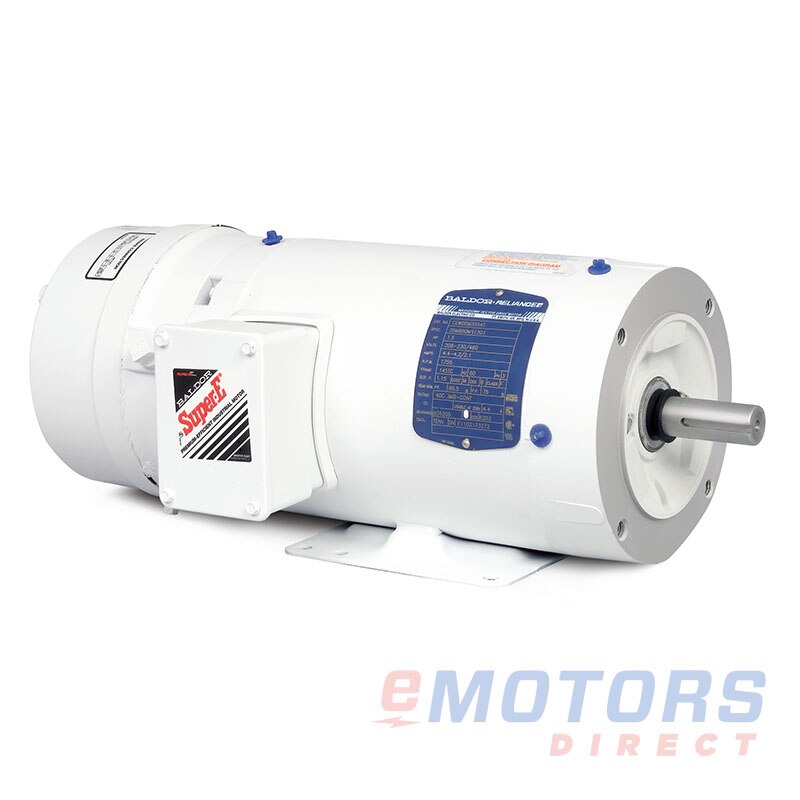

Baldor CEWDBM3615T

Baldor · White Washdown, Brake Motor, C-face foot mounted
5 HP 1750 184TC TEFC 230V|460V Washdown Motors
Catalog Number: CEWDBM3615T
HP
5
RPM
1800
Voltage
230V,460V
Frame
184TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor White Washdown Brake Motor, C-face foot-mounted, is designed for demanding washdown applications where both durability and braking performance are essential. It features 300 series stainless steel hardware for excellent corrosion resistance and neoprene gaskets for reliable moisture sealing. The motor includes double-sealed ball bearings and a combination lip and V-ring seal on the drive-end (DE) to protect against contaminants. A white epoxy, corrosion-resistant finish ensures long-term durability in harsh environments, while the stainless steel shaft extension adds strength and longevity. With integrated braking functionality, NEMA Premium® efficiency, and a 3-year warranty, this motor is ideal for food processing, packaging, and other wet or washdown-intensive operations.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

White Washdown, Brake Motor, C-face foot mounted

Features

  • Built with corrosion-resistant 300 series stainless steel hardware
  • Neoprene gaskets for reliable sealing in wet conditions
  • Double-sealed ball bearings for extended motor life
  • Drive-end equipped with both lip and V-ring seals for added protection
  • Durable white epoxy finish resists corrosion and wear
  • Stainless steel shaft extension for strength and durability
  • Delivers NEMA Premium® efficiency and includes a 3-year warranty

Applications

  • Suitable for packaging operations
  • Designed for food processing environments
  • Reliable for pump and wastewater systems
  • Ideal for consistently wet or washdown areas
Electrical Data
Rated Motor Output Power
5 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
6.5 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
J
Nominal Efficiency
90.2
Nominal Power Factor
78
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
110lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
17.06"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
