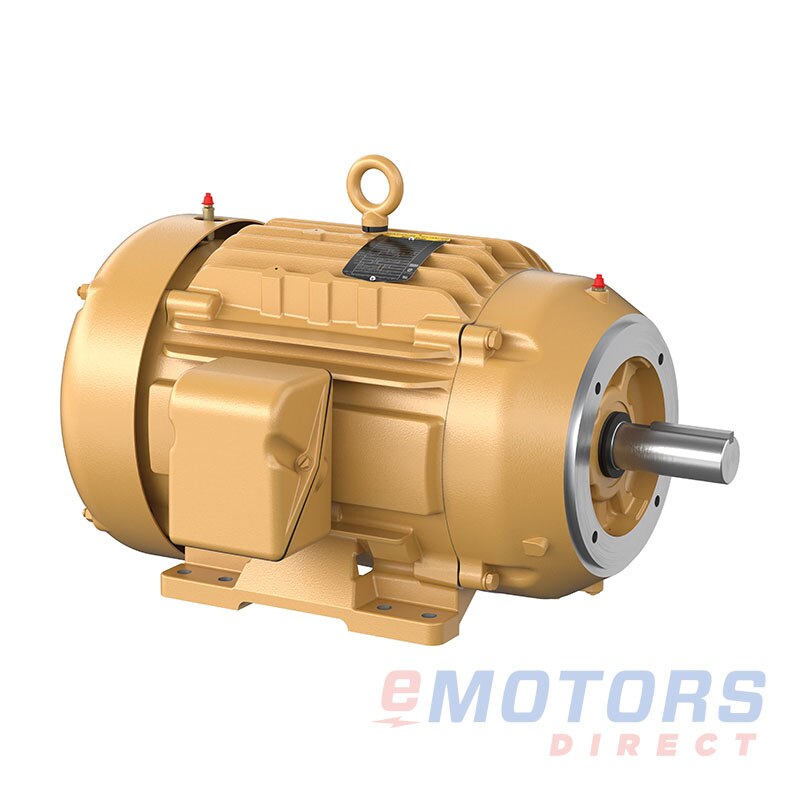

Baldor CEM2394T-G

Baldor · HVAC, NEMA Premium, three phase, TEFC, C-face foot mounted, Aegis
15 HP 3520 254TC TEFC 230V|460V General Purpose AC Motors
Catalog Number: CEM2394T-G
HP
15
RPM
3600
Voltage
230V,460V
Frame
254TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Availability: Factory Order

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: HVAC, NEMA Premium, three phase, TEFC, C-face foot mounted, Aegis (43)

CEM3546T-G11770230V, 460V143TC $1,404.62
CEM3554T-G1 1/21770230V, 460V145TC $1,531.87
CEM3558T-G21760230V, 460V145TC $1,605.75
CEM3611T-G31760230V, 460V182TC $1,703.43
CEM3615T-G51750230V, 460V184TC $1,747.75
CEM3613T-G53450230V, 460V184TC $1,839.70
CEM3614T-G21175230V, 460V184TC $1,931.66
CEM3610T-G33450230V, 460V182TC $1,986.64
CEM3710T-G7 1/21770230V, 460V213TC $2,485.78
CEM3704T-G31160230V, 460V213TC $2,522.73
CEM3709T-G7 1/23520230V, 460V213TC $2,702.50
CEM3711T-G103490230V, 460V215TC $2,733.70
CEM3714T-G101770230V, 460V215TC $2,752.58
CEM3708T-G51160230V, 460V215TC $2,794.44
CEM2333T-G151765230V, 460V254TC $4,663.70
CEM2394T-G153520230V, 460V254TC $4,996.18
CEM2276T-G7 1/21180230V, 460V254TC $5,042.15
CEM4106T-G203520230V, 460V256TC $5,378.73
CEM2334T-G201770230V, 460V256TC $5,426.34
CEM2332T-G101180230V, 460V256TC $5,600.38
CEM4107T-G253520230V, 460V284TSC $7,025.52
CEM4103T-G251775230V, 460V284TC $7,099.40
CEM4108T-G303525230V, 460V286TSC $8,081.23
CEM4104T-G301760230V, 460V286TC $8,158.40
CEM4102T-G201180230V, 460V286TC $9,444.80
CEM4110T-G401775230V, 460V324TC $10,422.53
CEM4111T-G251180230V, 460V324TC $10,690.14
CEM4109T-G403530230V, 460V324TSC $10,740.23
CEM4115T-G501775230V, 460V326TC $11,240.18
CEM4114T-G503530230V, 460V326TSC $11,621.08
CEM4117T-G301180230V, 460V326TC $12,101.34
CEM4314T-G601780230V, 460V364TC $15,661.71
CEM4316T-G751780230V, 460V365TC $18,010.38
CEM4313T-G753555230V, 460V365TSC $18,131.88
CEM4400T-G1001785230V, 460V405TC $24,526.91
CEM3607T-G1 1/21165230V, 460V182TC Contact for Pricing
CEM4310T-G603565230V, 460V364TSC Contact for Pricing
CEM4100T-G151175230V, 460V284TC Contact for Pricing
CEM3559T-G33450230V, 460V145TC Contact for Pricing
CEM3555T-G23490230V, 460V145TC Contact for Pricing
CEM3550T-G1 1/23500230V, 460V143TC Contact for Pricing
CEM3556T-G11170230V, 460V145TC Contact for Pricing
CEM3545-G13450230V, 460V56C Contact for Pricing

HVAC, NEMA Premium, three phase, TEFC, C-face foot mounted, Aegis

Features

  • Enhanced inverter protection with Class H insulation
  • Grounding ring minimizes bearing current issues
  • Built for long-term use and backed by a 3-year warranty
  • Meets NEMA MG1 Part 31.4.4.2 standards for inverter duty

Applications

  • Fans and blowers
  • Pumping systems
  • HVAC and unit handling equipment
  • Suitable for variable speed and general-purpose uses
Electrical Data
Rated Motor Output Power
15 HP
11.25 kW
Rated Motor Speed
3520 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
35.0/17.5 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
91
Nominal Power Factor
87
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
254TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
239lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
23.86"
NEMA Design
B
Degree of Protection (IP)
IP44
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
63 °C
Temp Code
-
Mechanical Data
DE Bearing
6309
NDE Bearing
6208
Shaft Diameter
1.625"
Shaft Length
3.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus EEV
Country of Origin
USA
Warranty
3-Year
