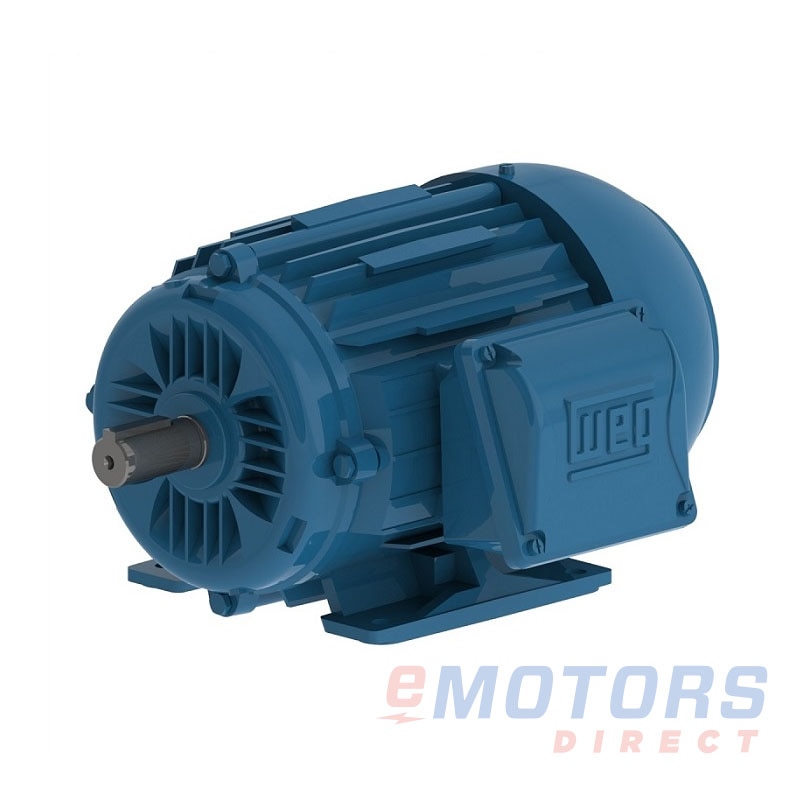

WEG ME000406W2290L

WEG · W22 Tru-Metric NEMA Premium IEC Motor
1HP 1155 90L B3 TEFC 230V,460V IEC Motor
Catalog Number: ME000406W2290L
HP
1
RPM
1200
Voltage
230V,460V
Frame
90L
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
B3

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

WEG: W22 Tru-Metric NEMA Premium IEC Motor (713)

MA300504W22315L3001790575V315L $70,182.48
MA270504W22355M/L2701790575V355L $70,880.13
MA270404W22355M/L2701790230V, 460V355L $70,880.13
MA300504W22355M/L3001790575V355M, 355L $72,621.78
MA300404W22355M/L3001790230V, 460V355M, 355L $72,621.78
MA340504W22315L3401790575V315L $75,173.81
MA340504W22355M/L3401790575V355M, 355L $80,697.77
MA340404W22355M/L3401790230V, 460V355M, 355L $80,697.77
MA350504W22355M/L3501790575V355M, 355L $81,573.50
MA350404W22355M/L3501790230V, 460V355M, 355L $81,573.50
MA380504W22355M/L3801790575V355M, 355L $81,856.14
MA380404W22355M/L3801790230V, 460V355M, 355L $81,856.14
MA350504W22315L3501790575V315L $82,673.06
MA340502W22315L3403580575V315L $82,887.09
MA250506W22355M/L2501195575V355M, 355L $84,324.84
MA250406W22355M/L2501195230V, 460V355M, 355L $84,324.84
MA430504W22355M/L4301790575V355M, 355L $86,270.75
MA430404W22355M/L4301790230V, 460V355M, 355L $86,270.75
MA350502W22355M/L3503585575V355M, 355L $86,321.39
MA350402W22355M/L3503585230V, 460V355M, 355L $86,321.39
MA380502W22355M/L3803585575V355M, 355L $87,930.69
MA380402W22355M/L3803585230V, 460V355M, 355L $87,930.69
MA270506W22355M/L2701195575V355M, 355L $88,536.84
MA270406W22355M/L2701195230V, 460V355M, 355L $88,536.84
MA430502W22355M/L4303585575V355M, 355L $90,914.06
MA430402W22355M/L4303585230V, 460V355M, 355L $90,914.06
MA300506W22355M/L3001195575V355M, 355L $91,033.32
MA300406W22355M/L3001195230V, 460V355M, 355L $91,033.32
MA480504W22355M/L4801790575V355M, 355L $92,757.00
MA480404W22355M/L4801790230V, 460V355M, 355L $92,757.00
MA300502W22355M/L3003585575V355M, 355L $95,057.43
MA300402W22355M/L3003585230V, 460V355M, 355L $95,057.43
MA340502W22355M/L3403585575V355M, 355L $97,678.08
MA340402W22355M/L3403585230V, 460V355M, 355L $97,678.08
MA340506W22355M/L3401195575V355M, 355L $100,110.84
MA340406W22355M/L3401195230V, 460V355M, 355L $100,110.84
MA220506W22355M/L2201195575V355M, 355L $103,058.26
MA220406W22355M/L2201195230V, 460V355M, 355L $103,058.26
MA200508W22355M/L200895575V355M, 355L $103,762.44
MA200408W22355M/L200895230V, 460V355M, 355L $103,762.44
MA350506W22355M/L3501195575V355M, 355L $105,765.51
MA350406W22355M/L3501195230V, 460V355M, 355L $105,765.51
MA220508W22355M/L220895575V355M, 355L $106,013.84
MA220408W22355M/L220895230V, 460V355M, 355L $106,013.84
MA380506W22355M/L3801195575V355M, 355L $109,506.96
MA380406W22355M/L3801195230V, 460V355M, 355L $109,506.96
MA250508W22355M/L250895575V355M, 355L $140,611.67
MA250408W22355M/L250895230V, 460V355M, 355L $140,611.67
MA270508W22355M/L270895575V355M, 355L $141,629.55
MA270408W22355M/L270895230V, 460V355M, 355L $141,629.55

Description

W22 IEC Tru-Metric NEMA premium efficiency motors are designed and built according to European IEC34 and IEC79 standards. These motors offer not only significantly lower energy consumption, but lower noise and vibration, higher reliability, easier maintenance and lower cost of ownership. They also fully comply with the energy efficiency requirements of the EISA 2007 (Energy Independence and Security Act 2007) from USA and EcoAction from Canada.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4, 6 and 8 poles, 60HZ, Service Factor 1.25 (up to frame 315L) / 1.15 (for frame 355M/L)
  • Voltage: 460V, 575V
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • NEMA design “N”
  • Continuous Duty (S1)
  • 104°F (40°C) ambient temperature
  • Regreasable Bearings for frames 160 and up
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1155 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
3.36/1.68 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
-
Nominal Efficiency
82.5
Nominal Power Factor
.68
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
20:1
3
General Data
Frame
90L
Enclosure
TEFC
Mounting
B3
Number of Speeds
-
Approximate Weight
55.1lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
329mm
NEMA Design
N
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6205-ZZ
NDE Bearing
6204-ZZ
Shaft Diameter
24mm
Shaft Length
50mm
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
BRAZIL
Warranty
2-Year
