WEG JM003404NPW01

WEG · W01 NEMA Premium JM& JP TEFC

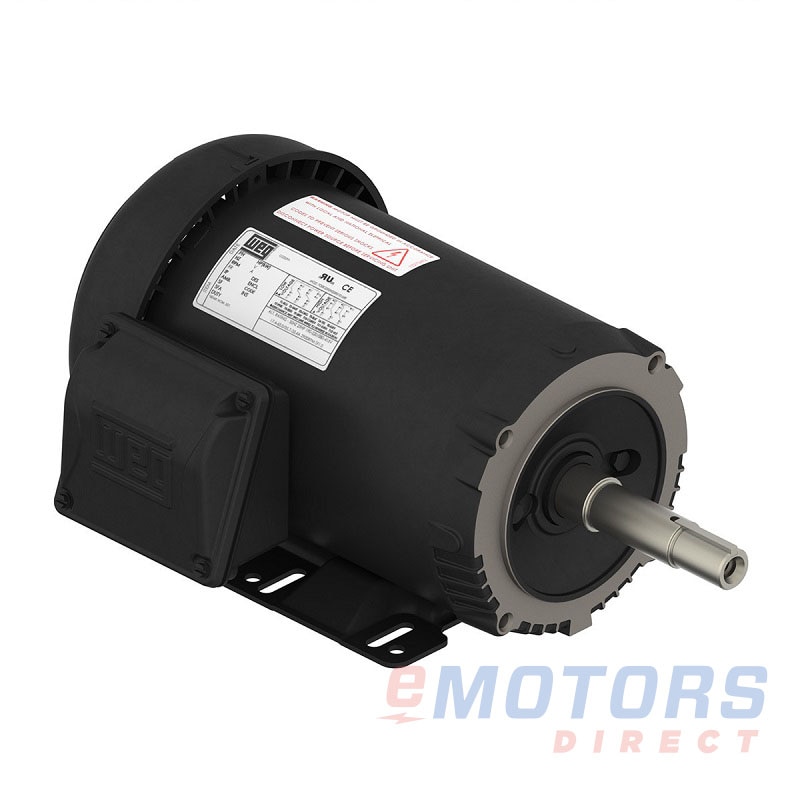

3 HP 1800 182JM TEFC 208-230V,460V Pump Motors
Catalog Number: JM003404NPW01
HP
3
RPM
1800
Voltage
208-230V,460V
Frame
182JM
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

WEG: W01 NEMA Premium JM& JP TEFC (116)

JP000504NPW0111765575V143JP $533.34
JP000502NPW0113510575V143JP $548.28
JP001504NPW011 1/21750575V145JP $605.06
JP001502NPW011 1/23520575V145JP $609.53
JP002504NPW0121745575V145JP $624.47
JP000506NPW0111145575V145JP $640.90
JP002502NPW0123520575V145JP $667.80
JP003502NPW01145JP33500575V145JP $684.23
JP003402NPW01145JP33500208-230V, 460V145JP $684.23
JP003504NPW0131765575V182JP, 184JP $752.95
JP003404NPW0131765208-230V, 460V182JP, 184JP $752.95
JP003502NPW0133515575V182JP $757.44
JP003402NPW0133515208-230V, 460V182JP, 184JP $757.44
JP001506NPW011 1/21170575V182JP $823.17
JP005504NPW0151750575V184JP $826.16
JP005404NPW0151750208-230V, 460V184JP $826.16
JP005502NPW0153500575V182JP, 184JP $835.12
JP005402NPW0153500208-230V, 460V182JP, 184JP $835.12
JP002506NPW0121170575V184JP $915.79
JP002406NPW0121170208-230V, 460V184JP $915.79
JP007502NPW01184JP7 1/23480575V184JP $1,090.58
JP007402NPW01184JP7 1/23480208-230V, 460V184JP $1,090.58
JP007504NPW017 1/21770575V213JP $1,163.79
JP007404NPW017 1/21770208-230V, 460V213JP $1,163.79
JP003506NPW0131175575V213JP $1,235.50
JP003406NPW0131175208-230V, 460V213JP $1,235.50
JP007502NPW017 1/23530575V213JP $1,254.92
JP007402NPW017 1/23530208-230V, 460V213JP $1,254.92
JP010504NPW01101760575V215JP $1,398.34
JP010404NPW01101760208-230V, 460V215JP $1,398.34
JP010502NPW01103530575V215JP $1,411.78
JP010402NPW01103530208-230V, 460V215JP $1,411.78
JP005506NPW0151175575V215JP $1,531.30
JP005406NPW0151175208-230V, 460V215JP $1,531.30
JP015502NPW01215JP153525575V215JP $1,683.68
JP015402NPW01215JP153525208-230V, 460V215JP $1,683.68
JP015504NPW01151770575V254JP $1,988.46
JP015404NPW01151770208-230V, 460V254JP $1,988.46
JP015502NPW01153520575V254JP $2,024.31
JP015402NPW01153520208-230V, 460V254JP $2,024.31
JP007506NPW017 1/21175575V254JP $2,281.27
JP007406NPW017 1/21175208-230V, 460V254JP $2,281.27
JP020504NPW01201765575V256JP $2,318.61
JP020404NPW01201765208-230V, 460V256JP $2,318.61
JP020502NPW01203515575V256JP $2,469.51
JP020402NPW01203515208-230V, 460V256JP $2,469.51
JP010506NPW01101175575V256JP $2,488.94
JP010406NPW01101175208-230V, 460V256JP $2,488.94
JP025502NPW01253530575V256JP $2,919.19
JP025402NPW01253530208-230V, 460V256JP $2,919.19

Description

The W01 “JM” (mechanical seal) motors were especially developed for application on pumps with direct coupling. They meet NEMA Premium efficiency, ensure maximum performance and robustness in environments where dirt and humidity are minimal.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4 and 6 pole, 60Hz, Service Factor 1.15
  • Voltage: 230/460V, 575V
  • Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
  • Die cast aluminum squirrel cage rotor
  • V’Ring sealing
  • Ball bearings
  • 1045 heat treated and stress relieved carbon steel shaft
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • 575V rated motors have Spike Resistant WISE wire.
    • Protects against IGBT voltage spikes up to 2400V.
    • Exceeds NEMA MG1 Part 31.4.4.2
  • Dip and Bake Insulation system
  • NEMA design “B”
  • Continuous duty (S1)
  • 104ºF (40ºC) ambient temperature
  • Altitude: 3300 ft (1000m)
  • Double Gasketed terminal box
  • Paint: Synthetic enamel alkyd resin base
  • Paint Plan: 207A - Frame 182/4JM & 213/215JM
  • Color: Munsell N1 - Flat BlackAll frames have dual mounting

Electrical Data
Rated Motor Output Power
3 HP
2.2 kW
Rated Motor Speed
1765 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
7.62/3.81 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
8.43
Service Factor
1.15
KVA Code
-
Nominal Efficiency
89.5
Nominal Power Factor
81
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
4:1
15
General Data
Frame
182JM
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
80.3lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
19.409"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6207-ZZ
NDE Bearing
6205-ZZ
Shaft Diameter
0.875"
Shaft Length
4.3"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, cULus
Country of Origin
BRAZIL
Warranty
2-Year
