WEG CT010404NPW01

WEG · W01 NEMA Premium TEFC 140 and Up Frame

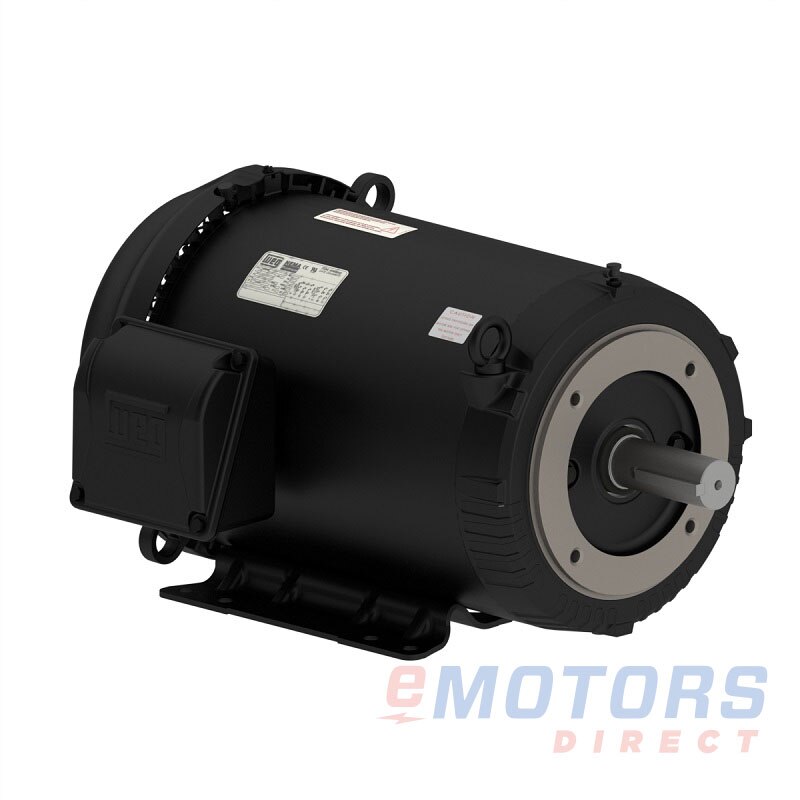

10 HP 1800 215TC TEFC 208-230V,460V General Purpose AC Motors
Catalog Number: CT010404NPW01
HP
10
RPM
1800
Voltage
208-230V,460V
Frame
215TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid
USD$1,703.28

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

WEG: W01 NEMA Premium TEFC 140 and Up Frame (139)

HT000204NPW0111800200V, 400V143T, 145T $462.84
HT001204NPW011 1/21800200V, 400V143T, 145T $516.31
CT000404NPW01V11800208-230V, 460V143TC, 145TC $519.66
HT002204NPW0121800200V, 400V143T, 145T $538.04
CT001502NPW01V1 1/23600575V143TC, 145TC $591.51
CT002502NPW01V23600575V143TC, 145TC $646.65
HT003204NPW0131800200V, 400V182T, 184T $683.42
CT003404NPW01V31800208-230V, 460V182TC, 184TC $763.61
CT003504NPW01V31765575V182TC, 184TC $763.61
CT003502NPW01V33515575V182TC, 184TC $768.63
CT003402NPW01V33515230V, 460V182TC, 184TC $768.63
HT005204NPW0151800200V, 400V182T, 184T $776.99
CT005502NPW01V53600575V182TC, 184TC $852.18
CT005504NPW01V51800575V182TC, 184TC $878.91
CT005404NPW01V51800208-230V, 460V182TC, 184TC $878.91
CT007502NPW01184TV7 1/23600575V182TC, 184TC $1,015.92
TS003102SW0133600208-230V182T, 184T $1,020.95
HT007204NPW017 1/21800200V, 400V213T, 215T $1,074.41
TS003104W0131800208-230V182T, 184T $1,121.19
CT007504NPW01V7 1/21800575V213TC, 215TC $1,166.31
CT007404NPW01V7 1/21800208-230V, 460V213TC, 215TC $1,166.31
TS005102W0153600208-230V182T, 184T $1,311.69
HT010204NPW01101760208V213T, 215T $1,346.76
CT010502NPW01V103600575V213TC, 215TC $1,368.50
CT010402NPW01V103600208-230V, 460V213TC, 215TC $1,368.50
TS005104W0151800208-230V182T, 184T $1,385.21
TS007102W017 1/23600208-230V182T, 184T $1,513.86
TS007102SW017 1/23600208-230V213T, 215T $1,629.17
TS007104W017 1/21800208-230V213T, 215T $1,726.08
TS010104W01101800208-230V213T, 215T $1,878.13
HT015204NPW01151800200V, 400V254T, 256T $1,888.16
TS010102W01103600208-230V213T, 215T $1,991.75
CT015502NPW01V153600575V254TC, 256TC $1,996.77
HT020204NPW01201800200V, 400V254T, 256T $2,264.12
CT020502NPW01V203600575V254TC, 256TC $2,467.97
CT007506NPW017 1/21175575V254TC $2,820.99
CT007406NPW017 1/21175208-230V, 460V254TC $2,820.99
HT020502NPW01203515575V256T $2,928.86
HT020402NPW01203515208-230V, 460V256T $2,928.86
CT020504NPW01201765575V256TC $2,989.01
CT020404NPW01201765208-230V, 460V256TC $2,989.01
HT010506NPW01101175575V256T $3,003.52
CT010506NPW01101175575V256TC $3,055.38
CT010406NPW01101175208-230V, 460V256TC $3,055.38
CT020502NPW01203515575V256TC $3,063.68
CT020402NPW01203515208-230V, 460V256TC $3,063.68
HT025502NPW01253530575V256T $3,486.83
HT025402NPW01253530208-230V, 460V256T $3,486.83
CT025502NPW01253530575V256TC $3,642.41
CT025402NPW01253530208-230V, 460V256TC $3,642.41

Description

Presenting a whole new electrical and mechanical design, the new platform of Rolled Steel motors is made to run cooler, last longer and to be easier to install and maintain. The Premium Efficiency motors meet or exceed all NEMA Premium requirements for energy efficiency. These TEFC motors are designed for operating in environments of dirt, dust, and moisture, on indoor and outdoor applications.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4 and 6 pole, 60Hz, 1.15 Service Factor
  • Voltage: 230/460V, 575V
  • Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
  • V’Ring sealing / Ball bearings
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • NEMA design “B”
  • Continuous duty (S1)
  • 104ºF (40ºC) ambient temperature
  • Altitude: 3300 ft (1000m)
  • Double Gasketed terminal box
  • All frames have dual mounting
Electrical Data
Rated Motor Output Power
10 HP
7.5 kW
Rated Motor Speed
1760 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
24.4/12.2 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
26.97
Service Factor
1.15
KVA Code
-
Nominal Efficiency
91.7
Nominal Power Factor
.84
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
4:1
15
General Data
Frame
215TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
130lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
19.291"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6208-ZZ
NDE Bearing
6206-ZZ
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, cULus
Country of Origin
BRAZIL
Warranty
2-Year

Product Line Review

Reviews for this product are combined with others in the same product line, as they share the same design but differ in specifications like HP or RPM.

5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0

There are no reviews for this product yet.

Be the first to write a review

About WEG

With flagship product lines, such as the WEG Pump Motor line, WEG motors are trusted in the waste and water treatment, mining, chemical processing, oil & gas, and manufacturing industries.

WEG Motors distributes efficient technology that drives sustainable growth for your business. They serve industries such as oil and gas, pulp and paper, power generation, food and beverage, and more.

Werner Ricardo Voigt, Eggon João da Silva and Geraldo Werninghaus joined forces in 1961 and founded Eletromotores Jaraguá. Eventually changing its name to honour the three founders, WEG has now become one of the world’s largest manufacturers of electric motors and controls. Operating out of Duluth, Georgia, WEG motors now has seven distribution centres throughout Canada and the United States.

WEG’s commitment to growth, innovation, and teamwork has been the driving factor behind their forward movement. Now producing over 21 million individual items annually, WEG motors attributes this success to their state-of-the-art facilities and cutting-edge processes. They will always strive to develop and improve on their industrial electrical solutions.
