Product images are for reference only. Please review product specifications for the most accurate and detailed information.

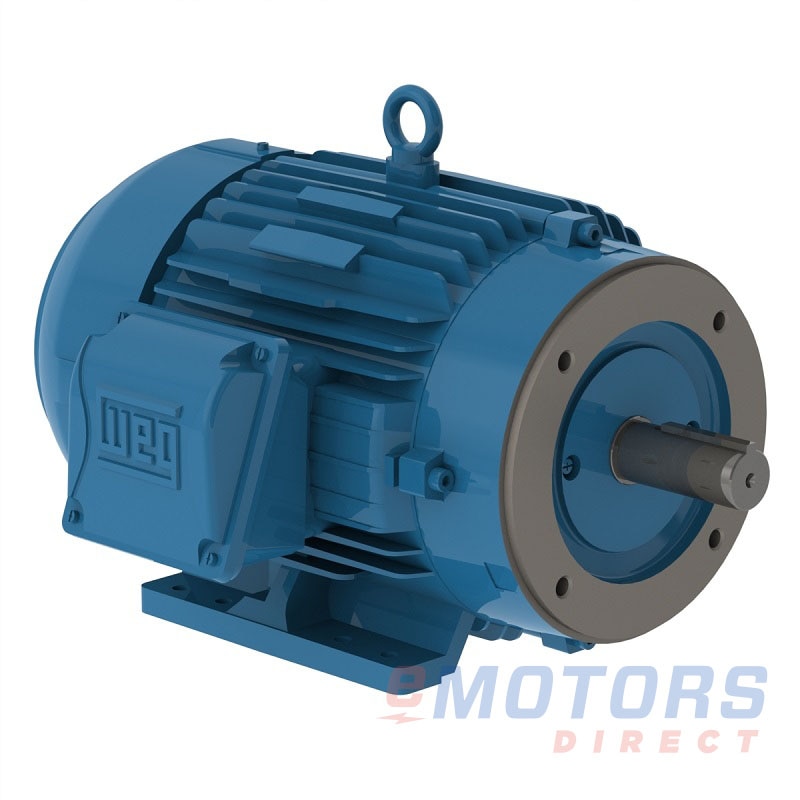

WEG CT007404NPW22

WEG · W22 NEMA Premium TEFC
5.0
7 1/2 HP 1800 213TC TEFC 230V,460V General Purpose AC Motors
Catalog Number: CT007404NPW22
HP
7 1/2
RPM
1800
Voltage
230V,460V
Frame
213TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

WEG: W22 NEMA Premium TEFC (1297)

CT300502NPRBW22587TS3003580575V586TSC, 587TSC $73,409.76
CT300502NPBBW22587TS3003580575V586TSC, 587TSC $73,409.76
CT300402NPRBW22587TS3003580230V, 460V586TSC, 587TSC $73,409.76
CT300402NPBBW22587TS3003580230V, 460V586TSC, 587TSC $73,409.76
CT350502NPRBW22587TS3503580575V586TSC, 587TSC $82,161.89
CT350502NPBBW22587TS3503580575V586TSC, 587TSC $82,161.89
CT350402NPRBW22587TS3503580230V, 460V586TSC, 587TSC $82,161.89
CT350402NPBBW22587TS3503580230V, 460V586TSC, 587TSC $82,161.89
CT400502NPRBW22587TS4003580575V586TSC, 587TSC $88,112.19
CT400502NPBBW22587TS4003580575V586TSC, 587TSC $88,112.19
CT400402NPRBW22587TS4003580230V, 460V586TSC, 587TSC $88,112.19
CT400402NPBBW22587TS4003580230V, 460V586TSC, 587TSC $88,112.19
DT500504NPRBW22587T5001789575V586TD, 587TD $91,845.18
DT500504NPBBW22587T5001789575V586TD, 587TD $91,845.18
CT450502NPRBW22587TS4503575575V586TSC, 587TSC $92,277.75
CT450502NPBBW22587TS4503575575V586TSC, 587TSC $92,277.75
CT450402NPRBW22587TS4503575230V, 460V586TSC, 587TSC $92,277.75
CT450402NPBBW22587TS4503575230V, 460V586TSC, 587TSC $92,277.75
DT550504NPRBW225501790575V586TD, 587TD $92,713.62
DT550504NPBBW225501790575V586TD, 587TD $92,713.62
DT550502NPRBW225503585575V588TSD, 589TSD $95,703.65
DT550502NPBBW225503585575V588TSD, 589TSD $95,703.65
CT500502NPRBW225003580575V586TSC, 587TSC $96,646.37
CT500502NPBBW225003580575V586TSC, 587TSC $96,646.37
CT500402NPRBW225003580230V, 460V586TSC, 587TSC $96,646.37
CT500402NPBBW225003580230V, 460V586TSC, 587TSC $96,646.37
DT600504NPRBW226001790575V586TD, 587TD $97,466.94
DT600504NPBBW226001790575V586TD, 587TD $97,466.94
DT500502NPRBW225003580575V586TSD, 587TSD $97,613.88
DT500502NPBBW225003580575V586TSD, 587TSD $97,613.88
DT600502NPRBW226003585575V588TSD, 589TSD $97,726.16
DT600502NPBBW226003585575V588TSD, 589TSD $97,726.16
DT650504NPRBW226501790575V588TD, 589TD $102,910.38
DT650504NPBBW226501790575V588TD, 589TD $102,910.38
DT650502NPRBW226501790575V588TSD, 589TSD $103,257.11
DT650502NPBBW226501790575V588TSD, 589TSD $103,257.11
DT700504NPRBW227001790575V588TD, 589TD $105,821.14
DT700504NPBBW227001790575V588TD, 589TD $105,821.14
DT700502NPRBW227003585575V588TSD, 589TSD $107,614.17
DT700502NPBBW227003585575V588TSD, 589TSD $107,614.17
DT450508NPRBW22450895575V588TD, 589TD $108,393.45
DT450508NPBBW22450895575V588TD, 589TD $108,393.45
DT500506NPRBW225001190575V586TD, 587TD $108,784.76
DT500506NPBBW225001190575V586TD, 587TD $108,784.76
DT750504NPRBW227501790575V588TD, 589TD $109,415.45
DT750504NPBBW227501790575V588TD, 589TD $109,415.45
DT550506NPRBW225501190575V588TD, 589TD $110,863.39
DT550506NPBBW225501190575V588TD, 589TD $110,863.39
DT600506NPRBW226001190575V588TD, 589TD $115,544.07
DT600506NPBBW226001190575V588TD, 589TD $115,544.07

Description

High performance with maximum energy efficiency is the goal of the new WEG W22 electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime has been the basis of development. A design created to maximize performance and energy savings.New Cooling System Redesigned to provide improved airflow through all motor frames keeping low operational temperatures and assuring reliability and extended lifetime.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4, 6 and 8 pole, 60Hz, 1.25 (up to 100HP) / 1.15 (from 125HP and up) Service Factor
  • Voltage: 230/460V, 575V
  • Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • NEMA design “B”
  • Continuous duty (S1)
  • 104ºF (40ºC) ambient temperature
  • Altitude: 3300 ft (1000m)
  • Double Gasketed terminal box
  • Re-configurable Terminal Box for frames 445/7T and up
Electrical Data
Rated Motor Output Power
7 1/2 HP
5.5 kW
Rated Motor Speed
1765 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
18/9 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
-
Nominal Efficiency
91.7
Nominal Power Factor
.82
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
20:1
3
General Data
Frame
213TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
154lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
19.517"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6308-ZZ
NDE Bearing
6207-ZZ
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
BRAZIL
Warranty
2-Year
