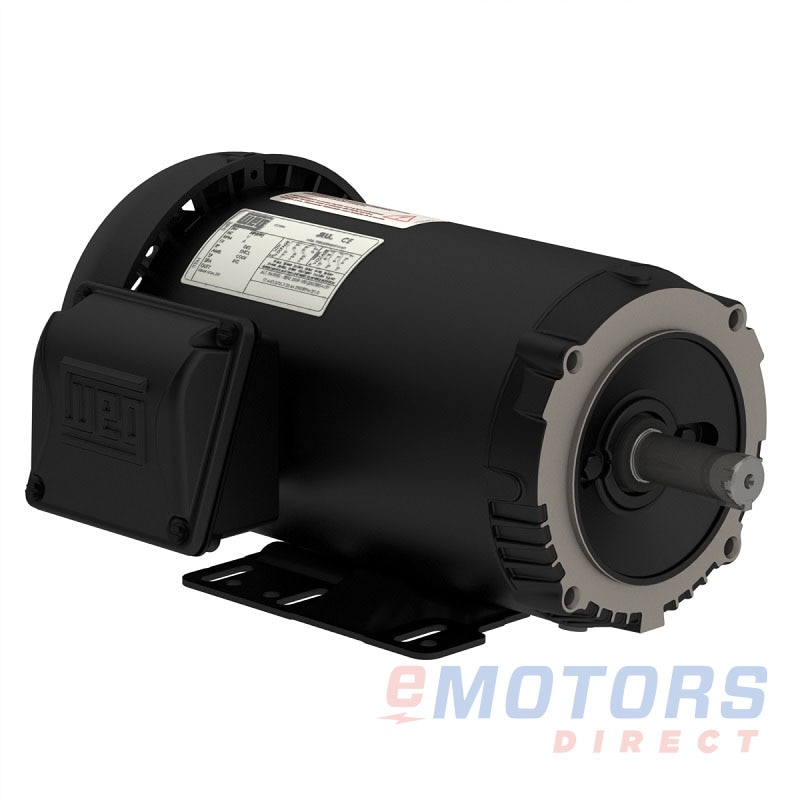

WEG CT002504NPW01

WEG · W01 NEMA Premium TEFC 140 and Up Frame
2 HP 1800 145TC TEFC 575V General Purpose AC Motors
Catalog Number: CT002504NPW01
HP
2
RPM
1800
Voltage
575V
Frame
145TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid
USD$784.17

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

WEG: W01 NEMA Premium TEFC 140 and Up Frame (139)

HT000204NPW0111800200V, 400V143T, 145T $338.24
HT001204NPW011 1/21800200V, 400V143T, 145T $377.31
CT000404NPW01V11800208-230V, 460V143TC, 145TC $379.75
HT002204NPW0121800200V, 400V143T, 145T $393.18
CT001502NPW01V1 1/23600575V143TC, 145TC $432.27
CT002502NPW01V23600575V143TC, 145TC $472.55
HT003204NPW0131800200V, 400V182T, 184T $499.42
CT003404NPW01V31800208-230V, 460V182TC, 184TC $558.03
CT003504NPW01V31765575V182TC, 184TC $558.03
CT003502NPW01V33515575V182TC, 184TC $561.69
CT003402NPW01V33515230V, 460V182TC, 184TC $561.69
HT005204NPW0151800200V, 400V182T, 184T $567.80
CT005502NPW01V53600575V182TC, 184TC $622.74
CT005504NPW01V51800575V182TC, 184TC $642.28
CT005404NPW01V51800208-230V, 460V182TC, 184TC $642.28
CT007502NPW01184TV7 1/23600575V182TC, 184TC $742.41
TS003102SW0133600208-230V182T, 184T $746.08
HT007204NPW017 1/21800200V, 400V213T, 215T $785.16
TS003104W0131800208-230V182T, 184T $819.35
CT007504NPW01V7 1/21800575V213TC, 215TC $852.31
CT007404NPW01V7 1/21800208-230V, 460V213TC, 215TC $852.31
TS005102W0153600208-230V182T, 184T $958.55
HT010204NPW01101760208V213T, 215T $984.18
CT010502NPW01V103600575V213TC, 215TC $1,000.05
CT010402NPW01V103600208-230V, 460V213TC, 215TC $1,000.05
TS005104W0151800208-230V182T, 184T $1,012.26
TS007102W017 1/23600208-230V182T, 184T $1,106.29
TS007102SW017 1/23600208-230V213T, 215T $1,190.55
TS007104W017 1/21800208-230V213T, 215T $1,261.37
TS010104W01101800208-230V213T, 215T $1,372.49
HT015204NPW01151800200V, 400V254T, 256T $1,379.82
TS010102W01103600208-230V213T, 215T $1,455.52
CT015502NPW01V153600575V254TC, 256TC $1,459.18
HT020204NPW01201800200V, 400V254T, 256T $1,654.55
CT020502NPW01V203600575V254TC, 256TC $1,803.53
CT007506NPW017 1/21175575V254TC $2,061.51
CT007406NPW017 1/21175208-230V, 460V254TC $2,061.51
HT020502NPW01203515575V256T $2,140.33
HT020402NPW01203515208-230V, 460V256T $2,140.33
CT020504NPW01201765575V256TC $2,184.29
CT020404NPW01201765208-230V, 460V256TC $2,184.29
HT010506NPW01101175575V256T $2,194.91
CT010506NPW01101175575V256TC $2,232.80
CT010406NPW01101175208-230V, 460V256TC $2,232.80
CT020502NPW01203515575V256TC $2,238.85
CT020402NPW01203515208-230V, 460V256TC $2,238.85
HT025502NPW01253530575V256T $2,548.08
HT025402NPW01253530208-230V, 460V256T $2,548.08
CT025502NPW01253530575V256TC $2,661.78
CT025402NPW01253530208-230V, 460V256TC $2,661.78

Description

Presenting a whole new electrical and mechanical design, the new platform of Rolled Steel motors is made to run cooler, last longer and to be easier to install and maintain. The Premium Efficiency motors meet or exceed all NEMA Premium requirements for energy efficiency. These TEFC motors are designed for operating in environments of dirt, dust, and moisture, on indoor and outdoor applications.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4 and 6 pole, 60Hz, 1.15 Service Factor
  • Voltage: 230/460V, 575V
  • Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
  • V’Ring sealing / Ball bearings
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • NEMA design “B”
  • Continuous duty (S1)
  • 104ºF (40ºC) ambient temperature
  • Altitude: 3300 ft (1000m)
  • Double Gasketed terminal box
  • All frames have dual mounting
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
1745 RPM
Rated Motor Voltage
575V
Rated Motor Current
2.18 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
86.5
Nominal Power Factor
.8
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
4:1
15
General Data
Frame
145TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
42.3lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
13.976"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6205-ZZ
NDE Bearing
6203-ZZ
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, cULus
Country of Origin
BRAZIL
Warranty
2-Year
