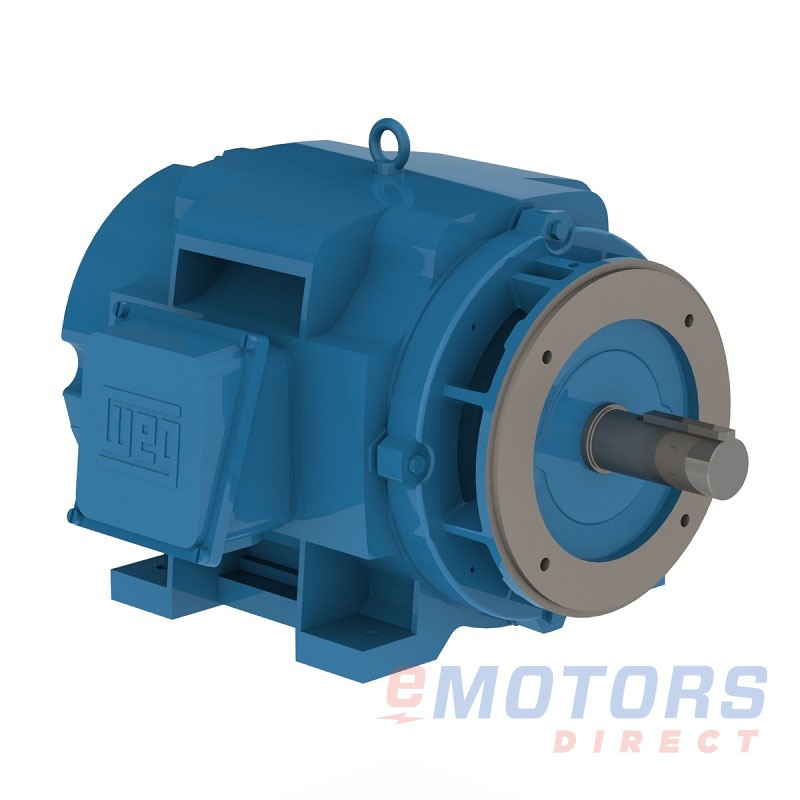

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

WEG CP025504NP

WEG · W40 NEMA Premium ODP
25 HP 1800 284TC ODP 575V General Purpose AC Motors
Catalog Number: CP025504NP
HP
25
RPM
1800
Voltage
575V
Frame
284TC
Phase
3
Enclosure
ODP
Material
Cast Iron
Mounting
C-Face / Rigid

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

WEG: W40 NEMA Premium ODP (220)

DD015504NP151775575V254TD $2,326.53
DD020502NP203520575V254TD $2,650.34
DD020504NP201770575V256TD $2,890.23
DD025504NP251770575V284TD $2,957.13
DD025502NP253530575V256TD $3,344.54
DD030504NP301770575V286TD $3,797.43
DD030502NP303540575V284TSD $4,077.54
DD040504NP401775575V324TD $4,126.32
DD015506NP151180575V284TD $4,127.01
DD040502NP403535575V286TSD $4,827.29
DD020506NP201175575V286TD $4,917.86
DD025506NP251180575V324TD $5,225.82
DD050504NP501775575V326TD $5,350.56
DD050502NP503555575V324TSD $5,659.23
DD030506NP301180575V326TD $5,726.81
DD060502NP603555575V326TSD $6,606.84
DD060504NPW40601780575V364TD $7,518.23
DD075504NPW40751780575V365TD $8,836.53
DD040506NPW40401185575V364TD $8,838.62
DD075502NPW40753565575V364TSD $9,024.03
DD050506NPW40501185575V365TD $9,177.26
DD060506NPW40601185575V404TD $10,754.76
DD075506NPW40751185575V405TD $10,959.62
DD100504NPW401001780575V404TD $11,040.44
DD100404NPW401001780208-230V, 460V405TD $11,040.44
DD100502NPW401003560575V365TSD $12,905.01
DD125504NPW401251780575V405TD $13,461.74
DD125404NPW401251780208-230V, 460V405TD $13,461.74
DD125502NPW401253560575V404TSD $15,485.87
DD125402NPW401253560208-230V, 460V404TSD $15,485.87
DD150504NPW401501785575V444TD $18,346.59
DD150404NPW401501785208-230V, 460V444TD $18,346.59
DD100506NPW401001190575V444TD $19,034.81
DD100406NPW401001190208-230V, 460V444TD $19,034.81
DD150502NPW401503555575V405TSD $19,922.27
DD150402NPW401503555208-230V, 460V405TSD $19,922.27
DD125506NPW401251190575V445TD $19,941.68
DD125406NPW401251190208-230V, 460V445TD $19,941.68
DD150506NPW401501190575V445TD $21,130.43
DD150406NPW401501190208-230V, 460V445TD $21,130.43
DD200504NPW402001785575V445TD $22,110.62
DD200404NPW402001785208-230V, 460V445TD $22,110.62
DD200502NPW402003570575V444TSD $26,098.68
DD200402NPW402003570208-230V, 460V444TSD $26,098.68
DD250504NPW402501780575V445TD $26,922.14
DD250404NPW402501780208-230V, 460V445TD $26,922.14
DD250402NPW402503570208-230V, 460V445TSD $29,194.59
DD250502NPW402503570575V445TSD $30,978.14
DD300502NPW403003570575V445TSD $36,111.23
DD300402NPW403003570208-230V, 460V445TSD $36,111.23

Description

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness, and durability. Widely used in applications such as compressors, pumps, and chillers, the W40 line meets or exceeds the efficiency levels determined by International Standards and the minimum efficiency level programs in force worldwide.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4 and 6 pole, 60HZ, Service Factor 1.15
  • Voltage: 230/460V, 575V
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • NEMA design “B”
  • Continuous Duty (S1)
  • 104°F (40°C) ambient temperature
  • Regreasable Bearings
Electrical Data
Rated Motor Output Power
25 HP
18.5 kW
Rated Motor Speed
1770 RPM
Rated Motor Voltage
575V
Rated Motor Current
23.9 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
93.6
Nominal Power Factor
.83
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:1
6
Constant Torque
4:1
15
General Data
Frame
284TC
Enclosure
ODP
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
342lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
23.386"
NEMA Design
B
Degree of Protection (IP)
IP23
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6311-ZZ
NDE Bearing
6211-ZZ
Shaft Diameter
1.875"
Shaft Length
4.6"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
BRAZIL
Warranty
2-Year
