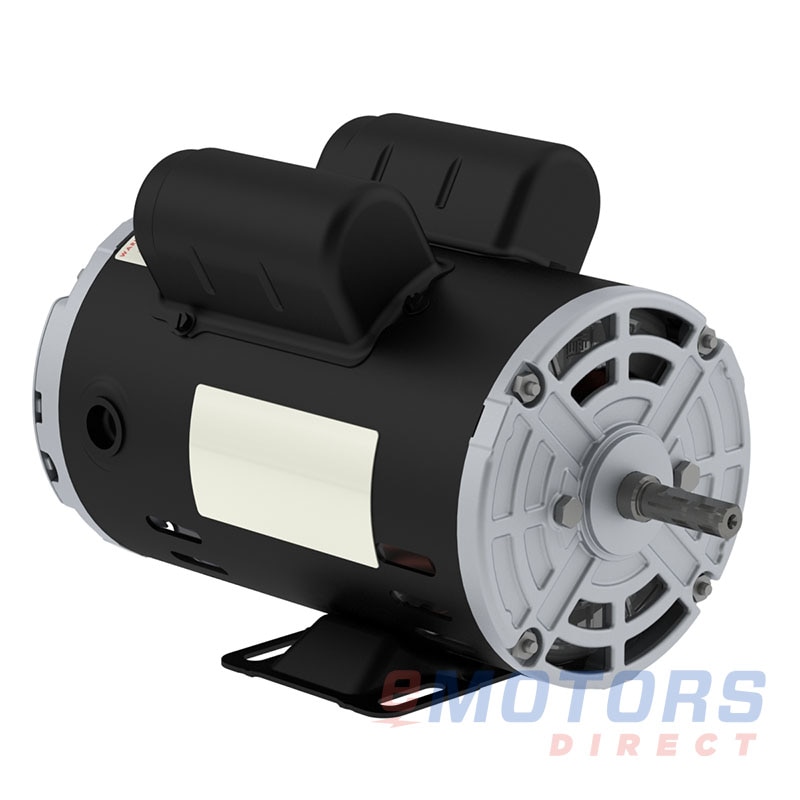

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

WEG CBF.25104W01

WEG
1/4 HP 1800 115V 48 General Purpose AC Motors
Catalog Number: CBF.25104W01
HP
1/4
RPM
1800
Voltage
115V
Frame
48
Phase
-
Enclosure
-
Material
-
Mounting
Rigid
USD$292.84

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
1/4 HP
.1875 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V
Rated Motor Current
-
Phase
-
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
-
Mounting
Rigid
Number of Speeds
-
Approximate Weight
20lb
Double Drilled
No
Frame Material
-
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
BRAZIL
Warranty
2-YEAR
