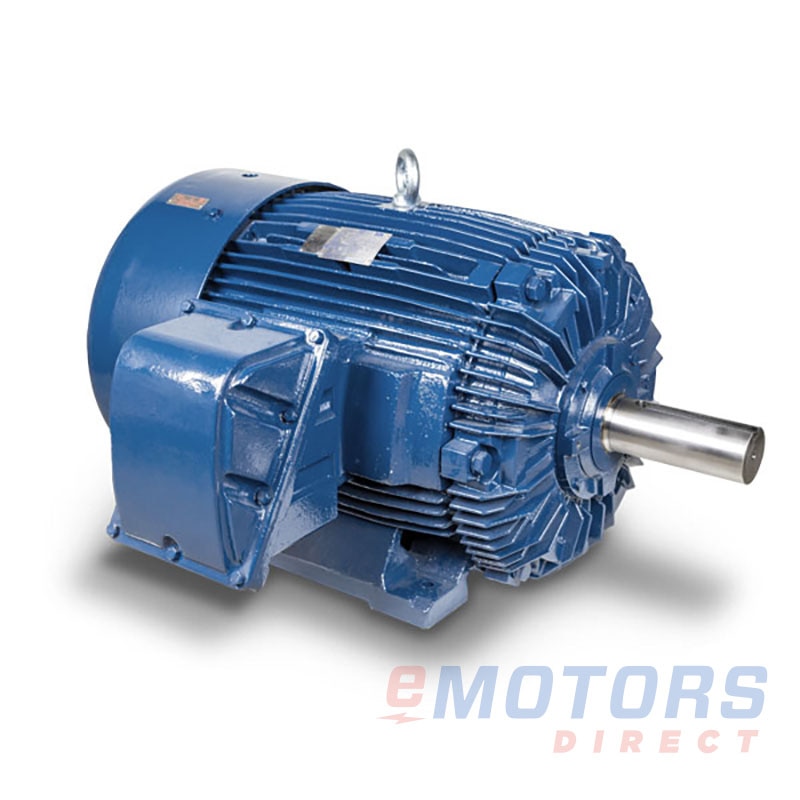

TECO-Westinghouse XH0258

TECO Westinghouse · Optim TEXP
25HP 900 326T TEFC-XP 230V/460V Explosion Proof
Catalog Number: XH0258
Alternative Number: XH02508TE2, XP0258
HP
25
RPM
900
Voltage
230V,460V
Frame
326T
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Optim® TEXP motors are manufactured to operate many types of machinery (including all dust producing machinery) in diverse industrial environments. Typical uses include areas in which flammable gases, vapors or dust may be present in the air in quantities sufficient to produce an explosion.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

TECO Westinghouse: Optim TEXP (376)

XC1/525-C1 1/23600575V143TC $1,123.14
XC1/52-C1 1/23600230V, 460V143TC $1,123.14
XC1/545-C1 1/21800575V145TC $1,126.32
XC1/54-C1 1/21800230V, 460V145TC $1,126.32
XC00325-C33600575V182TC $1,411.36
XC0032-C33600230V, 460V182TC $1,411.36
XC1/565-C1 1/21200575V182TC $1,490.11
XC1/56-C1 1/21200230V, 460V182TC $1,490.11
XC00525-C53600575V184TC $1,492.24
XC0052-C53600230V, 460V184TC $1,492.24
XC0034-C31800230V, 460V182TC $1,495.43
XC00345-C31800575V182TC $1,495.88
XC00545-C51800575V184TC $1,528.42
XC0054-C51800230V, 460V184TC $1,528.88
XC1/585-C1 1/2900575V184TC $1,704.00
XC1/58-C1 1/2900230V, 460V184TC $1,704.00
XC7/525-C7 1/23600575V213TC $1,893.53
XC7/52-C7 1/23600230V, 460V213TC $1,893.53
XC7/545-C7 1/21800575V213TC $2,041.44
XC7/54-C7 1/21800230V, 460V213TC $2,041.44
XC00365-C31200575V213TC $2,044.64
XC0036-C31200230V, 460V213TC $2,044.64
XC00285-C2900575V213TC $2,071.25
XC01025-C103600575V215TC $2,121.26
XC0102-C103600230V, 460V215TC $2,121.26
XC00565-C51200575V215TC $2,176.59
XC0056-C51200230V, 460V215TC $2,176.59
XC01045-C101800575V215TC $2,285.14
XC0104-C101800230V, 460V215TC $2,285.83
XC00385-C3900575V215TC $2,470.30
XC0038-C3900230V, 460V215TC $2,470.30
XC7/565-C7 1/21200575V254TC $2,898.94
XC7/56-C7 1/21200230V, 460V254TC $2,898.94
XC01525-C153600575V254TC $2,906.38
XC0152-C153600230V, 460V254TC $2,906.38
XC01545-C151800575V254TC $2,976.61
XC0154-C151800230V, 460V254TC $2,977.51
XC01065-C101200575V256TC $3,109.64
XC0106-C101200230V, 460V256TC $3,109.64
XC02025-C203600575V256TC $3,244.79
XC0202-C203600230V, 460V256TC $3,245.76
XC02045-C201800575V256TC $3,319.28
XC0204-C201800230V, 460V256TC $3,319.28
XC00585-C5900575V254TC $3,442.73
XC0058-C5900230V, 460V254TC $3,442.73
XC7/585-C7 1/2900575V256TC $4,474.96
XH0108-C10900230V, 460V284TC $5,711.09
XH0158-C15900230V, 460V286TC $5,992.04
XH02085-C20900575V324TC $7,155.94
XH0208-C20900230V, 460V324TC $7,155.94

Description

TECO-Westinghouse OPTIM TEXP motors are designed and manufactured to operate many types of machinery in diverse industrial environments. Typical uses include areas in which flammable gases, vapors or dust may be present in the air in quantities sufficient to produce explosive or ignitable mixtures.

Feature

  • Available from 1-400 HP; 2, 4, 6 & 8 Pole
  • Re-greaseable Provisions Frames 280TS/320T and Larger
  • CSA/UL Certified for Class I, Div 1, Group C & D and Class II, Div 1, Groups E, F & G
  • Speed Ranges up to 10:1 CT, and 20:1 VT. Refer to datasheet for rating specific turn down ratios
  • KLIXON® 9700K Temperature Limiting Device
Electrical Data
Rated Motor Output Power
25 HP
18.75 kW
Rated Motor Speed
900 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
65.3/32.6 AMP
Phase
3
Poles
8
Locked Rotor Current
365.00/182.50 AMP
Fl Current @ 208V
72.47 AMP
Service Factor
1.15
KVA Code
G
Nominal Efficiency
90.2
Nominal Power Factor
79.5
Leads (Qty, Size)
1
Frequency
60 Hz
Connection
Delta
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
326T
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
781lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
C
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-40 to 40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6312
NDE Bearing
6212
Shaft Diameter
-
Shaft Length
-
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
T3B
Temp Code (VFD Power)
T3B
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
