Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New

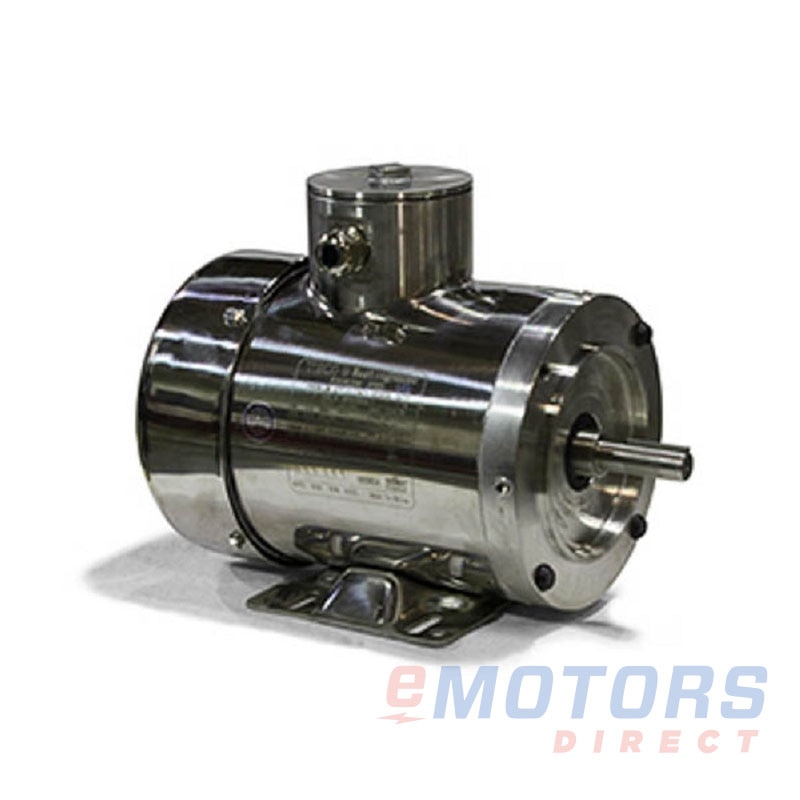

TECO-Westinghouse WFP0014C

TECO Westinghouse · Stainless Steel Washdown Motor
5.0
1 HP 1800 56C TEFC 230V|460V washdown
Catalog Number: WFP0014C
HP
1
RPM
1800
Voltage
230V,460V
Frame
56C
Phase
3
Enclosure
TEFC
Material
Stainless Steel
Mounting
C-Face / Rigid

Product-line overview

Introducing the TECO Westinghouse Stainless Steel Washdown Motor Line, a pinnacle of durability and reliability tailored for a spectrum of demanding applications. Engineered to withstand high-pressure spray downs, this motor line is an ideal choice for environments where cleanliness and resilience are paramount. Specifically crafted for the rigorous demands of food processing and packaging industries, as well as marine duty applications, these motors ensure unwavering performance in challenging conditions. With a power range from 1/2 to 10HP, operating at 60Hz with voltage options of 230/460V or 575V, these motors offer versatility in adapting to various electrical configurations. The horizontal F1 mount allows for easy installation across different setups. Boasting a Totally Enclosed Fan Cooled IP66 design, these motors provide robust protection against water and contaminants, offering longevity and efficiency. Operating at speeds of 3600 and 1800 RPM, combined with NEMA Premium Efficiency, the TECO Westinghouse Stainless Steel Washdown Motor Line sets a new standard for reliability and performance in industries where cleanliness and durability are non-negotiable.

Design Features:

  • 1.15 Service Factor
  • 40°C Ambient
  • Class B Temperature Rise
  • Class F Insulation
  • Continuous Duty
  • NEMA Design B Torques

Mechanical Features:

  • Stainless Steel Frame, End Brackets and Hardware
  • Grounding Terminal Inside Main Conduit Box
  • Stainless Steel Oversized Main Conduit Box – F3 Mounted (IM1001)
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • SUS304 Stainless Steel Shaft
  • Double Shielded Bearings Pre-Packed with MULTEMP SRL
  • Contact Lip Type Seal on Both Ends
  • Etched Nameplate on the Stainless Steel Frame
  • New Dual Column Design Nameplate as Standard (60/50 Hz)
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
  • Inverter Duty Speed Range: 10:1 Variable Torque, 4:1 Constant Torque
  • 9 Leads
  • Two Drain Holes on Bottom of Frame and one in the C-Flange
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • Department of Energy Efficiency Certificate # CC082A
  • Encapsulated Windings as Option

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
- AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
85.5
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
36lb
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-40 to 40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205-2RS
NDE Bearing
6205-2RS
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
CHINA
Warranty
3-Year
