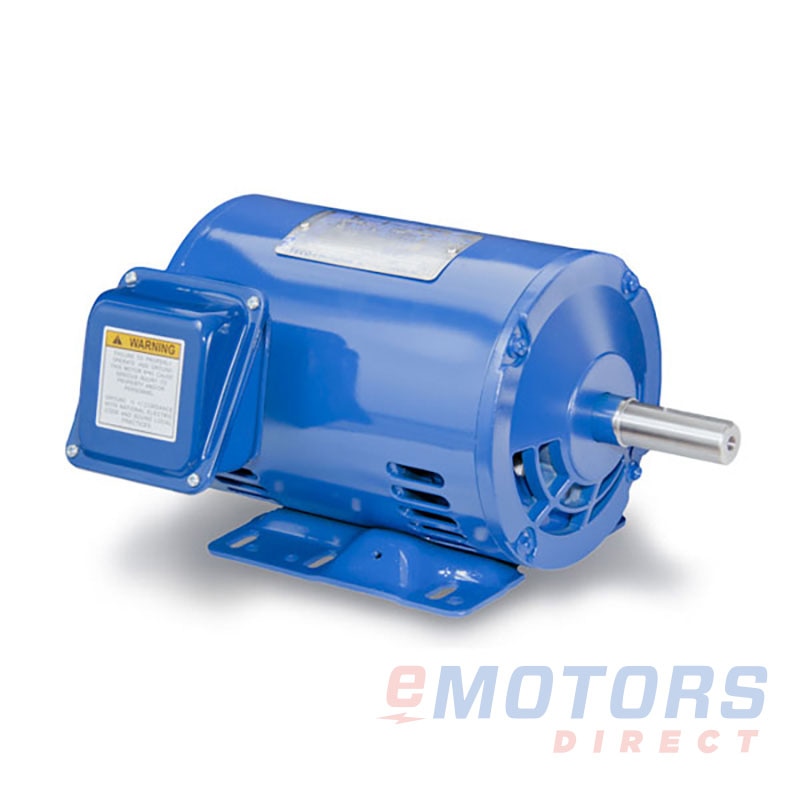

TECO-Westinghouse RD01525

TECO Westinghouse · Rolled Steel ODP
15HP 3600 215T ODP 575V General Purpose
Catalog Number: RD01525
Alternative Number: DTP01525
HP
15
RPM
3600
Voltage
575V
Frame
215T
Phase
3
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Optim® ODP motors are engineered and designed for environments where dirt and moisture are minimal. This inverter duty motor offers premium efficiency ratings that deliver significant life-cycle savings.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

TECO Westinghouse: Rolled Steel ODP (180)

RD0/245-C1/41800575V56C $402.16
RD0/24-C1/41800230V, 460V56C $402.16
RD0/325-C1/33600575V56C $408.54
RD0/32-C1/33600230V, 460V56C $408.54
RD0/345-C1/31800575V56C $414.92
RD0/34-C1/31800230V, 460V56C $414.92
RD0/525-C1/23600575V56C $423.45
RD0/52-C1/23600230V, 460V56C $423.45
RD0/545-C1/21800575V56C $429.83
RD0/54-C1/21800230V, 460V56C $429.83
RD0/725-C3/43600575V56C $434.08
RD0/72-C3/43600230V, 460V56C $434.08
RD0/745-C3/41800575V56C $437.28
RD0/74-C3/41800230V, 460V56C $437.28
RD0/365-C1/31200575V56C $454.30
RD0/36-C1/31200230V, 460V56C $454.30
RD0/565-C1/21200575V56C $496.87
RD0/56-C1/21200230V, 460V56C $496.87
RD0/765-C3/41200575V56C $549.89
RD0/76-C3/41200230V, 460V56C $549.89
RD1/545-C1 1/21800575V145TC $562.03
RD1/54-C1 1/21800230V, 460V145TC $562.03
RD1/525-C1 1/23600575V143TC $565.21
RD1/52-C1 1/23600230V, 460V143TC $565.21
RD1/565-C1 1/21200575V182TC $764.76
RD1/56-C1 1/21200230V, 460V182TC $764.76
RD7/525-C7 1/23600575V184TC $904.16
RD7/52-C7 1/23600230V, 460V184TC $904.16
RD7/545-C7 1/21800575V213TC $1,124.07
RD7/54-C7 1/21800230V, 460V213TC $1,124.07
RD7/565-C7 1/21200575V254TC $1,660.28
RD7/56-C7 1/21200230V, 460V254TC $1,660.28
RD02025-C203600575V254TC $1,846.51
RD0202-C203600230V, 460V254TC $1,846.51
RD02045-C201800575V256TC $1,911.43
RD0204-C201800230V, 460V256TC $1,911.43
RD02525-C253600575V256TC $2,116.80
RD0252-C253600230V, 460V256TC $2,116.80
RD01565-C151200575V284TC $2,621.44
RD0156-C151200230V, 460V284TC $2,621.44
RD03025-C303600575V284TSC $2,789.57
RD0302-C303600230V, 460V284TSC $2,789.57
RD02545-C251800575V284TC $2,853.42
RD0254-C251800230V, 460V284TC $2,853.42
RD02065-C201200575V286TC $2,973.67
RD0206-C201200230V, 460V286TC $2,973.67
RD03045-C301800575V286TC $3,092.86
RD0304-C301800230V, 460V286TC $3,092.86
RD04025-C403600575V286TSC $3,250.35
RD0402-C403600230V, 460V286TSC $3,250.35

Description

The Rolled Steel ODP is a durable, lightweight, feature-packed machine designed to tackle all your commercial duty requirements. From HVAC to Compressors, this NEMA premium efficient inverter duty motor has you covered. Designed for environments where dirt and moisture are minimal.

Feature

  • Available from 1-40HP; 4, 6 & 8 Pole
  • NEMA Premium Efficiency
  • Rolled Steel Frame with Cast-Iron End Brackets
  • Inverter Duty Speed Range 10:1 CT and 20:1 VT
Electrical Data
Rated Motor Output Power
15 HP
11.25 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
575V
Rated Motor Current
14.19 AMP
Phase
3
Poles
2
Locked Rotor Current
92.8 AMP
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
91
Nominal Power Factor
87
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
DELTA
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:01
3
Constant Torque
10:01
6
General Data
Frame
215T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
152lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
18.09
NEMA Design
B
Degree of Protection (IP)
IP22
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6208ZZC3
NDE Bearing
6206ZZC3
Shaft Diameter
1.375
Shaft Length
3.38
Grease Type
Multemp SRL
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
CHINA
Warranty
3-Year
