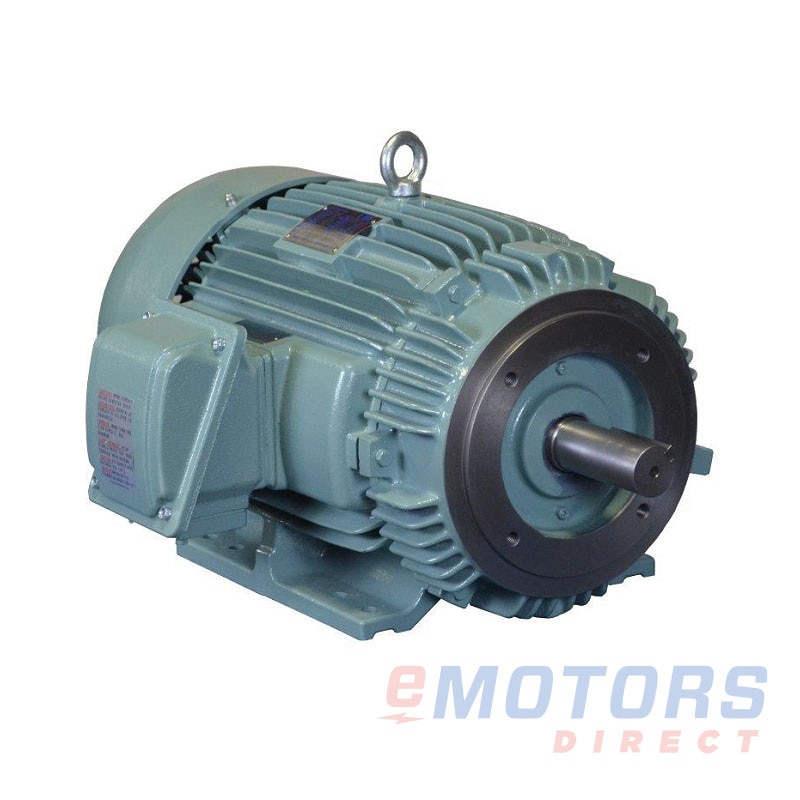

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

TECO-Westinghouse PDH0606C

TECO Westinghouse · Optim TEFC Severe Duty
60 HP 1200 404TC TEFC 230V|460V General Purpose
Catalog Number: PDH0606C
Alternative Number: PDH06006TE2NC, EC0606C, EP0606C, NP0606C, HH0606C, EP06006TE2C-HPE, APH0606C, APH06006TE4C
HP
60
RPM
1200
Voltage
230V,460V
Frame
404TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

The OPTIM TEFC is designed to meet the diverse requirements of the modern industrial world. Backed by a three-year warranty, this unit offers premium efficiency ratings that deliver significant life-cycle savings.

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

TECO Westinghouse: Optim TEFC Severe Duty (462)

EC0034C31800208-230V, 460V182TC $428.65
EC0054551800575V184T $428.65
EC005451800208-230V, 460V184T $428.65
EC00545C51800575V184TC $475.72
EC0054C51800208-230V, 460V184TC $475.72
EC003631200208-230V, 460V213T $580.57
EC7/5457 1/21800575V213T $636.20
EC7/547 1/21800208-230V, 460V213T $636.20
EC7/545C7 1/21800575V213TC $712.51
EC7/54C7 1/21800208-230V, 460V213TC $712.51
EC01045101800575V215T $728.92
EC0056551200575V215T $765.29
EC005651200208-230V, 460V215T $765.29
EC01045C101800575V215TC $816.64
EC0104C101800208-230V, 460V215TC $816.64
EC7/567 1/21200208-230V, 460V254T $1,027.75
EC01545151800575V254T $1,039.17
EC0154C151800230V, 460V254TC $1,153.29
EC0106101200208-230V, 460V256T $1,208.21
EC02045201800575V256T $1,272.40
EC0204C201800230V, 460V256TC $1,412.19
EC0104-C101800208-230V, 460V215TC $1,496.05
EC02545251800575V284T $1,614.74
EC0254251800208-230V, 460V284T $1,614.74
EC0156151200208-230V, 460V284T $1,686.07
EC03045301800575V286T $1,778.07
EC0304301800208-230V, 460V286T $1,778.07
EC0154-C151800208-230V, 460V254TC $1,935.64
EC0256251200230V, 460V324T $1,950.82
EC0206201200208-230V, 460V286T $1,983.48
EC0204-C201800208-230V, 460V256TC $2,427.31
ECX04045401800575V324T $2,438.52
ECX0404401800208-230V, 460V324T $2,438.52
ECX0256251200208-230V, 460V324T $2,457.06
ECX05045501800575V326T $2,925.65
ECX0504501800208-230V, 460V326T $2,925.65
ECX0306301200208-230V, 460V326T $3,008.38
EC0256-C251200230V, 460V324T $3,627.34
EC0604601800208-230V, 460V364T $3,883.51
EC0406401200208-230V, 460V364T $3,983.36
EC0506501200208-230V, 460V365T $4,650.23
EC07545751800575V365T $5,207.97
EC0754751800208-230V, 460V365T $5,728.77
EC1254R1251800208-230V, 460V444T $6,996.55
EC1256R1251200208-230V, 460V445T $10,971.54
EC1004-C1001800208-230V, 460V405TC $11,363.63
EC2006R2001200460V449T $15,233.77
EC1504R-C1501800460V445TC $16,315.34
EC2004R-C2001800460V447TC $19,669.69
EC1506R-C1501200460V447TC $20,170.70

Description

The OPTIM TEFC is designed to meet the diverse requirements of the modern industrial world. Backed by a three-year warranty, this unit offers premium efficiency ratings that deliver significant life-cycle savings.

Feature

  • Available from 1-800HP; 2, 4, 6 & 8 Pole
  • Inverter Speed Range 10:1 CT & 20:1 VT up to 300HP; 3:1 CT & 20:1 VT 301-600HP
Electrical Data
Rated Motor Output Power
60 HP
45 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
136.6/68.33 AMP
Phase
3
Poles
6
Locked Rotor Current
870.00/435.00 AMP
Fl Current @ 208V
151.63 AMP
Service Factor
1.15
KVA Code
G
Nominal Efficiency
94.5
Nominal Power Factor
87
Leads (Qty, Size)
12
Frequency
60 Hz
Connection
WYE/DELTA
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:01
3
Constant Torque
10:01
6
General Data
Frame
404TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
1256lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
36.3
NEMA Design
C
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3
Mechanical Data
DE Bearing
6317
NDE Bearing
6313
Shaft Diameter
2.875
Shaft Length
7.25
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class I, Div 2, Groups B, C & D
Temp Code (Sine Wave Power)
T3
Temp Code (VFD Power)
T3
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
