TECO-Westinghouse FD0034

Product-line overview

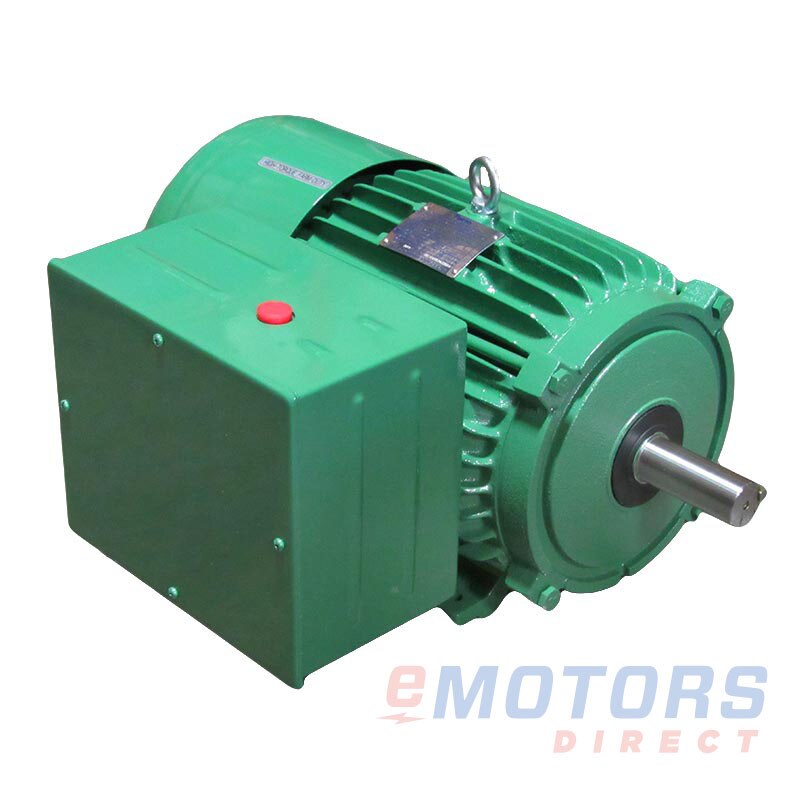

Introducing the TECO Westinghouse Farm Duty Motor Line, a rugged and reliable solution engineered to meet the diverse demands of agricultural and industrial settings. Specifically designed for a variety of applications including fans and blowers, pumps, compressors, farm equipment, and machine tools, this motor line is a versatile workhorse for the modern farm. With a power range from 1/3 to 10 HP, these motors are tailored to handle the unique challenges of farm environments. Featuring a Totally Enclosed IP44 design, they provide robust protection against dust and moisture, offering longevity and dependable performance. The horizontal F1 mount facilitates straightforward installation across different setups. Operating at 60Hz, with voltage options of 115/230V or 230V in single-phase configurations, these motors offer flexibility to adapt to varying electrical systems. With a consistent speed of 1800 RPM, the TECO Westinghouse Farm Duty Motor Line is the dependable choice for powering essential equipment on the farm and in machine tool applications, combining durability with optimal performance.

Design Features:

• 1.15 Service Factor
• 40˚C Ambient
• Continuous Duty
• Max Elevation 3300ft
• High Torque
• Class B Insulation up to 3 HP; Class F Insulation 3-10 HP
• Class B Temperature Rise
• Capacitor Start, Induction Run .33-1.5 HP; Capacitor Start, Capacitor Run 2-10 HP

Mechanical Features:

• Shielded Bearings
• Multemp SRL Grease
• Aluminum Rotor
• Cast-Iron Frame and End Brackets 1.5-10 HP, Rolled Steel for Others
• Rolled Steel Fan Cover and Terminal Box
• Plastic Fan
• Grounding Terminal Inside Main Terminal Box
• Paint System: Phenolic Rust Proof Base with Polyurethane Top Coat
• Rubber Flinger on DE
• Phenolic Alkyd Resin Varnish
• Manual Reset Overload

CSA approved, UL Recognized
