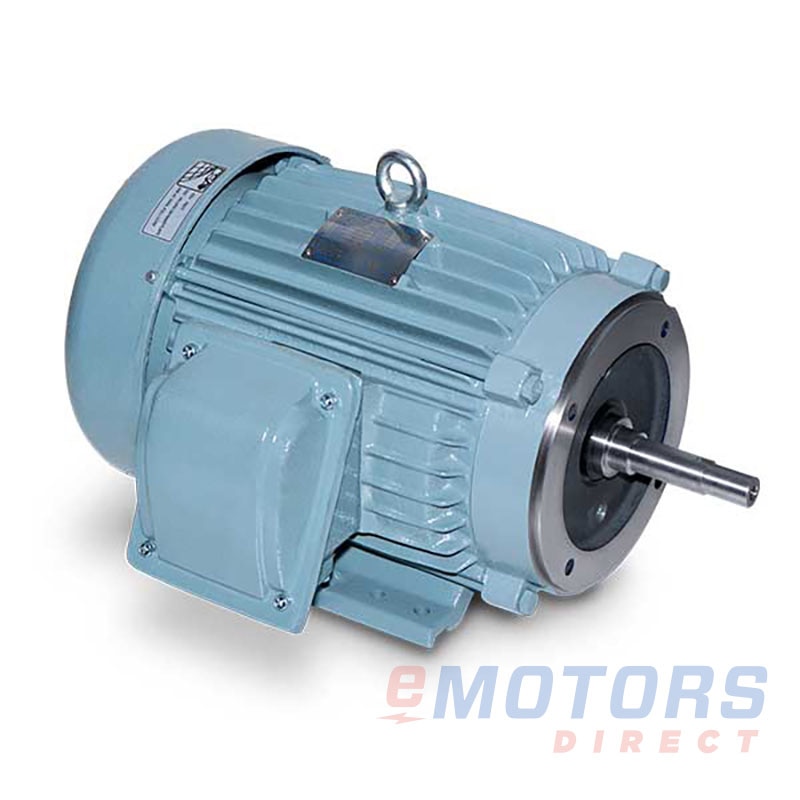

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

TECO-Westinghouse CJM0306

TECO Westinghouse · Optim JM/JP Close Coupled Pump
30 HP 1200 326JM TEFC 230V|460V Pump
Catalog Number: CJM0306
Alternative Number: AEEAJM 30-6-230/460-T, JMN0306
HP
30
RPM
1200
Voltage
230V,460V
Frame
326JM
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Optim® JM is a state-of-the-art motor designed for commercial and industrial close coupled pump applications.

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Description

The OPTIM JM is designed for commercial and industrial closed coupled pump applications. Couple your OPTIM JM with our TECO VFD’s for energy savings & speed control.

Feature

  • Available from 1-50 HP; 2, 4 & 6 Pole
  • Rugged Cast-iron Construction on Frame, End Brackets, and Conduit Box
  • Inverter Duty Speed Range Includes: 10:1 CT and 20:1 VT
  • CSA Certified for Inverter Duty Operation in a Class I, Division II, Groups B, C and D
Electrical Data
Rated Motor Output Power
30 HP
22.38 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
75.0/37.5 AMP
Phase
3
Poles
6
Locked Rotor Current
436.00/218.00 AMP
Fl Current @ 208V
83.25 AMP
Service Factor
1.15
KVA Code
G
Nominal Efficiency
93
Nominal Power Factor
80.5
Leads (Qty, Size)
1
Frequency
60 Hz
Connection
Delta
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:01
3
Constant Torque
10:01
6
General Data
Frame
326JM
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
695lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-40 to 40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3C
Mechanical Data
DE Bearing
6312
NDE Bearing
6212
Shaft Diameter
1.38" (1.25")
Shaft Length
5.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class I, Div 2, Groups B, C & D
Temp Code (Sine Wave Power)
T3B
Temp Code (VFD Power)
T3C
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
