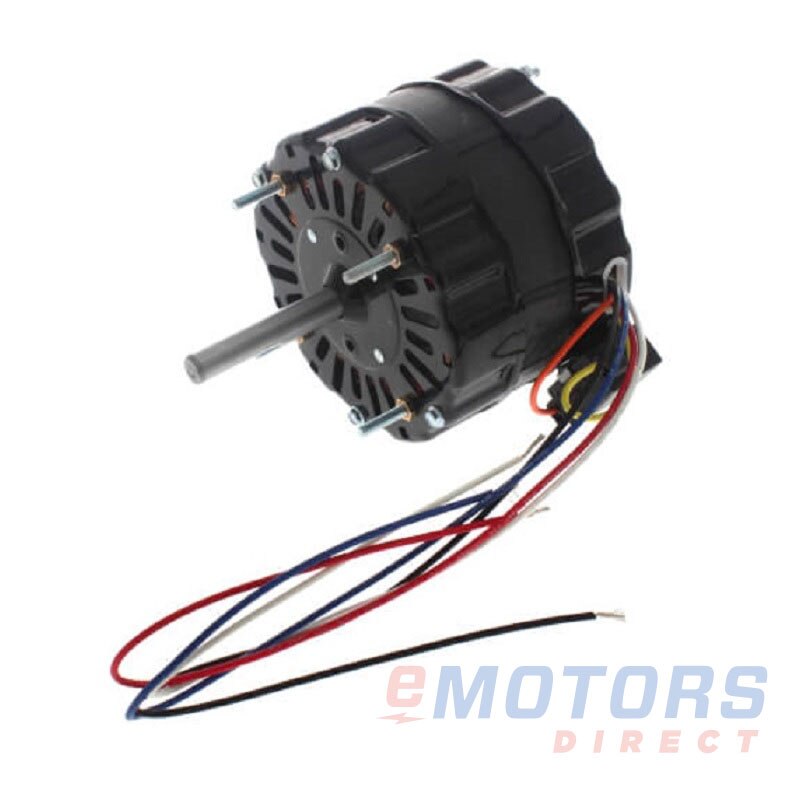

Packard 90318

Packard · Furnace Motor
5.0
1/8 HP 1550 ODP 115V
Catalog Number: 90318
HP
1/8
RPM
1800
Voltage
115V
Frame
5-1/8"
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Thru Bolt

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
CONSOLID 300455
FR 8743810240
GREENHECK 308318, 302336
JS S81-702
MCMILLAN A0820B3680, A0820B3859, A0820B2633

Description

Packard has the most complete and comprehensive stocking list of aftermarket and direct OEM replacement motors. This motor directly replaces Greenheck A0820B3680 / A0820B3859, McMillan Electric A0820B3680 / A0820B3859.

Features

  • Permanent Split Capacitor
  • 3 Speed Motor
  • Includes Capacitor
  • ODP Enclosure
  • Automatic Overload
  • 60 Hertz
  • Made in the USA
Electrical Data
Rated Motor Output Power
1/8 HP
Rated Motor Speed
1550 RPM
Rated Motor Voltage
115V
Rated Motor Current
2.60 AMP
Phase
1
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
5-1/8"
Enclosure
OAO
Mounting
Thru Bolt
Number of Speeds
3 Speed
Approximate Weight
10lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
CWNDE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
Ball
Shaft Diameter
0.5"
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
USA
Warranty
1-Year
