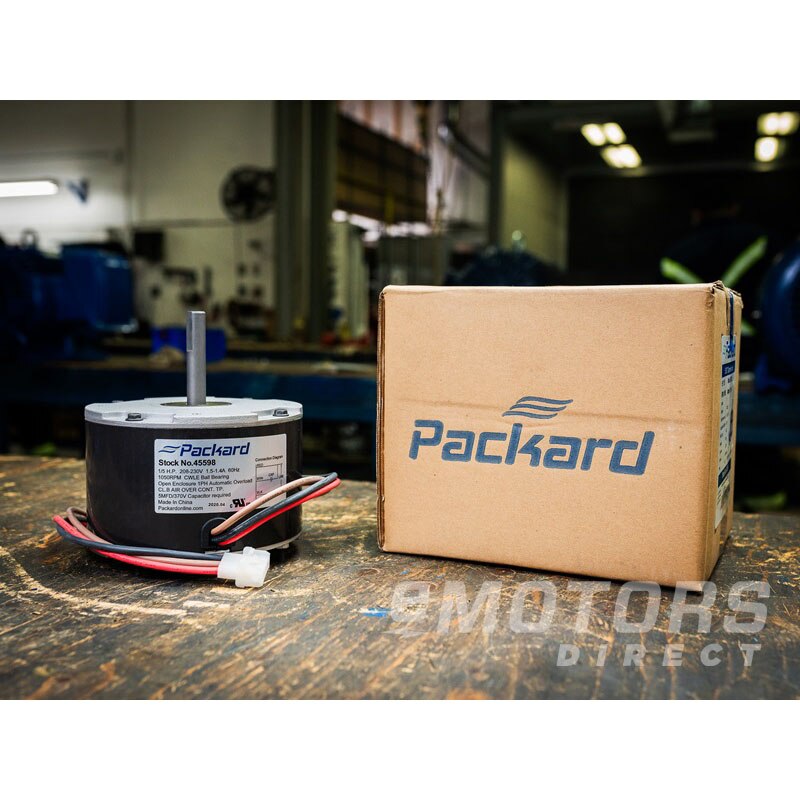

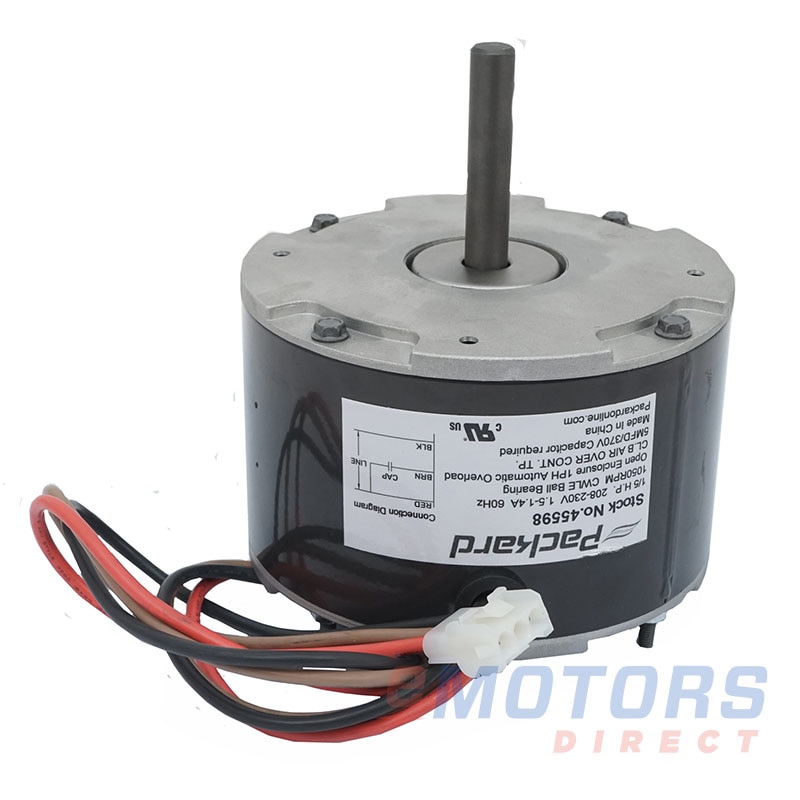

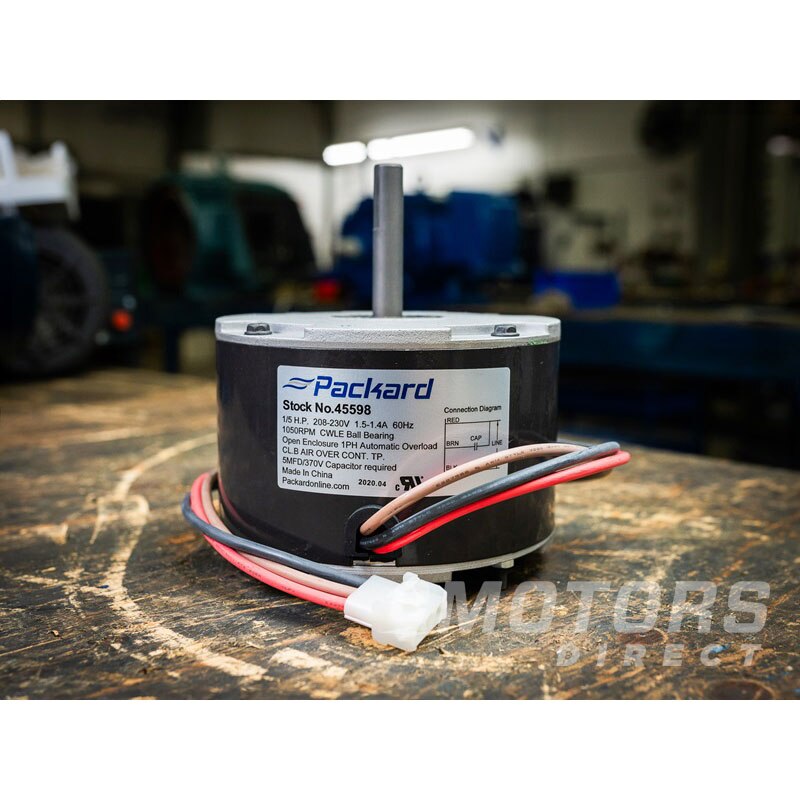

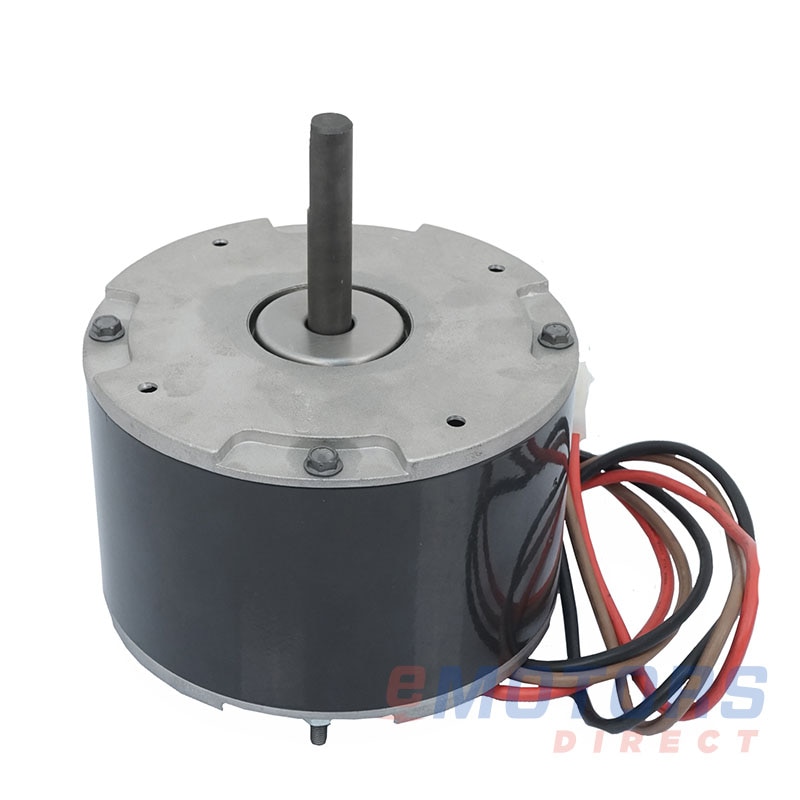

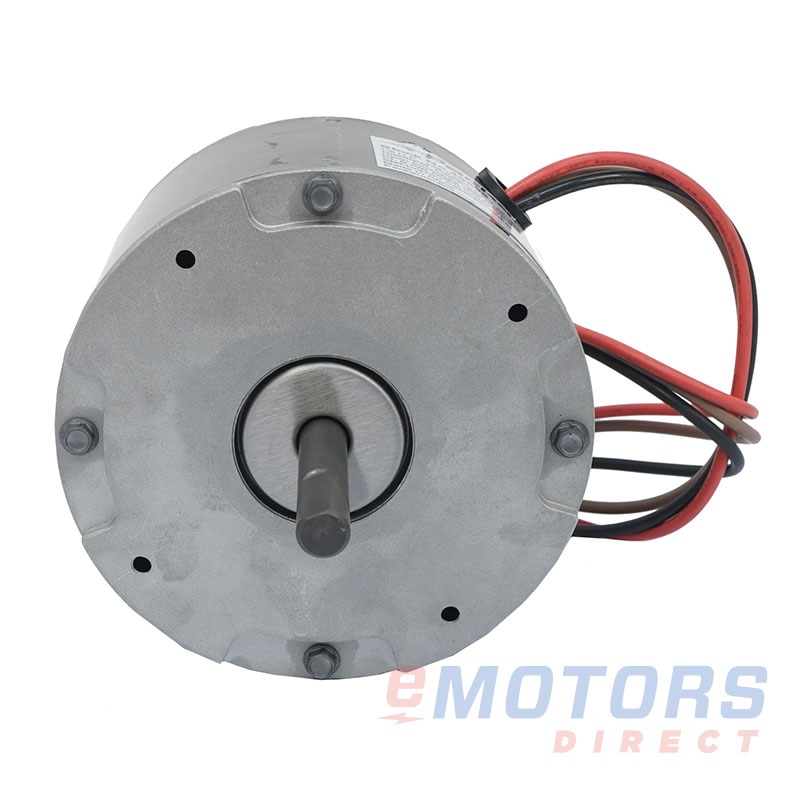

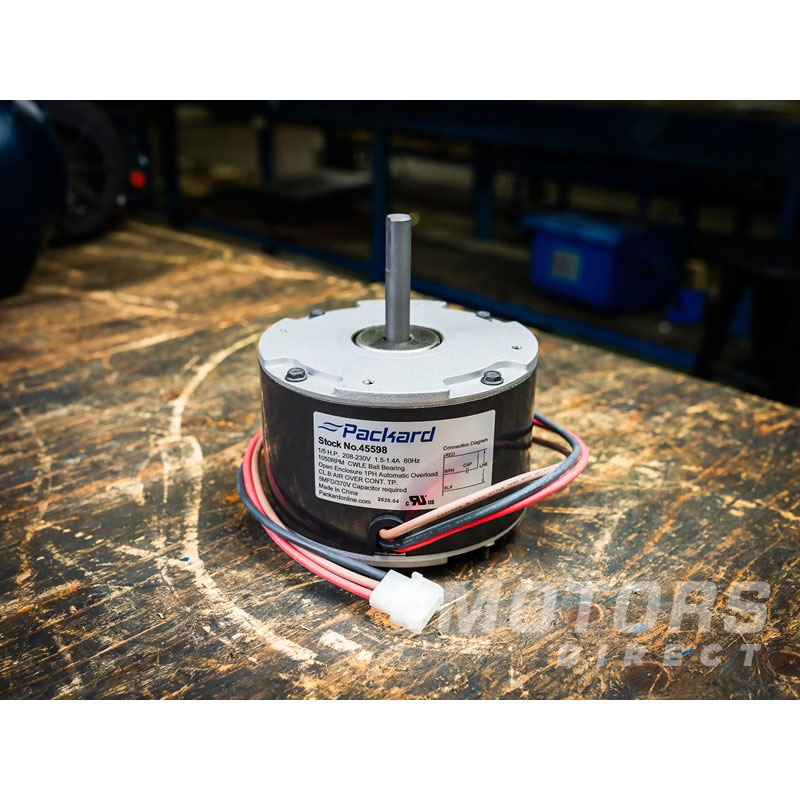

Packard 45598

Packard · Furnace Motor
5.0
1/5 HP 1075 48 TEAO 208-230V Permanent Split Capacitor
Catalog Number: 45598
HP
1/5
RPM
1200
Voltage
208-230V
Frame
48
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Belly Band,Stud

Product-line overview

Dominating the HVACR industry since 1959, Packard’s line of furnace motors and draft inducers are an optimal choice for your indoor air comfort. With their selection of frame sizes, mounting options, and voltage inputs, you’ll find a furnace motor solution no matter how unique the application.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Features

  • Direct Replacement for ICP 1086598
  • Includes Special Molex Plug
  • Frame 48
  • Requires 5MFD/370VAC Capacitor
Electrical Data
Rated Motor Output Power
1/5 HP
.14 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
1.5-1.4 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
5
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
TEAO
Mounting
Belly Band,Stud
Number of Speeds
1 Speed
Approximate Weight
8.05
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CWLE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
Ball
NDE Bearing
Ball
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
CHINA
Warranty
1-Year
