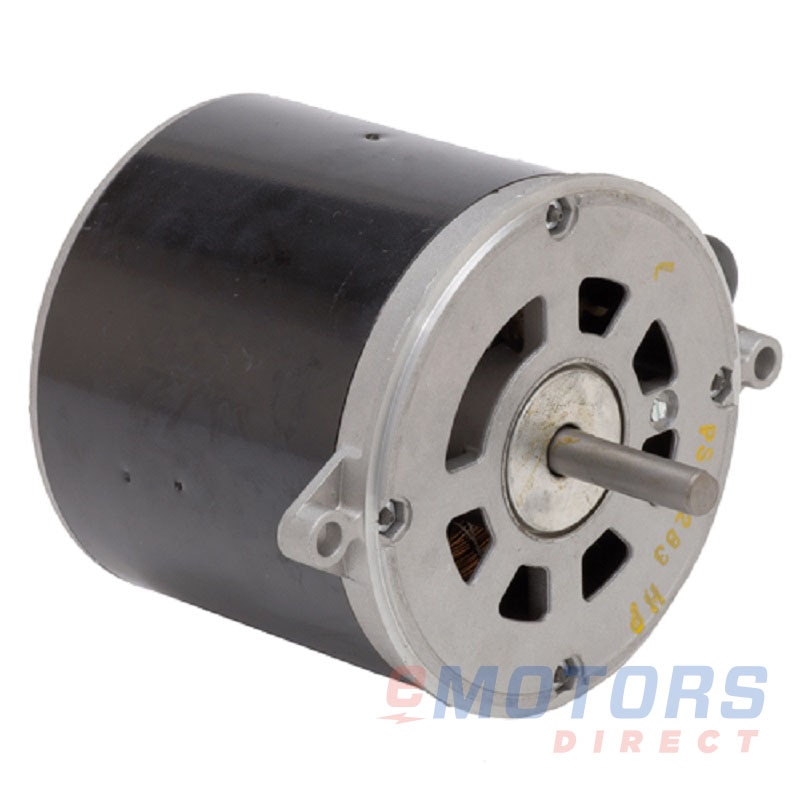

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Nidec 3252

Nidec · Split Phase and Capacitor Start Oil Burner Totally Enclosed When Mounted
1/6 HP 1725 48N Fr TENV 115V Split Phase
Catalog Number: 3252
Model Number: S055TBB7618R14B
HP
1/6
RPM
1800
Voltage
115V
Frame
48N
Phase
1
Enclosure
TENV
Material
Rolled Steel
Mounting
M/N-Flange

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
CENTURY 442C, FSP4026H
AO SMITHEL2014V1, EL2014
AJAX A0B16
EMERSON K3252, S055TBB7618014B
GENERAL ELECTRIC 4784
GLOBAL IND WBB467976
JS S89-218
MARS 30601
NORDYNE 917304
ROTOM R3250
SID HARVEY'S MTROB3
TRANE M0T-10198

Split Phase and Capacitor Start Oil Burner Totally Enclosed When Mounted

Applications

Designed to meet manufacturer’s requirements for oil burners

Features

  • 40ºC Ambient
  • 20"Leads, Located At 3 O’clock Viewed From End Opposite Shaft
  • 1.0 Service Factor
  • Reversible Rotation
  • Manual Reset Thermal Overload Protector
  • Flanges are ventilated
  • Bearings Have All Angle Thrust System
  • Class B Insulation
Electrical Data
Rated Motor Output Power
1/6 HP
.12 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V
Rated Motor Current
3.1 AMP
Phase
1
Poles
4
Locked Rotor Current
19.55
Fl Current @ 208V
-
Service Factor
1
KVA Code
R
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48N
Enclosure
TENV
Mounting
M/N-Flange
Number of Speeds
1 Speed
Approximate Weight
14lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
7.6"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
MEXICO
Warranty
1-Year
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Feature SheetRegister or log in to download
  • Dimensional DrawingRegister or log in to download
