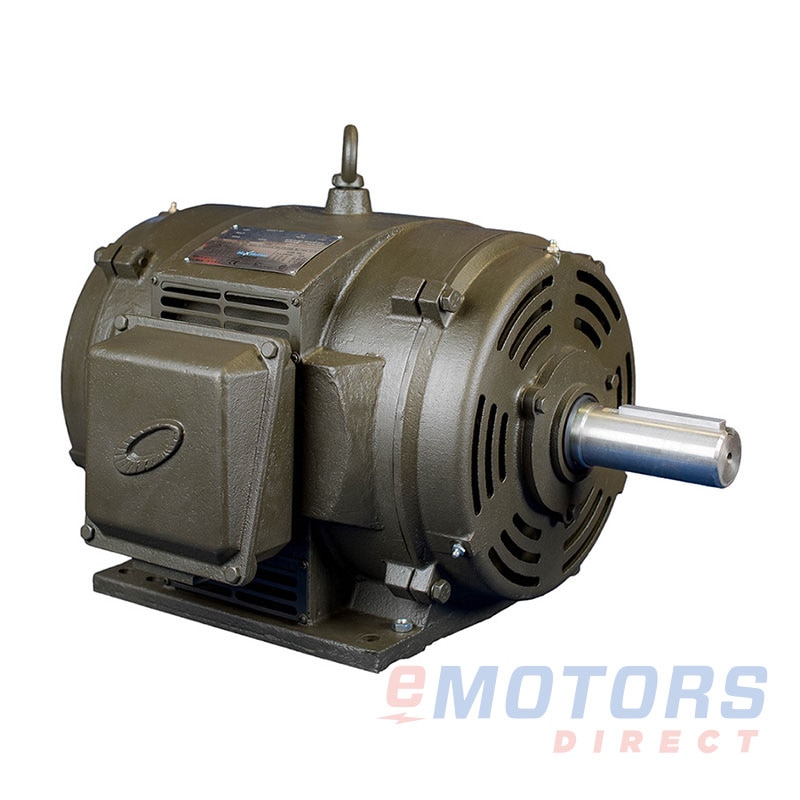

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Max Motion MQOP-77

Max Motion · General Purpose
100 HP 1785 404T ODP 208-230V|460V General Purpose
Catalog Number: MQOP-77
HP
100
RPM
1800
Voltage
208-230V,460V
Frame
404T
Phase
3
Enclosure
ODP
Material
Cast Iron
Mounting
Rigid

Product-line overview

Find the right motor for your application with Max Motion’s general purpose motors. Designed for various applications, these motors provide numerous options from RPM, HP, and voltage ratings to enclosure types. Plus, c-face, d-flange, and rigid mounting options to suit your intended location.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Max Motion: General Purpose (674)

MQR-124CW1/21725230V, 460V56HC $345.55
MQP-7-D1 1/21750208-230V, 460V145TD $514.97
MQP-3-D11160208-230V, 460V145TD $538.49
MQP-8-D1 1/21175208-230V, 460V182TD $781.53
MQP-21-D53515208-230V, 460V184TD $857.42
MQP-22-D51755208-230V, 460V184TD $892.03
MQP-18-D31185208-230V, 460V213TD $1,069.82
MQP-26-D7 1/23530208-230V, 460V213TD $1,221.63
MQP-23-D51180208-230V, 460V215TD $1,221.63
MQP-27-D7 1/21770208-230V, 460V213TD $1,297.54
MQP-31-D103525208-230V, 460V215TD $1,343.03
MQP-32-D101770208-230V, 460V215TD $1,407.30
MQP-43-D201185208-230V, 460V286TD $1,742.95
MQP-28-D7 1/21185208-230V, 460V254TD $1,938.37
MQP-33-D101180208-230V, 460V256TD $1,976.30
MQP-36-D153545208-230V, 460V254TD $2,014.27
MQP-37-D151770208-230V, 460V254TD $2,204.00
MQP-41-D203540208-230V, 460V256TD $2,241.95
MQP-53-D301185208-230V, 460V326TD $2,425.68
MQP-42-D201760208-230V, 460V256TD $2,469.65
MQP-38-D151180208-230V, 460V284TD $2,504.93
MQP-46-D253540208-230V, 460V284TSD $2,736.76
MQP-51-D303530208-230V, 460V286TSD $2,888.81
MQP-47-D251775208-230V, 460V284TD $2,949.62
MQP-52-D301775208-230V, 460V286TD $3,098.80
MQP-48-D251185208-230V, 460V324TD $3,647.49
MQP-56-D403545208-230V, 460V324TSD $3,846.67
MQP-57-D401780208-230V, 460V324TD $4,029.14
MQP-61-D503545208-230V, 460V326TSD $4,181.20
MQP-62-D501780208-230V, 460V326TD $4,485.32
MQP-58-D401188208-230V, 460V364TD $5,594.33
MQP-66-D603565208-230V, 460V364TSD $5,670.37
MQP-71-D753565208-230V, 460V365TSD $5,822.41
MQP-67-D601780208-230V, 460V364TD $5,974.47
MQP-63-D501187208-230V, 460V365TD $6,126.53
MQP-72-D751780208-230V, 460V365TD $6,412.08
MQP-68-D601190208-230V, 460V404TD $7,973.17
MQP-76-D1003570208-230V, 460V405TSD $8,628.53
MQP-77-D1001790208-230V, 460V405TD $9,210.08
MQP-73-D751190208-230V, 460V405TD $9,506.66
MQP-81-D1253580460V444TSD $10,352.56
MQP-82-D1251785460V444TD $11,036.84
MQP-78-D1001185208-230V, 460V444TD $11,188.87
MQP-83-D1251185460V445TD $12,329.30
MQP-86-D1503580460V445TSD $12,466.15
MQP-87-D1501790460V445TD $13,089.59
MQP-88-D1501188460V447TD $13,925.89
MQP-97-D2001790460V447TD $14,610.16
MQP-96-D2003580460V447TSD $14,610.16
MQP-98-D2001185460V449TD $16,891.00

Feature

  • Inverter Duty Magnet wire, 10:1 CT - 20:1 VT
  • Rolled Steel 140-210T, Cast Iron 250T and larger
  • Roller Bearing 4 & 6 Pole frames 404T to 449T
  • IP23 Protection
Electrical Data
Rated Motor Output Power
100 HP
75 kW
Rated Motor Speed
1785 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
112.00 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
246
Service Factor
1.15
KVA Code
G
Nominal Efficiency
95.4
Nominal Power Factor
.87
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
404T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
1058lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
36.7"
NEMA Design
B
Degree of Protection (IP)
IP23
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6318
NDE Bearing
6314
Shaft Diameter
2.875"
Shaft Length
7.25"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSAus & CE
Country of Origin
CHINA
Warranty
3-Year
