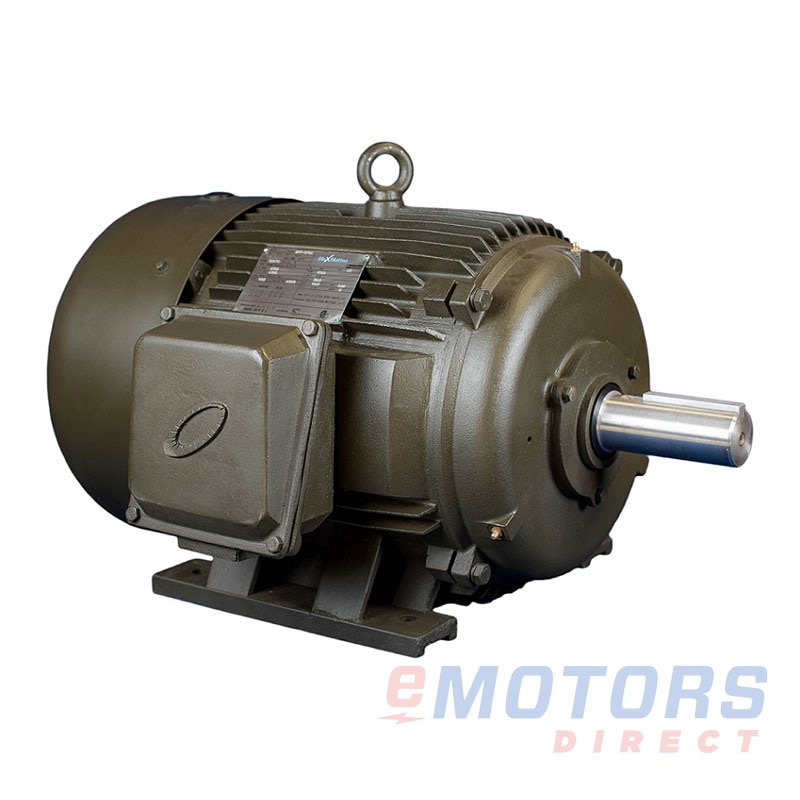

Max Motion MPP-37

Max Motion · General Purpose
15 HP 1770 254T TEFC 575V General Purpose
Catalog Number: MPP-37
HP
15
RPM
1800
Voltage
575V
Frame
254T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

Find the right motor for your application with Max Motion’s general purpose motors. Designed for various applications, these motors provide numerous options from RPM, HP, and voltage ratings to enclosure types. Plus, c-face, d-flange, and rigid mounting options to suit your intended location.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Max Motion: General Purpose (674)

MQR-124CW1/21725230V, 460V56HC $345.55
MQP-7-D1 1/21750208-230V, 460V145TD $514.97
MQP-3-D11160208-230V, 460V145TD $538.49
MQP-8-D1 1/21175208-230V, 460V182TD $781.53
MQP-21-D53515208-230V, 460V184TD $857.42
MQP-22-D51755208-230V, 460V184TD $892.03
MQP-18-D31185208-230V, 460V213TD $1,069.82
MQP-26-D7 1/23530208-230V, 460V213TD $1,221.63
MQP-23-D51180208-230V, 460V215TD $1,221.63
MQP-27-D7 1/21770208-230V, 460V213TD $1,297.54
MQP-31-D103525208-230V, 460V215TD $1,343.03
MQP-32-D101770208-230V, 460V215TD $1,407.30
MQP-43-D201185208-230V, 460V286TD $1,742.95
MQP-28-D7 1/21185208-230V, 460V254TD $1,938.37
MQP-33-D101180208-230V, 460V256TD $1,976.30
MQP-36-D153545208-230V, 460V254TD $2,014.27
MQP-37-D151770208-230V, 460V254TD $2,204.00
MQP-41-D203540208-230V, 460V256TD $2,241.95
MQP-53-D301185208-230V, 460V326TD $2,425.68
MQP-42-D201760208-230V, 460V256TD $2,469.65
MQP-38-D151180208-230V, 460V284TD $2,504.93
MQP-46-D253540208-230V, 460V284TSD $2,736.76
MQP-51-D303530208-230V, 460V286TSD $2,888.81
MQP-47-D251775208-230V, 460V284TD $2,949.62
MQP-52-D301775208-230V, 460V286TD $3,098.80
MQP-48-D251185208-230V, 460V324TD $3,647.49
MQP-56-D403545208-230V, 460V324TSD $3,846.67
MQP-57-D401780208-230V, 460V324TD $4,029.14
MQP-61-D503545208-230V, 460V326TSD $4,181.20
MQP-62-D501780208-230V, 460V326TD $4,485.32
MQP-58-D401188208-230V, 460V364TD $5,594.33
MQP-66-D603565208-230V, 460V364TSD $5,670.37
MQP-71-D753565208-230V, 460V365TSD $5,822.41
MQP-67-D601780208-230V, 460V364TD $5,974.47
MQP-63-D501187208-230V, 460V365TD $6,126.53
MQP-72-D751780208-230V, 460V365TD $6,412.08
MQP-68-D601190208-230V, 460V404TD $7,973.17
MQP-76-D1003570208-230V, 460V405TSD $8,628.53
MQP-77-D1001790208-230V, 460V405TD $9,210.08
MQP-73-D751190208-230V, 460V405TD $9,506.66
MQP-81-D1253580460V444TSD $10,352.56
MQP-82-D1251785460V444TD $11,036.84
MQP-78-D1001185208-230V, 460V444TD $11,188.87
MQP-83-D1251185460V445TD $12,329.30
MQP-86-D1503580460V445TSD $12,466.15
MQP-87-D1501790460V445TD $13,089.59
MQP-88-D1501188460V447TD $13,925.89
MQP-97-D2001790460V447TD $14,610.16
MQP-96-D2003580460V447TSD $14,610.16
MQP-98-D2001185460V449TD $16,891.00

Description

General purpose use on conveyors, compressors, pumps, fans, blowers and other industrial and process machinery working in wet and dirty environments. Max Motion premium high efficiency motors offer even more return on your investment when used in high cycling and long running time applications.

Feature

  • Design - NEMA standard MG-1, Design B Meets MG-1 Part 31
  • Service Factor - 1.25 SF 1HP to 50HP, 1.15 SF 60HP to 300HP.
  • Highest Quality Enamel coated Corona resistant inverter duty magnet wire. Bearing lubricant –
  • Totally Enclosed Fan Cooled meeting IEC standard IP55
  • Factory Certified Division 2 Class I Groups A, B, C, D Class II Groups F, G. Meets Temp Code T2B.
  • Inverter Duty ranges of 10:1 constant torque and 20:1 variable torque.
  • Warranty - 30 months from installation or 36 months from shipment whichever is first.
Electrical Data
Rated Motor Output Power
15 HP
11.25 kW
Rated Motor Speed
1770 RPM
Rated Motor Voltage
575V
Rated Motor Current
14.60 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
G
Nominal Efficiency
92.4
Nominal Power Factor
.81
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
254T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
297lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
23.2"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6309
NDE Bearing
6309
Shaft Diameter
1.625"
Shaft Length
4.0"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSAus & CE
Country of Origin
CHINA
Warranty
3-Year
