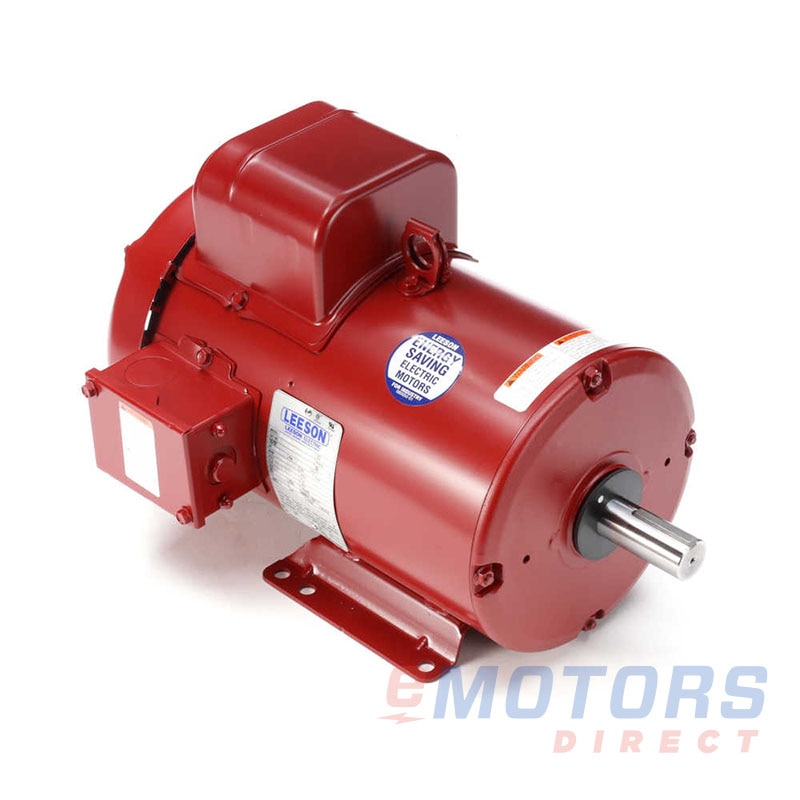

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Marathon 131543.00

Marathon
5 HP 1740 184T TEFC 230V Farm Duty
Catalog Number: 131543.00
Model Number: P184K17FB16C
HP
5
RPM
1800
Voltage
230V
Frame
184T
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

Our complete line of single-phase Farm Duty/Agricultural Duty series of motors with extra high torque are designed and built for the tough applications found in the agricultural industry.

Feature

  • Gasketed capacitor cases and conduit box covers
  • Meets or exceeds NEMA service factors
  • Double sealed ball bearings
  • Condensate drains on general purpose Ag motors
  • Low temperature manual overload protected
  • High starting torque ratings
Electrical Data
Rated Motor Output Power
5 HP
3.7 kW
Rated Motor Speed
1740 RPM
Rated Motor Voltage
230V
Rated Motor Current
20.5 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
82.5
Nominal Power Factor
93
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
98lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
16.47"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
F
Rotation
CWNDE
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
Warranty
1-Year
