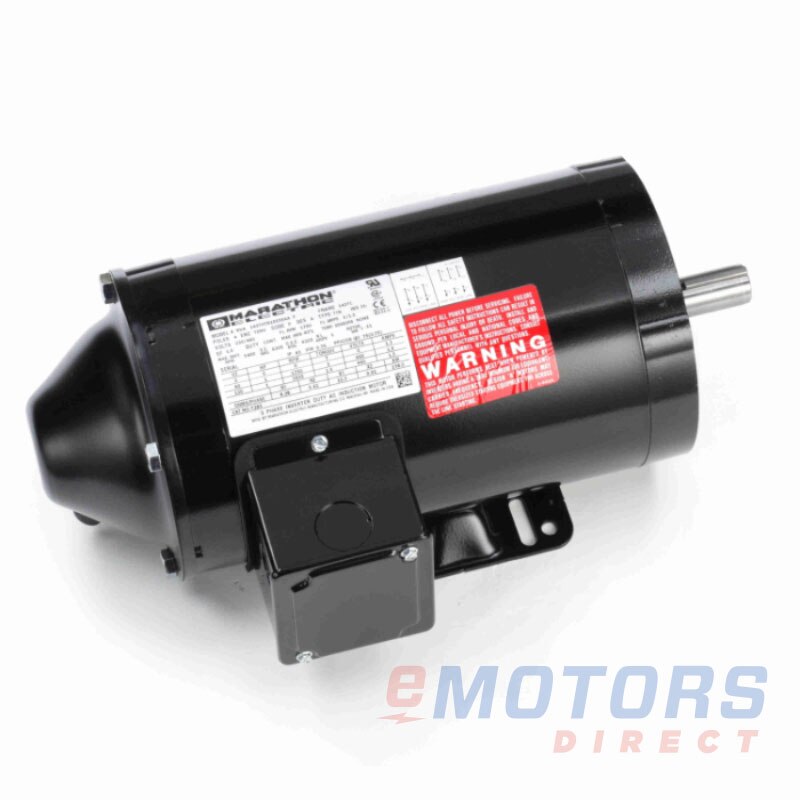

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson Y283

Leeson
1 HP 1750 143TC TENV 230V|460V 1000:1 Turndown
Catalog Number: Y283
Part Number: 143THTR15535
HP
1
RPM
1800
Voltage
230V,460V
Frame
143TC
Phase
3
Enclosure
TENV
Material
Rolled Steel
Mounting
C-Face / Rigid

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

Designed for applications like commerical fans and blowers, direct and belt drive air handlers and exhaust fans.

Feature

  • 303 Stainless steel shafts with contact lip seal & V-ring slinger
  • Rolled steel construction
  • Gray epoxy paint
  • Class F insulation with CR200 corona resistant magnet wire
  • Automatic thermal protection
  • Integrated Dynapar® HS20 1024 ppr encoder
  • Constant torque operation from 0 to base speed on vector drive
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1750 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
3.0/1.5 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
P
Nominal Efficiency
84
Nominal Power Factor
75
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
143TC
Enclosure
TENV
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
42lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
15.04"
NEMA Design
-
Degree of Protection (IP)
IP43
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
3-Year
