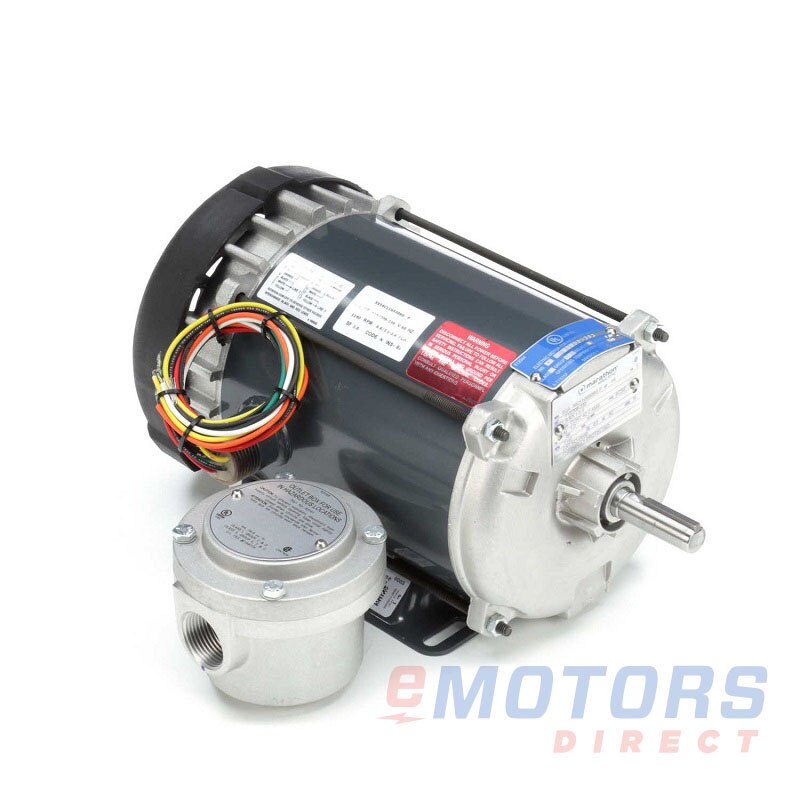

Leeson G652

Leeson
1/3 HP 1200 56 TEFC-XP 115V|230V Explosion Proof
Catalog Number: G652
Part Number: 056C11G5307
HP
1/3
RPM
1200
Voltage
115V,230V
Frame
56
Phase
1
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
Rigid

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Feature

  • 1.0 service factor
  • Automatic reset thermal protector
  • Meets temperature code T3B
  • Explosion proof conduit box included, shipped loose
  • UL listed file no. E12044
  • CSA certified file no. LR47504
Electrical Data
Rated Motor Output Power
1/3 HP
.24 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
7.8/3.9-3.6 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
3.9
Service Factor
1
KVA Code
N
Nominal Efficiency
52.5
Nominal Power Factor
53.8
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
31lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.94"
NEMA Design
-
Degree of Protection (IP)
IP54
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
-
Warranty
1-Year
