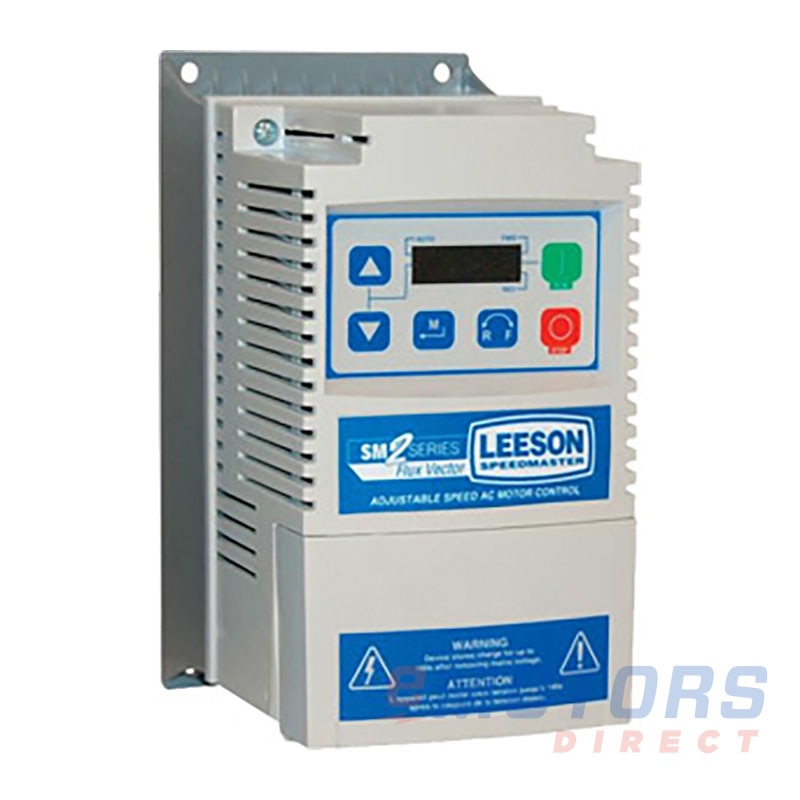

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson 174633.00

Leeson
3 HP 575 NEMA 1 SM2 SERIES FLUX VECTOR AC DRIVE
Catalog Number: 174633.00
HP
3
Input Voltage
575V
Output Voltage
575V
Input Phase
3
Enclosure
NEMA 1

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

The SM2 SERIES FLUX VECTOR™ carries all the features required by demanding applications including four modes of operation (V/Hz, Enhanced V/Hz, Vector Speed, and Torque), high starting torque, auto-tuning, advanced low-speed control, and dynamic speed regulation.

Feature

  • Designed to be used with vector duty rated AC motors
  • Enclosure: NEMA1/IP31
  • 4 digit LED display
  • Enhanced V/Hz with auto-tuning
  • Optional remote keypad
Electrical Data
HP CT Rating
3 HP
HP VT Rating
5 HP
Input
Output
Voltage
575V
575V
Max CT Current
4.4
3.9
Max VT Current
-
-
Phase
3
3
Hz Range
48-62
0-500
Physical Data
Weight
11 lb
Height
5.45"
Width
7.5"
Depth
3.9"
Enclosure
NEMA 1
Degree of Protection (IP)
IP31
Frame
CH2
Ambient Temp
-10 to 55°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
USA
Warranty
1-Year
