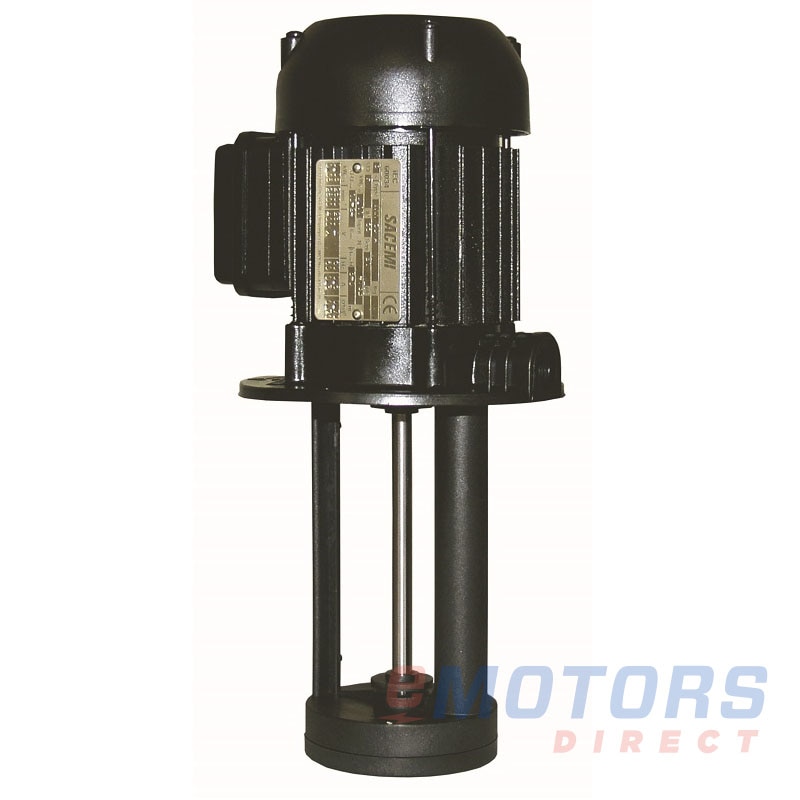

Lafert SPV150/200MM-575

Lafert North America · Coolant Pump
1 1/2 HP 3600 150 TEFC 333V|575V Coolant Pump
Catalog Number: SPV150/200MM-575
HP
1 1/2
RPM
3600
Voltage
333V,575V
Frame
Size 150
Phase
3
Enclosure
TEFC
Material
Aluminum
Mounting
Round Body

Product-line overview

Our Coolant Pump motors are designed for machine tool applications. These are ideal for tool cutting machines, glass grinding tools, printing equipment, industrial applications, etc. High pressure multi-stage pump designs are also available on request.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Lafert North America: Coolant Pump (119)

SPV18/270MM-4601/63600230V, 460VSize 18 $565.72
SPV18/90MM-5751/63600333V, 575VSize 18 $570.02
SPV18/90MM-4601/63600230V, 460VSize 18 $570.02
SPV18/350MM-5751/63600333V, 575VSize 18 $570.02
SPV18/350MM-4601/63600230V, 460VSize 18 $570.02
SPV18/270MM-5751/63600333V, 575VSize 18 $570.02
SPV18/220MM-5751/63600333V, 575VSize 18 $570.02
SPV18/220MM-4601/63600230V, 460VSize 18 $570.02
SPV18/170MM-5751/63600333V, 575VSize 18 $570.02
SPV18/170MM-4601/63600230V, 460VSize 18 $570.02
SPV18/120MM-5751/63600333V, 575VSize 18 $570.02
SPV18/120MM-4601/63600230V, 460VSize 18 $570.02
SPV25/90MM-5751/43600333V, 575VSize 25 $870.09
SPV25/90MM-4601/43600230V, 460VSize 25 $870.09
SPV25/350MM-5751/43600333V, 575VSize 25 $870.09
SPV25/350MM-4601/43600230V, 460VSize 25 $870.09
SPV25/270MM-5751/43600333V, 575VSize 25 $870.09
SPV25/270MM-4601/43600230V, 460VSize 25 $870.09
SPV25/220MM-5751/43600333V, 575VSize 25 $870.09
SPV25/220MM-4601/43600230V, 460VSize 25 $870.09
SPV25/170MM-5751/43600333V, 575VSize 25 $870.09
SPV25/170MM-4601/43600230V, 460VSize 25 $870.09
SPV25/120MM-5751/43600333V, 575VSize 25 $870.09
SPV25/120MM-4601/43600230V, 460VSize 25 $870.09
SPV50/550MM-5751/23600333V, 575VSize 50 $1,208.90
SPV50/550MM-4601/23600230V, 460VSize 50 $1,208.90
SPV50/440MM-5751/23600333V, 575VSize 50 $1,208.90
SPV50/440MM-4601/23600230V, 460VSize 50 $1,208.90
SPV50/350MM-5751/23600333V, 575VSize 50 $1,208.90
SPV50/350MM-4601/23600230V, 460VSize 50 $1,208.90
SPV50/270MM-5751/23600333V, 575VSize 50 $1,208.90
SPV50/270MM-4601/23600230V, 460VSize 50 $1,208.90
SPV50/200MM-5751/23600333V, 575VSize 50 $1,208.90
SPV50/200MM-4601/23600230V, 460VSize 50 $1,208.90
SPV75/550MM-5753/43600333V, 575VSize 75 $1,347.87
SPV75/550MM-4603/43600230V, 460VSize 75 $1,347.87
SPV75/440MM-5753/43600333V, 575VSize 75 $1,347.87
SPV75/440MM-4603/43600230V, 460VSize 75 $1,347.87
SPV75/350MM-5753/43600333V, 575VSize 75 $1,347.87
SPV75/350MM-4603/43600230V, 460VSize 75 $1,347.87
SPV75/270MM-5753/43600333V, 575VSize 75 $1,347.87
SPV75/270MM-4603/43600230V, 460VSize 75 $1,347.87
SPV75/200MM-5753/43600333V, 575VSize 75 $1,347.87
SPV75/200MM-4603/43600230V, 460VSize 75 $1,347.87
SPV150/550MM-5751 1/23600333V, 575VSize 150 $2,043.33
SPV150/550MM-4601 1/23600230V, 460VSize 150 $2,043.33
SPV150/440MM-5751 1/23600333V, 575VSize 150 $2,043.33
SPV150/440MM-4601 1/23600230V, 460VSize 150 $2,043.33
SPV150/350MM-5751 1/23600333V, 575VSize 150 $2,043.33
SPV150/350MM-4601 1/23600230V, 460VSize 150 $2,043.33

Features

  • Available in 208-230/460V or 333/575V
  • 3600 RPM Immersion pumps
  • Approved by Electrical Safety Authority
Electrical Data
Rated Motor Output Power
1 1/2 HP
1.1 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
333V,575V
Rated Motor Current
2.3 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
Size 150
Enclosure
TEFC
Mounting
Round Body
Number of Speeds
-
Approximate Weight
26lb
Double Drilled
No
Frame Material
Aluminum
C-Dimension
16.76"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
S1
Conduit Box Location
-
Removable Feet
No
Orientation
Vertical
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cULus
Country of Origin
ITALY
Warranty
1-Year
