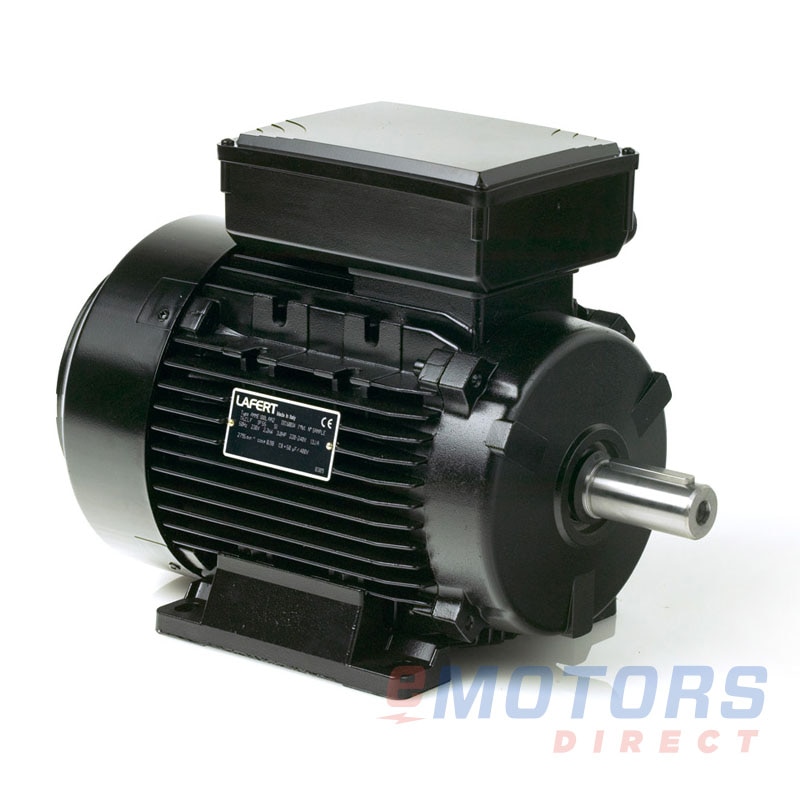

Lafert LM90LL2-115

Lafert North America · IEC Motor
5.0
2 1/2HP 3600 90L B3 TEFC 115V IEC Motor
Catalog Number: LM90LL2-115
HP
2 1/2
RPM
3600
Voltage
115V
Frame
90L
Phase
1
Enclosure
TEFC
Material
Aluminum
Mounting
B3

Product-line overview

Our IEC metric motors are found in many industrial applications such as food processing, packaging and more. These motors meet North American performance standards and energy efficiency mandates.

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Lafert North America: IEC Motor (1173)

ST71C4-575-B351/31800333V, 575V71 $448.97
ST71C4-575-B341/31800333V, 575V71 $448.97
ST71S4-575-B351/21800333V, 575V71 $453.25
ST71S4-575-B341/21800333V, 575V71 $453.25
ST71S4-460-B351/21800230V, 460V71 $453.25
ST71S4-460-B341/21800230V, 460V71 $453.25
ST71S2-575-B353/43600333V, 575V71 $459.34
ST71S2-575-B343/43600333V, 575V71 $459.34
ST71S2-460-B353/43600230V, 460V71 $459.34
ST71S2-460-B343/43600230V, 460V71 $459.34
ST71L2-575-B3513600333V, 575V71 $499.02
ST71L2-575-B3413600333V, 575V71 $499.02
ST71L2-460-B3513600230V, 460V71 $499.02
ST71L2-460-B3413600230V, 460V71 $499.02
ST80C4-575-B343/41800333V, 575V80 $506.58
ST80C4-460-B343/41800230V, 460V80 $506.58
ST80C4-575-B353/41800333V, 575V80 $519.51
ST80C4-460-B353/41800230V, 460V80 $519.51
ST71C6-575-B351/41200333V, 575V71 $623.51
ST71C6-575-B341/41200333V, 575V71 $623.51
ST71C6-460-B351/41200230V, 460V71 $623.51
ST71C6-460-B341/41200230V, 460V71 $623.51
ST71S6-575-B351/3900333V, 575V71 $629.00
ST71S6-575-B341/3900333V, 575V71 $629.00
ST71S6-460-B351/3900230V, 460V71 $629.00
ST71S6-460-B341/3900230V, 460V71 $629.00
ST80C6-575-B341/21200333V, 575V80 $654.26
ST80C6-460-B341/21200230V, 460V80 $654.26
ST80C6-575-B351/21200333V, 575V80 $667.20
ST80C6-460-B351/21200230V, 460V80 $667.20
ST80S6-575-B343/41200333V, 575V80 $696.37
ST80S6-460-B343/41200230V, 460V80 $696.37
ST80S6-575-B353/41200333V, 575V80 $709.31
ST80S6-460-B353/41200230V, 460V80 $709.31
ST71C8-575-B351/5900333V, 575V71 $709.56
ST71C8-575-B341/5900333V, 575V71 $709.56
ST71C8-460-B351/5900230V, 460V71 $709.56
ST71C8-460-B341/5900230V, 460V71 $709.56
ST80C8-575-B343/4900333V, 575V80 $851.99
ST80C8-460-B341/3900230V, 460V80 $851.99
ST80C8-575-B353/4900333V, 575V80 $864.93
ST80C8-460-B351/3900230V, 460V80 $864.93
ST90SC8-575-B341/2900333V, 575V90S $1,042.72
ST90SC8-460-B341/2900230V, 460V90S $1,042.72
ST90SC8-575-B351/2900333V, 575V90S $1,057.30
ST90SC8-460-B351/2900230V, 460V90S $1,057.30
ST90LS8-575-B343/4900333V, 575V90L $1,150.94
ST90LS8-460-B343/4900230V, 460V90L $1,150.94
ST90LS8-575-B353/4900333V, 575V90L $1,164.72
ST90LS8-460-B353/4900230V, 460V90L $1,164.72

Description

LM type motors are designed for no load or low starting torque applications such as fan duty. LM motors have two windings connected in parallel with a run capacitor connected in series giving the motor considerable overload capacity and high power factor.

Features

  • Service Factor (SF)
  • LM-LME Available in 115V or 230V
  • IEC - CEI - UNEL MEC - CSA Approved (UL recognized are Class "B")
  • DVE Available in 115V/230V (Dual Voltage)
Electrical Data
Rated Motor Output Power
2 1/2 HP
1.9 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
115V
Rated Motor Current
-
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
4
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
90L
Enclosure
TEFC
Mounting
B3
Number of Speeds
-
Approximate Weight
41lb
Double Drilled
Yes
Frame Material
Aluminum
C-Dimension
332 mm
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
S1
Conduit Box Location
F2
Removable Feet
Yes
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205-2Z
NDE Bearing
6205-2Z
Shaft Diameter
24 mm
Shaft Length
50 mm
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
ITALY
Warranty
1-Year
