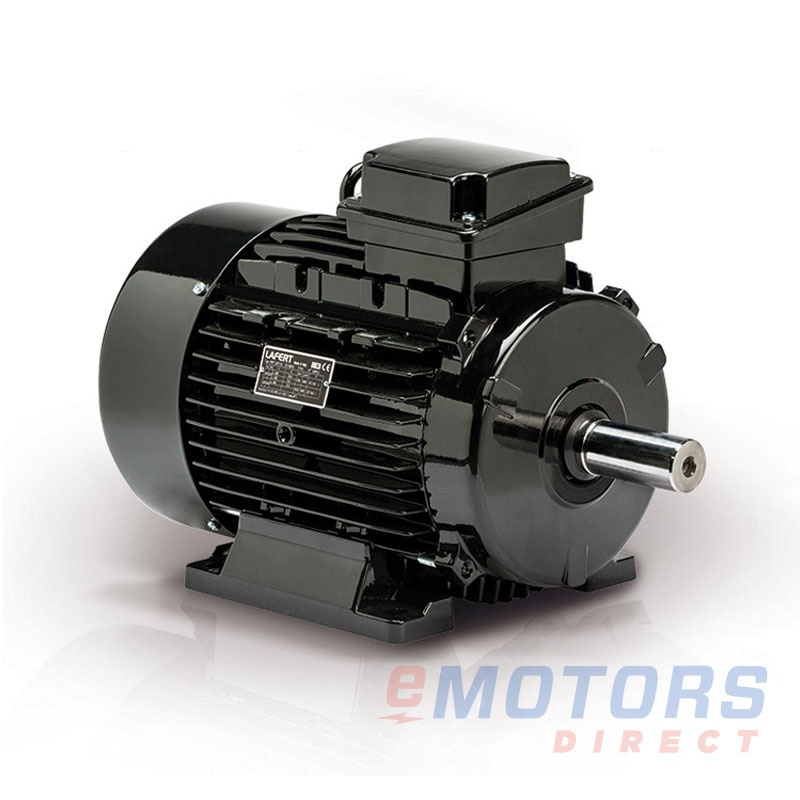

Lafert LAB160MZA8-990

Lafert North America · IEC Motor
5.0
7 1/2HP 900 160M B3 TEFC 575V,990V IEC Motor
Catalog Number: LAB160MZA8-990
HP
7 1/2
RPM
900
Voltage
575V,990V
Frame
160M
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
B3

Product-line overview

Our IEC metric motors are found in many industrial applications such as food processing, packaging and more. These motors meet North American performance standards and energy efficiency mandates.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Lafert North America: IEC Motor (1173)

ST71C4-575-B351/31800333V, 575V71 $447.66
ST71C4-575-B341/31800333V, 575V71 $447.66
ST71S4-575-B351/21800333V, 575V71 $451.93
ST71S4-575-B341/21800333V, 575V71 $451.93
ST71S4-460-B351/21800230V, 460V71 $451.93
ST71S4-460-B341/21800230V, 460V71 $451.93
ST71S2-575-B353/43600333V, 575V71 $458.01
ST71S2-575-B343/43600333V, 575V71 $458.01
ST71S2-460-B353/43600230V, 460V71 $458.01
ST71S2-460-B343/43600230V, 460V71 $458.01
ST71L2-575-B3513600333V, 575V71 $497.56
ST71L2-575-B3413600333V, 575V71 $497.56
ST71L2-460-B3513600230V, 460V71 $497.56
ST71L2-460-B3413600230V, 460V71 $497.56
ST80C4-575-B343/41800333V, 575V80 $505.10
ST80C4-460-B343/41800230V, 460V80 $505.10
ST80C4-575-B353/41800333V, 575V80 $517.99
ST80C4-460-B353/41800230V, 460V80 $517.99
ST71C6-575-B351/41200333V, 575V71 $621.69
ST71C6-575-B341/41200333V, 575V71 $621.69
ST71C6-460-B351/41200230V, 460V71 $621.69
ST71C6-460-B341/41200230V, 460V71 $621.69
ST71S6-575-B351/3900333V, 575V71 $627.18
ST71S6-575-B341/3900333V, 575V71 $627.18
ST71S6-460-B351/3900230V, 460V71 $627.18
ST71S6-460-B341/3900230V, 460V71 $627.18
ST80C6-575-B341/21200333V, 575V80 $652.35
ST80C6-460-B341/21200230V, 460V80 $652.35
ST80C6-575-B351/21200333V, 575V80 $665.25
ST80C6-460-B351/21200230V, 460V80 $665.25
ST80S6-575-B343/41200333V, 575V80 $694.35
ST80S6-460-B343/41200230V, 460V80 $694.35
ST80S6-575-B353/41200333V, 575V80 $707.24
ST80S6-460-B353/41200230V, 460V80 $707.24
ST71C8-575-B351/5900333V, 575V71 $707.49
ST71C8-575-B341/5900333V, 575V71 $707.49
ST71C8-460-B351/5900230V, 460V71 $707.49
ST71C8-460-B341/5900230V, 460V71 $707.49
ST80C8-575-B343/4900333V, 575V80 $849.51
ST80C8-460-B341/3900230V, 460V80 $849.51
ST80C8-575-B353/4900333V, 575V80 $862.41
ST80C8-460-B351/3900230V, 460V80 $862.41
ST90SC8-575-B341/2900333V, 575V90S $1,031.85
ST90SC8-460-B341/2900230V, 460V90S $1,031.85
ST90SC8-575-B351/2900333V, 575V90S $1,054.23
ST90SC8-460-B351/2900230V, 460V90S $1,054.23
ST90LS8-575-B343/4900333V, 575V90L $1,138.95
ST90LS8-460-B343/4900230V, 460V90L $1,138.95
ST90LS8-575-B353/4900333V, 575V90L $1,161.33
ST90LS8-460-B353/4900230V, 460V90L $1,161.33

Features

  • 15 Service Factor
  • Available in 208 230/460V
  • Frame sizes 100 and above available in 575/990V version
  • Frame sizes 132 and above available in 460/776V
  • Threaded hole output shaft is standard
  • IEC - CEI - UNEL MEC
Electrical Data
Rated Motor Output Power
7 1/2 HP
5.5 kW
Rated Motor Speed
900 RPM
Rated Motor Voltage
575V,990V
Rated Motor Current
9.02 AMP
Phase
3
Poles
8
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
86.5
Nominal Power Factor
-
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
160M
Enclosure
TEFC
Mounting
B3
Number of Speeds
-
Approximate Weight
240lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
598 mm
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
S1
Conduit Box Location
F0
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6309-2Z
NDE Bearing
6309-2Z
Shaft Diameter
42 mm
Shaft Length
110 mm
Grease Type
-
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
CHINA
Warranty
1-Year

Product Line Review

5.0

Average rating based on 1 reviews

Reviews for this product are combined with others in the same product line, as they share the same design but differ in specifications like HP or RPM.

4 stars
0
3 stars
0
2 stars
0
1 star
0

conforms, fast delivery, very satisfied

|

Verified Purchase

Reviewed by
5
Quality
4
Value
5
Durability

Product Line: IEC Motor

Application: Lab

Product as described, very good quality.
Carefully packaged, fast and undamaged delivery.
Very satisfied with my purchase. I highly recommend this product and the seller for their reliability and professionalism.
Thank you for this impeccable service.

Was this review helpful?

About Lafert North America

Lafert is a leading manufacturer of IEC metric motors, offering a full lineup that supports American operations using European-spec equipment. While IEC motors are less common in the U.S. market than NEMA motors, Lafert provides dependable motor availability for niche IEC applications.

Lafert designs and manufactures a wide range of IEC metric solutions, including general-purpose three-phase motors and metric washdown motors. Their products are widely used across industrial HVAC, material handling, food manufacturing, packaging, and many other sectors.

OEMs often choose Lafert for their compact, lightweight designs that simplify equipment integration and improve overall efficiency. Lafert is also recognized for its focus on high-efficiency motor technology, helping customers reduce long-term energy use and overall operating costs.

From their facility in Mississauga, Ontario, Lafert North America offers fast fulfillment and a variety of mechanical customization options. These include flange installation, mounting modifications, and other modified-to-order configurations that support U.S. maintenance teams, distributors, and machine builders.
