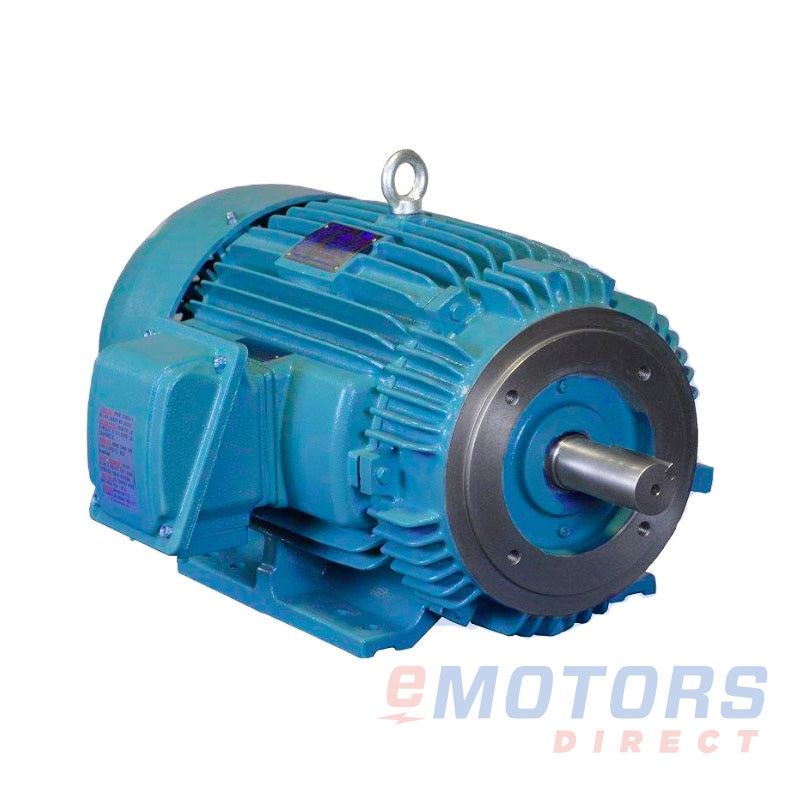

TECO-Westinghouse APH0034-C

TECO Westinghouse · IEEE Ready
3 HP 1800 182TC TEFC 460V General Purpose
Catalog Number: APH0034-C
HP
3
RPM
1800
Voltage
460V
Frame
182T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

The ADVANTAGE PLUS IEEE Ready motors are engineered to operate many types of machinery in petroleum, chemical, pulp & paper, mines and other “severe duty” applications.

Final Sale Product

Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

TECO Westinghouse: IEEE Ready (456)

APH01545D151800575V254TD $1,649.62
APH01525D153600575V254TD $1,649.62
APH02045D201800575V256TD $2,001.05
APH02025D203600575V256TD $2,024.36
APH02525D253600575V284TSD $2,511.18
APH02545D251800575V284TD $2,543.45
APH01565D151200575V284TD $2,708.42
APH03025D303600575V286TSD $2,960.34
APH03045D301800575V286TD $3,007.86
APH02065D201200575V286TD $3,342.26
APH04045D401800575V324TD $3,873.90
APH0404D401800460V324TD $3,873.90
APH04025D403600575V324TSD $3,892.74
APH0402D403600460V324TSD $3,892.74
APH02565D251200575V324TD $4,091.76
APH01585D15900575V286TD $4,632.38
APH05045D501800575V326TD $4,739.96
APH0504D501800460V326TD $4,739.96
APH03065D301200575V326TD $4,852.91
APH02085D20900575V324TD $5,177.46
APH05025D503600575V326TSD $5,277.88
APH0502D503600460V326TSD $5,277.88
APH02585D25900575V326TD $6,325.92
APH04065D401200575V364TD $6,500.75
APH0406D401200460V364TD $6,500.75
APH03085D30900575V364TD $6,696.18
APH06045D601800575V364TD $6,865.63
APH0604D601800460V364TD $6,865.63
APH06025D603600575V364TSD $6,994.72
APH0602D603600460V364TSD $6,994.72
APH05065D501200575V365TD $7,568.51
APH0506D501200460V365TD $7,568.51
APH07545D751800575V365TD $8,478.49
APH0754D751800460V365TD $8,478.49
APH06065D601200575V404TD $8,573.52
APH0606D601200460V404TD $8,573.52
APH07525D753600575V365TSD $8,780.62
APH0752D753600460V365TSD $8,780.62
APH04085D40900575V365TD $10,002.59
APH0408D40900460V365TD $10,002.59
APH07565D751200575V405TD $10,253.62
APH0756D751200460V405TD $10,253.62
APH10045D1001800575V405T $10,747.61
APH1004D1001800460V405T $10,747.61
APH05085D50900575V404TD $11,523.11
APH0508D50900460V404TD $11,523.11
APH10025D1003600575V405TSD $11,581.38
APH1002D1003600460V405TSD $11,581.38
APH06085D60900575V405TD $12,639.29
APH0608D60900460V405TD $12,639.29

Description

The ADVANTAGE PLUS IEEE Ready motors are engineered to operate many types of machinery in petroleum, chemical, pulp & paper, mines and other “severe duty” applications.

Electrical Data
Rated Motor Output Power
3 HP
2.24 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
460V
Rated Motor Current
3.7 AMP
Phase
3
Poles
4
Locked Rotor Current
32 AMP
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
89.5
Nominal Power Factor
84
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
Wye
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
182T
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
101lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
14.89"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-40 to 40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3C
Mechanical Data
DE Bearing
6306ZC3
NDE Bearing
6306ZC3
Shaft Diameter
1.125"
Shaft Length
2.7"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class I, Div 2, Groups B, C & D
Temp Code (Sine Wave Power)
T3C
Temp Code (VFD Power)
T3C
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
