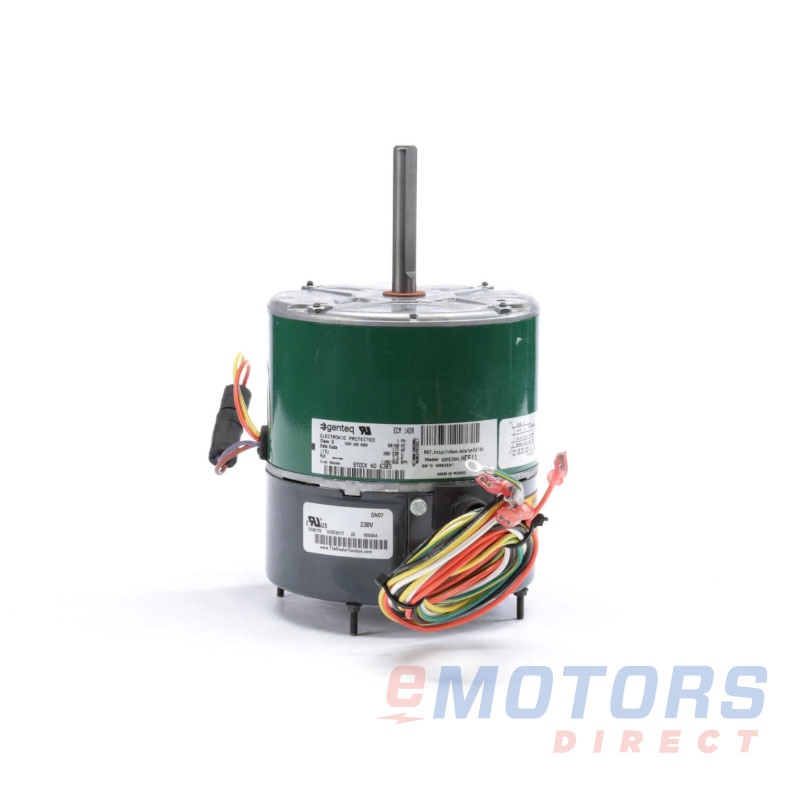

Genteq 6303S

Genteq · Evergreen OM Motor
1/3 HP 825|1075 48 Fr TEAO 208-230V Evergreen OM Furnace Motor
Catalog Number: 6303S
HP
1/3
RPM
1200,900
Voltage
208-230V
Frame
48
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Belly Band

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/3 HP
.25 kW
Rated Motor Speed
825, 1075 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
2.8 AMP
Phase
1
Poles
10
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
TEAO
Mounting
Belly Band
Number of Speeds
2 Speed
Approximate Weight
13lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.98"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
Shaft Down
Ambient Temp
60°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.5"
Shaft Length
6.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
MEXICO
Warranty
1-YEAR
