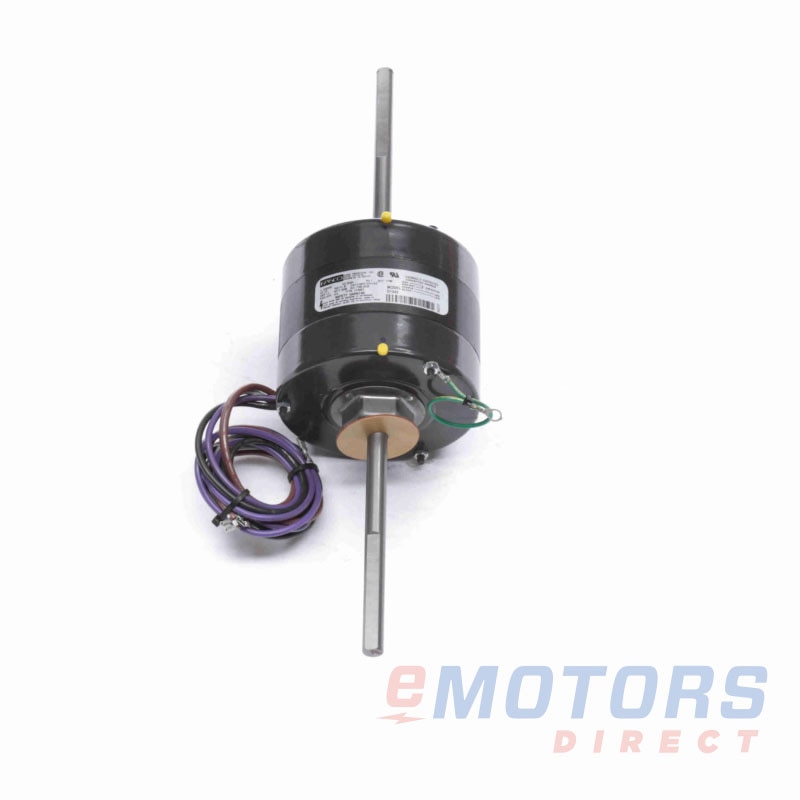

Fasco D1042A

Fasco
1/5 HP 1075 42 Fr OAO 208-230V Furnace Motor Capacitor Included: TOCF5
Catalog Number: D1042A
HP
1/5
RPM
1200
Voltage
208-230V
Frame
42
Phase
1
Enclosure
OAO
Material
-
Mounting
Hub

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/5 HP
.15 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
1.2 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
5 Mfd-370 Volts
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
42
Enclosure
OAO
Mounting
Hub
Number of Speeds
1 Speed
Approximate Weight
12lb
Double Drilled
No
Frame Material
-
C-Dimension
17.17"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CCWSE
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
SLEEVE
NDE Bearing
SLEEVE
Shaft Diameter
0.5"
Shaft Length
6.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
Warranty
1-YEAR
