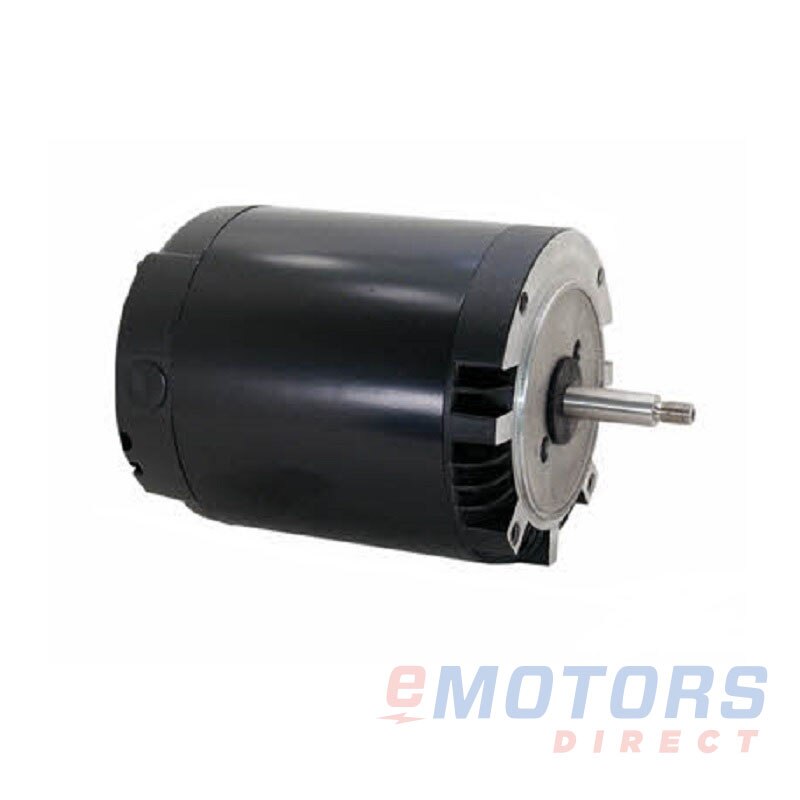

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Century H714

Century
3 HP 3450 56J ODP 575V Pump
Catalog Number: H714
HP
3
RPM
3600
Voltage
575V
Frame
56J
Phase
3
Enclosure
ODP
Material
Rolled Steel
Mounting
C-Face / Round Body

NO STOCKING INFORMATION AVAILABLE

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
3 HP
Rated Motor Speed
3450 RPM
Rated Motor Voltage
575V
Rated Motor Current
3.4 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56J
Enclosure
ODP
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
25
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.79"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
Ball
NDE Bearing
Ball
Shaft Diameter
0.625"
Shaft Length
2.44"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
-
