CENTURY FE6000F

Century

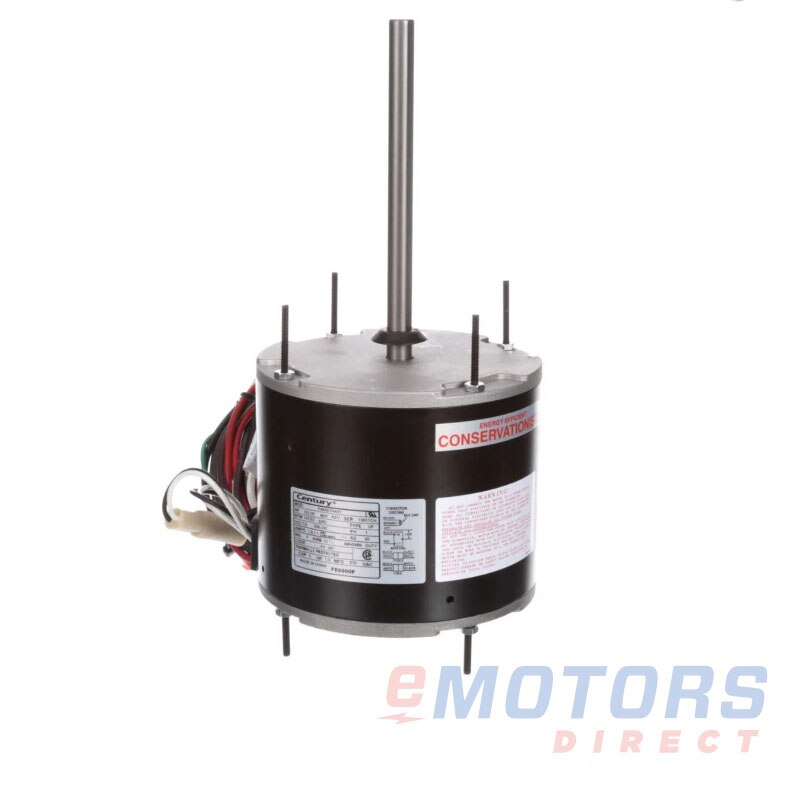

1/3 HP 1075 48 Fr TEAO 208-230V Furnace Motor
Catalog Number: FE6000F
HP
1/3
RPM
1200
Voltage
208-230V
Frame
48
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Stud

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/3 HP
.25 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
2.5,1.4 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
7.5 / 5 Mfd-370 Volts
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
TEAO
Mounting
Stud
Number of Speeds
-
Approximate Weight
16
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.12"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal / Vertical
Ambient Temp
70°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.5"
Shaft Length
6.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
INDIA
Warranty
1-YEAR
