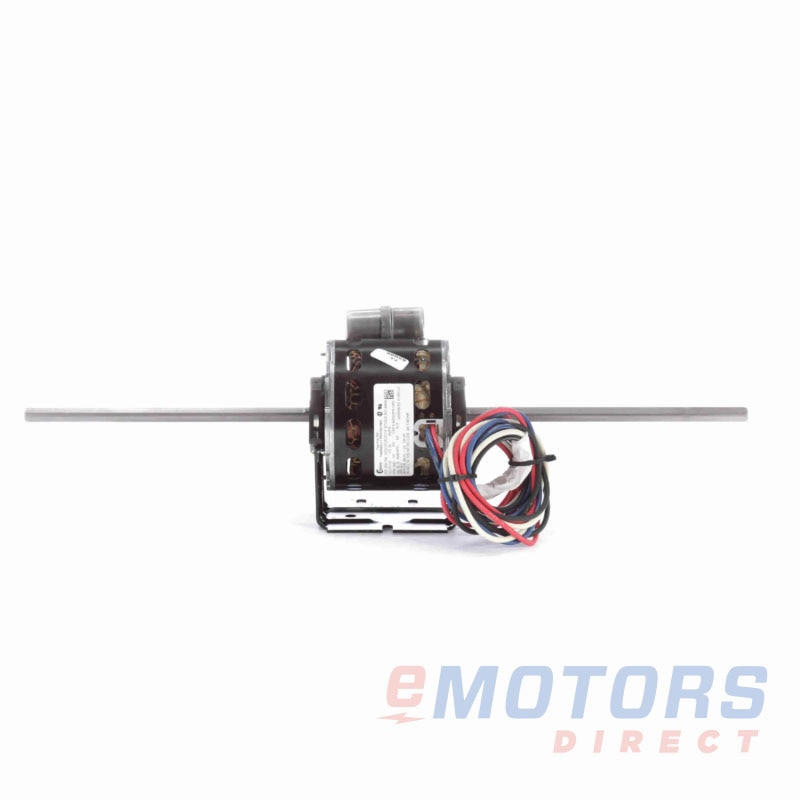

Century 945B

Century
1/8 HP 1500 42Y Fr OAO 115V Furnace Motor
Catalog Number: 945B
HP
1/8
RPM
1800
Voltage
115V
Frame
42Y
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Resilient

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/8 HP
.1 kW
Rated Motor Speed
1500 RPM
Rated Motor Voltage
115V
Rated Motor Current
1.2/0.7/0.4 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
5 Mfd-370 Volts
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
42Y
Enclosure
OAO
Mounting
Resilient
Number of Speeds
3 Speed
Approximate Weight
9lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
23.5"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CCWLE
Duty
Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
SLEEVE
NDE Bearing
SLEEVE
Shaft Diameter
0.5"
Shaft Length
9.8X.5X9.8"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
Warranty
1-YEAR
