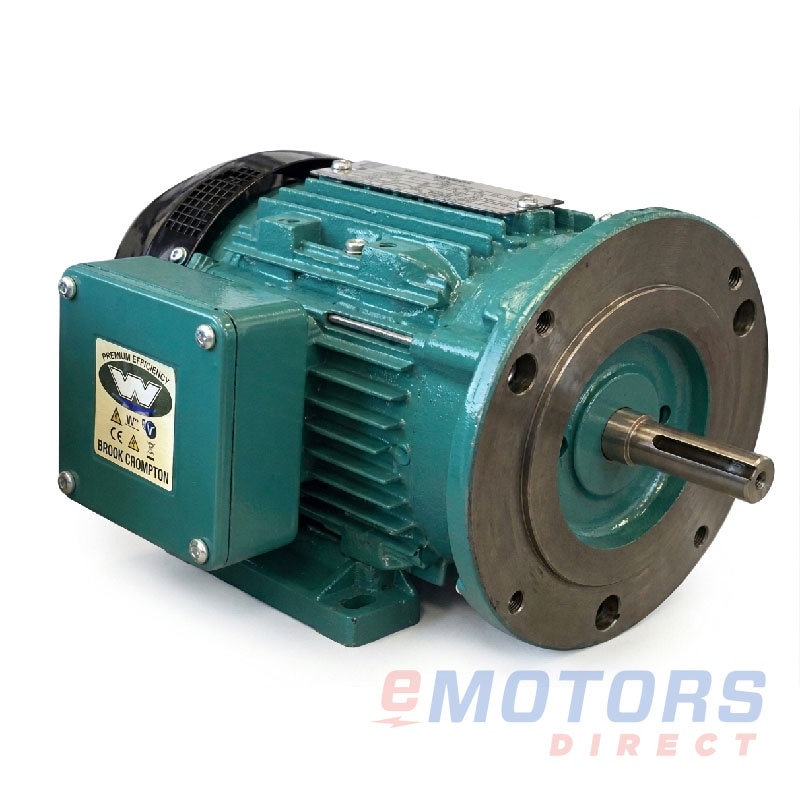

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New

Brook Crompton HO4N025-5C

Brook Crompton
25 HP 1780 RPM 575 V 284TC ODP General Purpose AC Motors
Catalog Number: HO4N025-5C
Model Number: N280TC
HP
25
RPM
1800
Voltage
575V
Frame
284TC
Phase
3
Enclosure
ODP
Material
Cast Iron
Mounting
C-Face / Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
25 HP
18.5 kW
Rated Motor Speed
1780 RPM
Rated Motor Voltage
575V
Rated Motor Current
23.84 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
92.4
Nominal Power Factor
84
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
Wye/Delta
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:1
6
Constant Torque
4:1
15
General Data
Frame
284TC
Enclosure
ODP
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
404lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
24.02"
NEMA Design
B
Degree of Protection (IP)
IP23
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal / Vertical
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
45
Temp Code
T3
Mechanical Data
DE Bearing
6312
NDE Bearing
6211
Shaft Diameter
1.875"
Shaft Length
4.625"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
