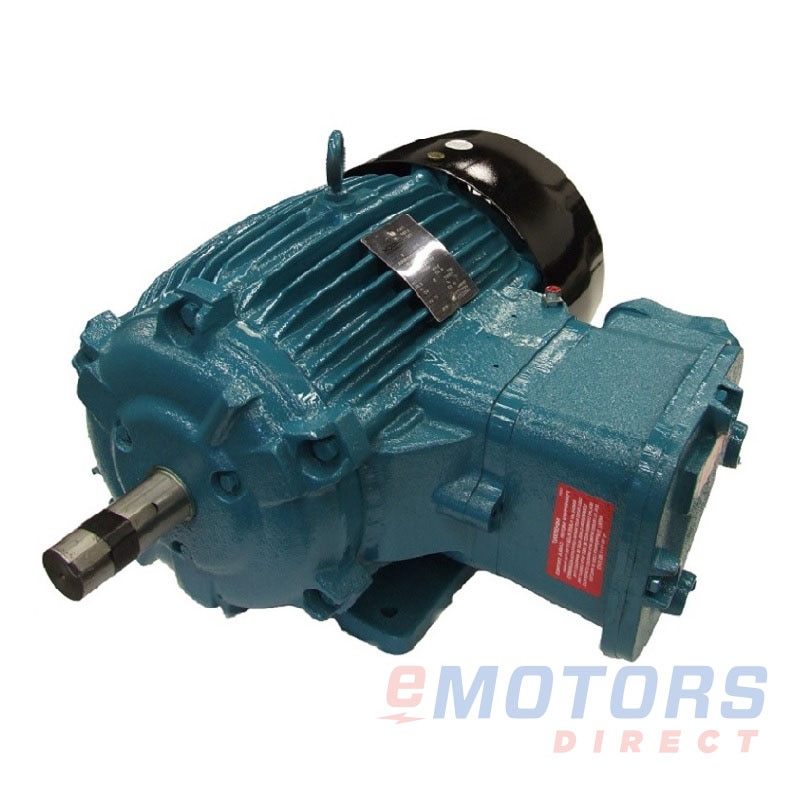

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Brook Crompton AC6M5.5-EC

Brook Crompton
5 1/2HP 1000 132S B34 TEFC 460V,575V IEC Motor
Catalog Number: AC6M5.5-EC
HP
5 1/2
RPM
1200
Voltage
460V,575V
Frame
132S
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
B34

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
5 1/2 HP
Rated Motor Speed
1000 RPM
Rated Motor Voltage
460V,575V
Rated Motor Current
-
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
83
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
132S
Enclosure
TEFC
Mounting
B34
Number of Speeds
-
Approximate Weight
212lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
452 mm
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
38 mm
Shaft Length
80 mm
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
-
