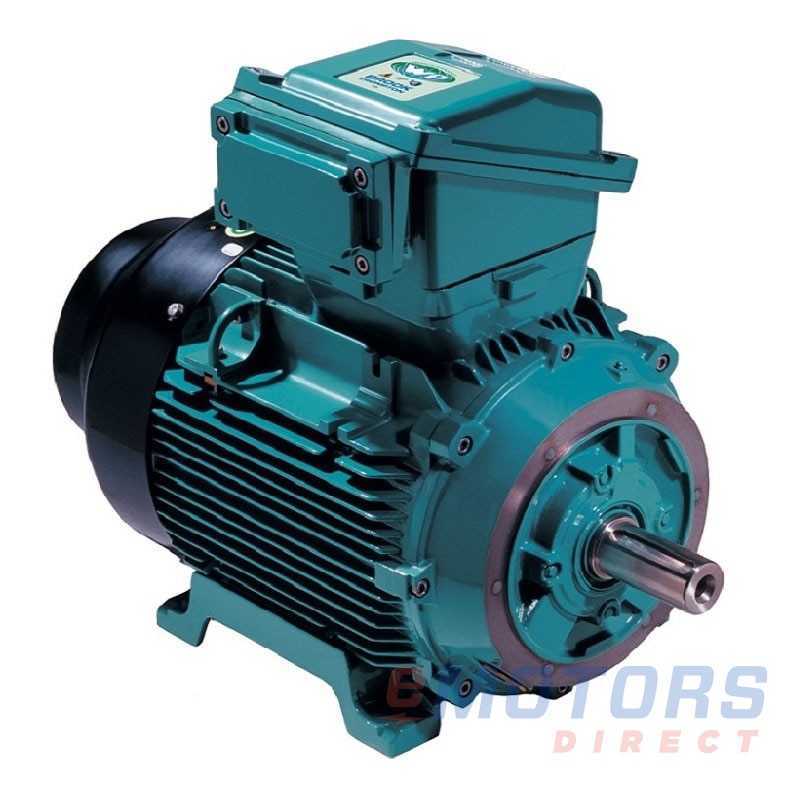

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Brook Crompton AB6M015-EC

Brook Crompton
15HP 1000 160L B35 TEFC 460V IEC Motor
Catalog Number: AB6M015-EC
HP
15
RPM
1200
Voltage
460V
Frame
160L
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
B35,B5

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
15 HP
Rated Motor Speed
1000 RPM
Rated Motor Voltage
460V
Rated Motor Current
23.10 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
87
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
160L
Enclosure
TEFC
Mounting
B35,B5
Number of Speeds
-
Approximate Weight
369lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
642 mm
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
Yes
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
42 mm
Shaft Length
110 mm
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
-
