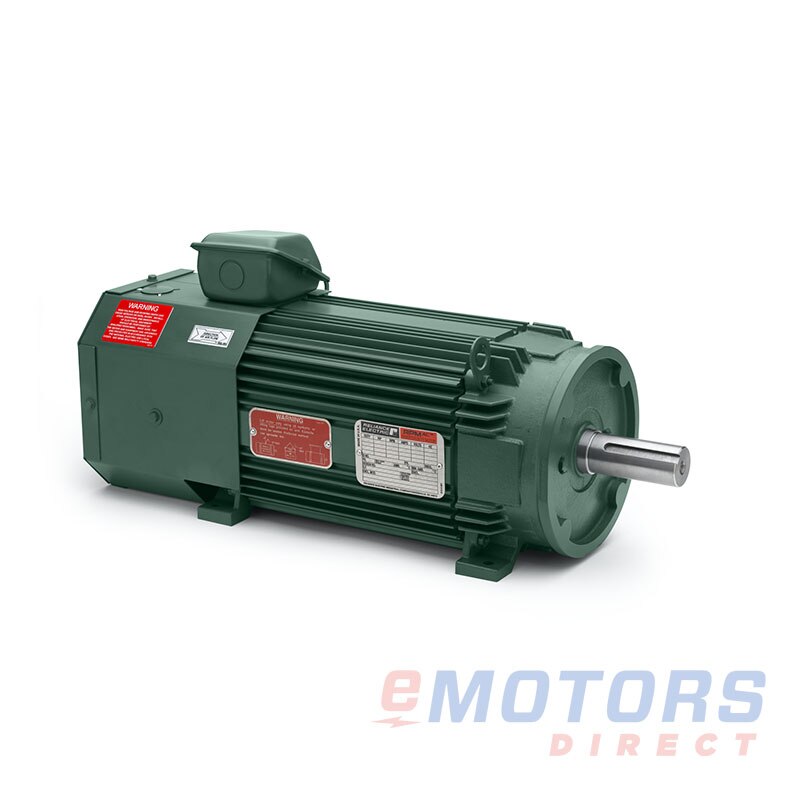

Baldor ZDPM25075-BV

Baldor · RPM AC, Vector Duty, Caged-IPM rotor, totally enclosed
75 HP 1800 2578 TEBC 460V Vector/Inverter Duty Motors
Catalog Number: ZDPM25075-BV
HP
75
RPM
1800
Voltage
460V
Frame
2578
Phase
3
Enclosure
TEBC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor RPM AC, Vector Duty motor with a Caged-IPM rotor and totally enclosed design offers high-performance capabilities for demanding industrial environments. Featuring a power-dense square laminated frame, this motor ensures a 1000:1 constant torque ratio for consistent and reliable operation. It is equipped with Class H insulation and a 40°C ambient temperature rating, providing durability and efficiency in various conditions. With a 1.0 service factor and three thermostats (one per phase) for temperature monitoring, the motor is designed to operate at peak performance. Specifically engineered for inverter use, it incorporates a Caged-IPM rotor to deliver smooth, efficient operation. A shaft grounding brush is included to mitigate bearing currents, enhancing the motor's reliability and extending its lifespan. This motor is ideal for a wide range of applications, including centrifugal pumps, fans, conveyors, extruders, cranes, hoists, and process control systems.

Availability: Factory Order

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

RPM AC, Vector Duty, Caged-IPM rotor, totally enclosed

Features

  • Power-dense square laminated frame for enhanced performance
  • Provides constant torque with a 10001 ratio
  • Class H insulation with 40°C ambient temperature rating and 1.0 service factor
  • Equipped with three thermostats, one for each phase
  • Includes speed feedback device for improved control
  • Designed for inverter use only
  • Induction and salient pole-IPM rotor for optimal performance
  • Shaft grounding brush to reduce bearing currents
  • Provisions for ABB Ability Smart Sensor mounting
  • QR code for easy access to motor data for inverter configuration

Applications

  • Centrifugal pumps and ventilation fans
  • Extrusion systems, conveyors, cranes, hoists, and winding machines
  • Web processing, industrial process control, and test equipment
Electrical Data
Rated Motor Output Power
75 HP
55.93 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
460V
Rated Motor Current
82.29 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
96.4
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
2578
Enclosure
TEBC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
540lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
36.29"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
65BC03JPP30A
NDE Bearing
50BC03JPP30A
Shaft Diameter
2.124"
Shaft Length
4.0"
Grease Type
-
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
USA
Warranty
-
