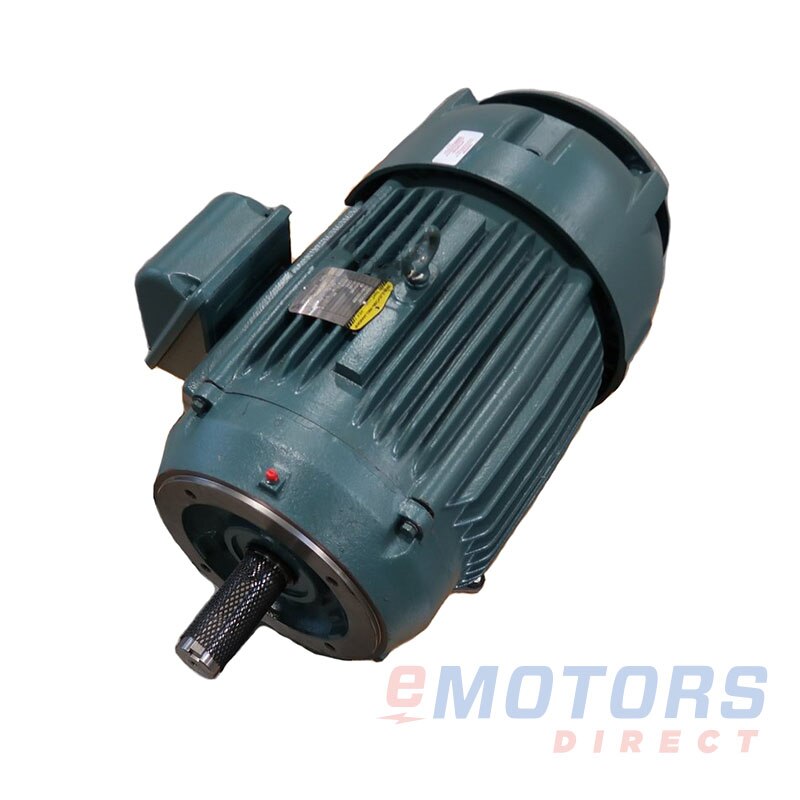

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor VECP4102T

Baldor · Severe Duty XEX, three phase, totally enclosed, C-face footless
5.0
20 HP 1180 286TC TEFC 230V|460V Severe Duty Motors
Catalog Number: VECP4102T
HP
20
RPM
1200
Voltage
208-230V,460V
Frame
286TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Round Body

Product-line overview

The Baldor Severe Duty XEX three-phase motor is built to deliver reliable, high-performance operation in the most demanding environments. Its totally enclosed design provides exceptional protection against dust, dirt, and moisture, ensuring durability even in harsh conditions. The C-Face configuration allows for easy mounting and alignment with various equipment, while the footless design offers additional flexibility for installation in space-constrained applications. Engineered for severe duty use, this motor is ideal for heavy-duty industrial applications that require consistent, robust performance under challenging conditions.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: Severe Duty XEX, three phase, totally enclosed, C-face footless (38)

VECP3580-413600460V56C $1,103.01
VECP3581T-411765460V143TC $1,206.08
VECP3581T11800208-230V, 460V143TC $1,206.08
VECP3581-411800460V56C $1,206.08
VECP358111800208-230V, 460V56C $1,206.08
VECP3584T-41 1/21800460V145TC $1,225.73
VECP3584T1 1/21800208-230V, 460V145TC $1,225.73
VECP3583T-41 1/23600460V143TC $1,244.66
VECP3587T-421800460V145TC $1,276.20
VECP3587T21800208-230V, 460V145TC $1,276.20
VECP3586T-423600460V145TC $1,302.86
VECP3582T11200208-230V, 460V145TC $1,328.09
VECP3660T-433600460V182TC $1,563.71
VECP3667T1 1/21200208-230V, 460V182TC $1,577.02
VECP3664T21200208-230V, 460V184TC $1,599.46
VECP3661T-431800460V182TC $1,638.74
VECP3661T31800208-230V, 460V182TC $1,638.74
VECP3665T-451800460V184TC $1,667.49
VECP3665T51800208-230V, 460V184TC $1,667.49
VECP3663T-453600460V184TC $1,903.79
VECP3770T-47 1/21800460V213TC $2,166.74
VECP3770T7 1/21800230V, 460V213TC $2,166.74
VECP3764T31200230V, 460V213TC $2,358.88
VECP3768T51200230V, 460V215TC $2,386.22
VECP3769T-47 1/23600460V213TC $2,549.61
VECP3774T-4101800460V215TC $2,559.43
VECP3774T101800230V, 460V215TC $2,559.43
VECP3771T-4103600460V215TC $2,700.36
VECP2333T-4151800460V254TC $3,614.04
VECP2333T151800208-230V, 460V254TC $3,614.04
VECP2276T7 1/21200208-230V, 460V254TC $3,738.85
VECP2334T-4201770460V256TC $3,831.43
VECP2334T201800208-230V, 460V256TC $3,831.43
VECP2332T101200208-230V, 460V256TC $4,679.87
VECP4103T251800208-230V, 460V284TC $5,072.56
VECP4100T151200208-230V, 460V284TC $5,517.82
VECP4102T201200208-230V, 460V286TC $7,201.43
VECP4111T251200208-230V, 460V324TC $7,579.39

Severe Duty XEX, three phase, totally enclosed, C-face footless

Features

  • Durable cast iron frame construction for long-lasting performance
  • Regreasable bearings across all frame sizes for easy maintenance
  • High-quality 304 stainless steel nameplates for corrosion resistance
  • Inverter Duty rated, ensuring compatibility with variable frequency drives
  • Division 2, Class I, Groups A, B, C, D markings on nameplate for hazardous environments
  • Division 2, Class II, Groups F & G, T4 marking on 5000 series frames
  • Insulated NDE bearing on 5000 series frames for enhanced protection
  • Class F insulation with a 1.15 service factor, operating within Class "B" temperature limits on 56 through L449T frames
  • "TR" catalog numbers come with standard roller bearings for reliability
  • IP55 rating for frames up to L449; IP66 rating for 586/7/8 frames for superior protection

Applications

  • Power generation and energy production
  • Metals manufacturing and foundries
  • Chemical, oil, and gas industries
  • Food processing and packaging
  • Pulp and paper production, as well as forest products
  • Water and wastewater management
  • Cement production, aggregate processing, and mining operations
Electrical Data
Rated Motor Output Power
20 HP
15 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
54/27 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
56
Service Factor
1.15
KVA Code
H
Nominal Efficiency
93
Nominal Power Factor
-
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
286TC
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
528lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
29.37"
NEMA Design
A
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3C
Mechanical Data
DE Bearing
6311
NDE Bearing
6311
Shaft Diameter
1.875"
Shaft Length
4.622"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
Warranty
3-Year
