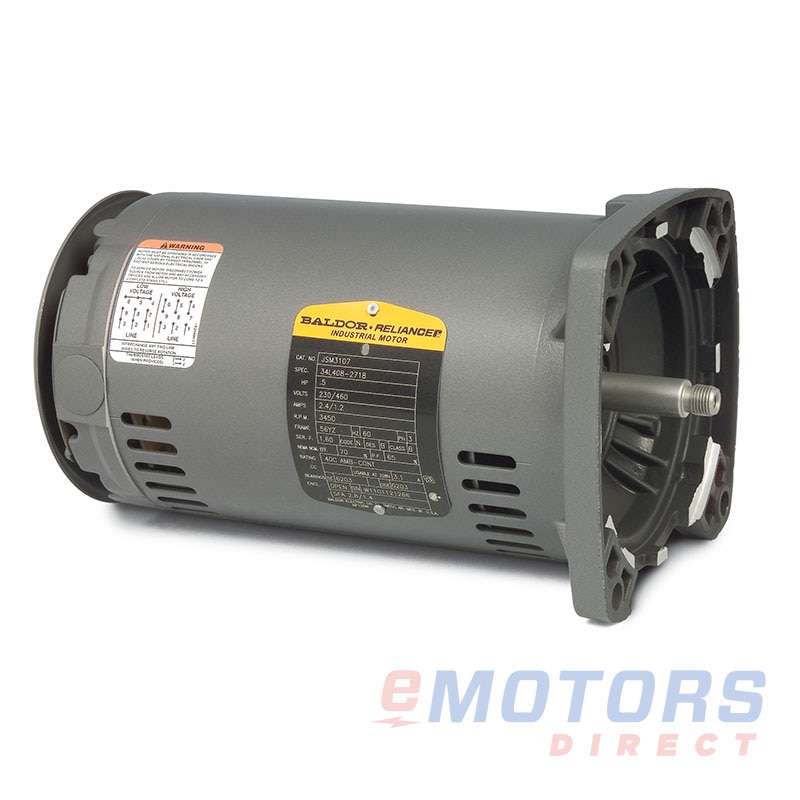

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor JSM3120

Baldor · Square flange pump, three phase, ODP
1 1/2 HP 3450 56YZ ODP 230V|460V Pump Motors
Catalog Number: JSM3120
HP
1 1/2
RPM
3600
Voltage
230V,460V
Frame
56YZ
Phase
3
Enclosure
ODP
Material
Rolled Steel
Mounting
Square Flange / Round Body

Product-line overview

The Square Flange Pump from Baldor, designed for three-phase ODP applications, features a corrosion-resistant stainless steel shaft extension and a dynamically balanced rotor that reduces noise while enhancing bearing life. Built with a heavy-gauge steel construction, this pump is engineered for durability and reliability. Additionally, it includes a safeguard drip cover to ensure further protection during operation. The pump is ideal for a variety of applications, including square flange pumps, swimming pool pumps, general-purpose pumps, commercial machinery, food and beverage processing, wastewater management, and agricultural use.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Square flange pump, three phase, ODP

Features

  • Stainless steel shaft extension resistant to corrosion
  • Rotor dynamically balanced to minimize noise and extend bearing life
  • Sturdy, heavy-duty steel construction
  • Drip cover for additional safeguard protection

Applications

  • Square flange pumps
  • Swimming pool pumps
  • General-purpose pumps
  • Commercial machinery
  • Food and beverage processing
  • Wastewater management
  • Agricultural use
Electrical Data
Rated Motor Output Power
1 1/2 HP
Rated Motor Speed
3600 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
2 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
81.5
Nominal Power Factor
89
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56YZ
Enclosure
ODP
Mounting
Square Flange / Round Body
Number of Speeds
-
Approximate Weight
31lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.77"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
-
